Video Wall Controller • User Manual
33

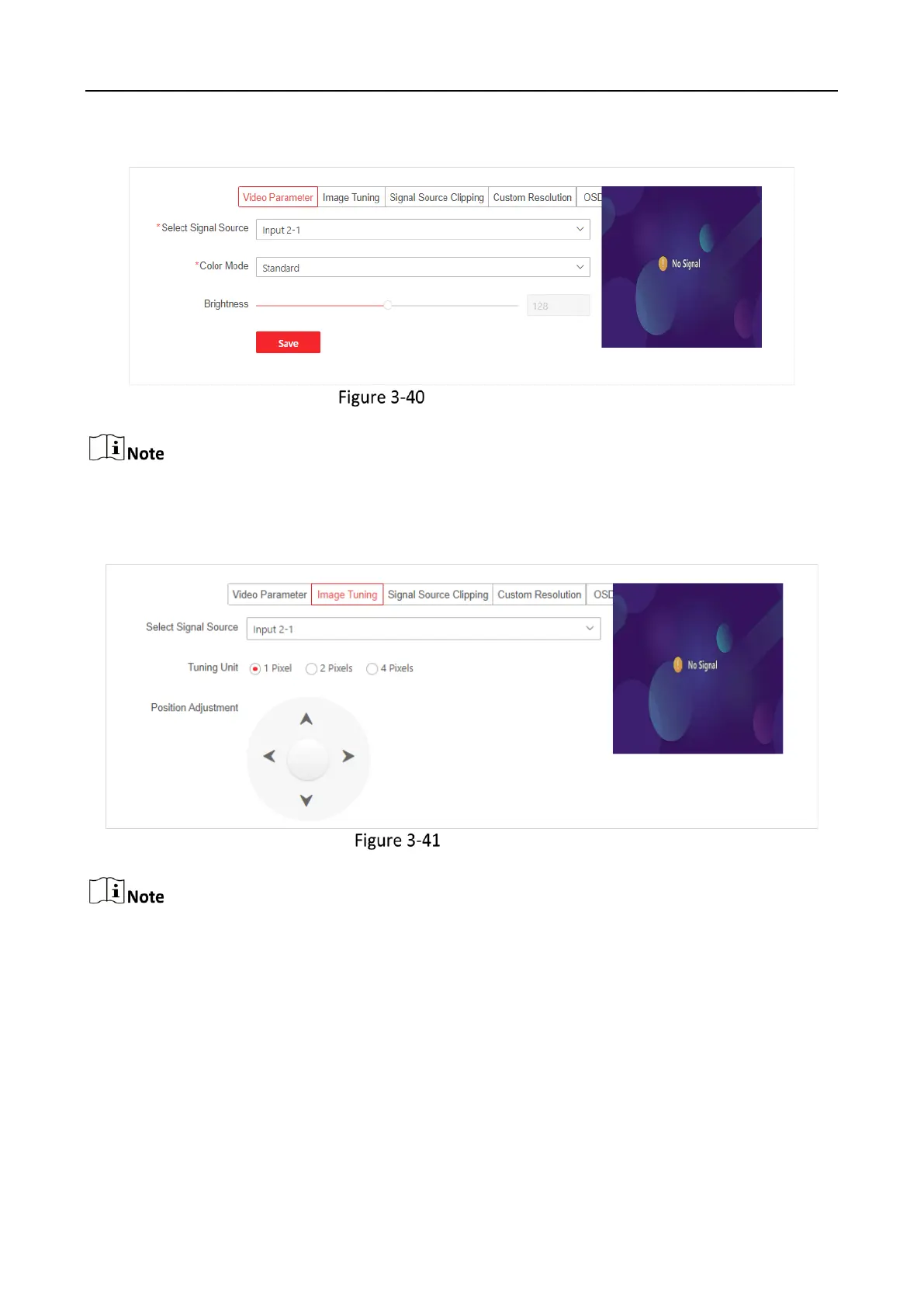

 Click Video Parameter, select a signal source and color mode, and adjust the brightness.
Set Video Parameters
If you select Custom as the color mode and select Simple Restore in the Backup and Reset page,
the video parameters will be restored to the default settings.
 Click Image Tuning, select a signal source, set the tuning unit, and adjust the position.
Set Image Tuning
Only VGA signal sources support image tuning.
 Click Signal Source Clipping, select a signal source, and set the clipping value at top, bottom,
left, and right edges.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
