Add a Joint Signal Source
 Go to Configuration → Performance Configuration to select a performance mode of the UHD
input board and the UHD output board, and click Save.
 If you select Standard Mode, a UHD input board supports 2 channels of 4K 60 fps signal
source input, and a UHD output board supports 2 channels of 4K 60 fps signal source output.
 If you select One Drag Multiple Outputs Mode for a UHD input board, only the input port 1 of
the UHD input board supports 1 channel of 4K 60 fps signal source input, and the device
supports dragging the signal source of the input port 1 to multiple video walls.
 If you select One Drag Multiple Outputs Mode for a UHD output board, only the output port
1 of the UHD output board supports 1 channel of 4K 60 fps signal source output, and the
device supports forwarding 1 signal source to multiple video walls.

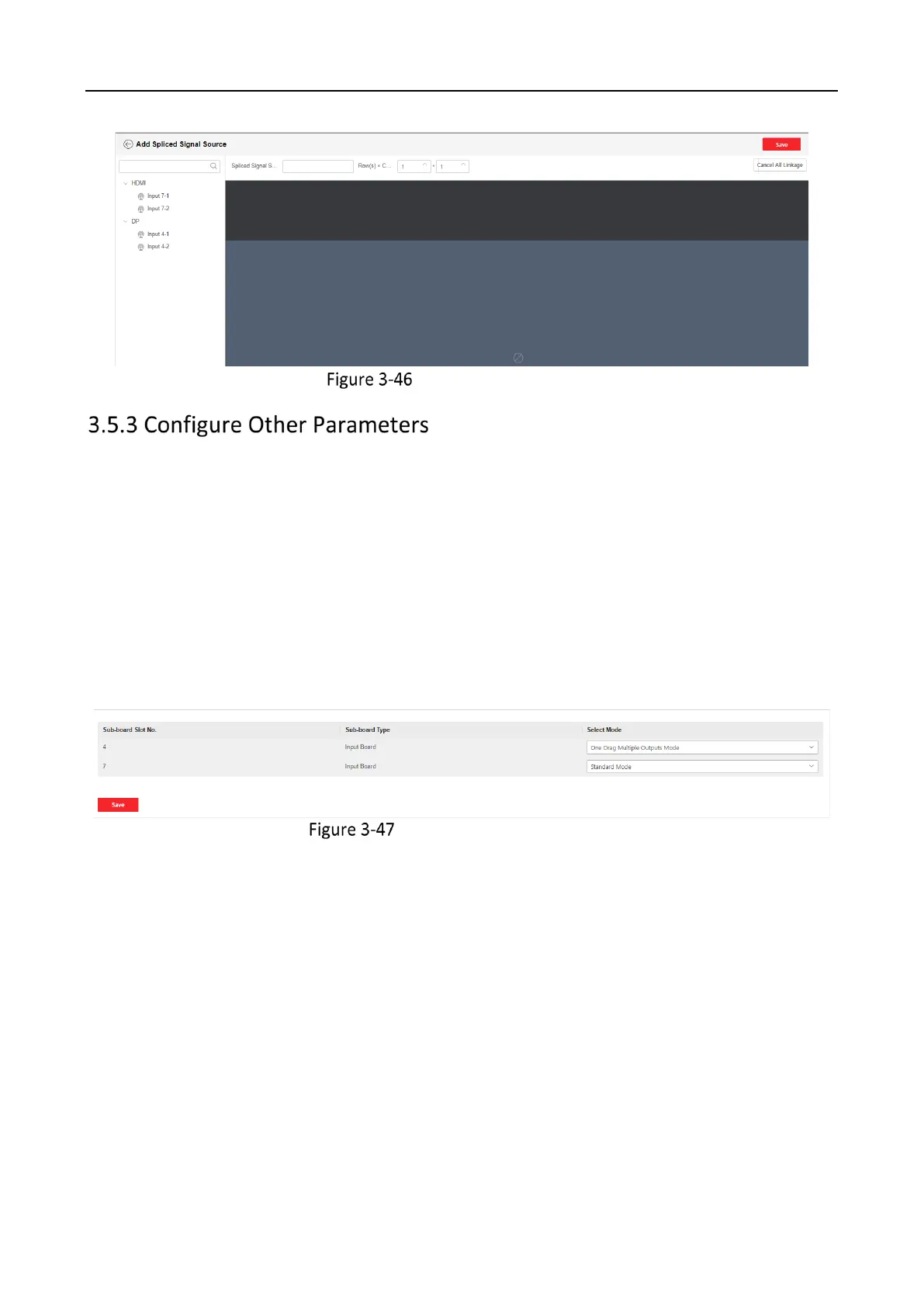

Configure Performance Mode
 Go to Configuration → Other Settings → Split image to get sub-stream, switch on Enable,
and set the window division threshold. If the window division reaches the upper limit, the
device will automatically use sub-stream to get the images. In low bandwidth networks, you
can use sub-stream to get relatively smooth images with a small bandwidth footprint.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
