Video Wall Controller • User Manual
21
 Enter the URL address of the signal source. The format of URL address should be RTSP://IP
address: 554/h264/ch1/main/av_stream/?username=user
name?password=password?linkmode=TCP.
 Select an added group or click Add Group to create a new group.

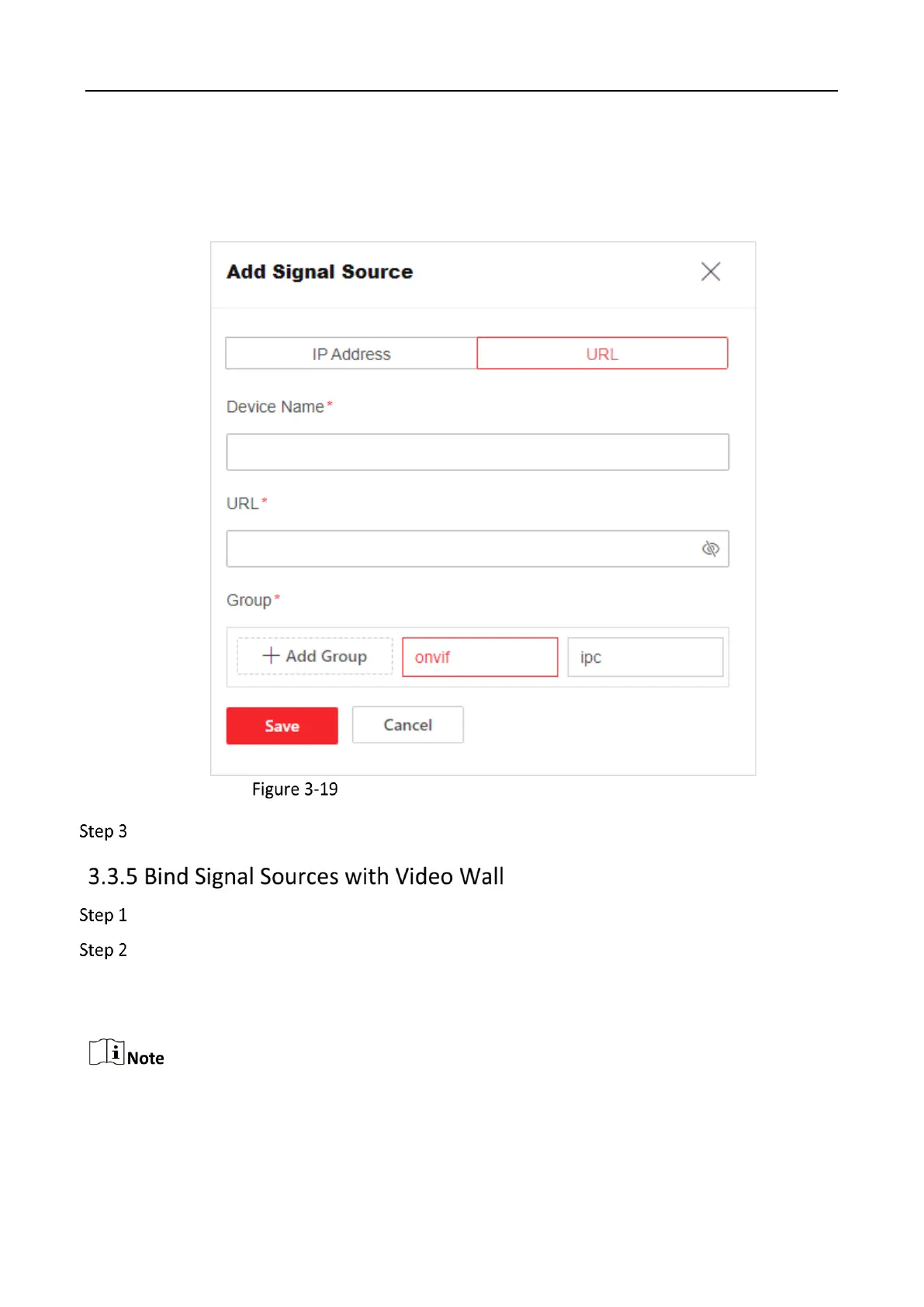

Add a Network Signal Source via URL Address
Click Save.
Go to Video Wall Operation and then select a video wall.
Take either of the following methods to bind signal sources with the video wall:
 Drag a local signal source or network signal source on the left to the video wall on the right.
Repeat the operation to bind multiple signal sources to the video wall.
Before dragging a network signal source to the video wall, make sure the decoding board is in the
device.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
