HIKVISION DS-C30S-S23 User Manual

Video Wall Controller • User Manual
42

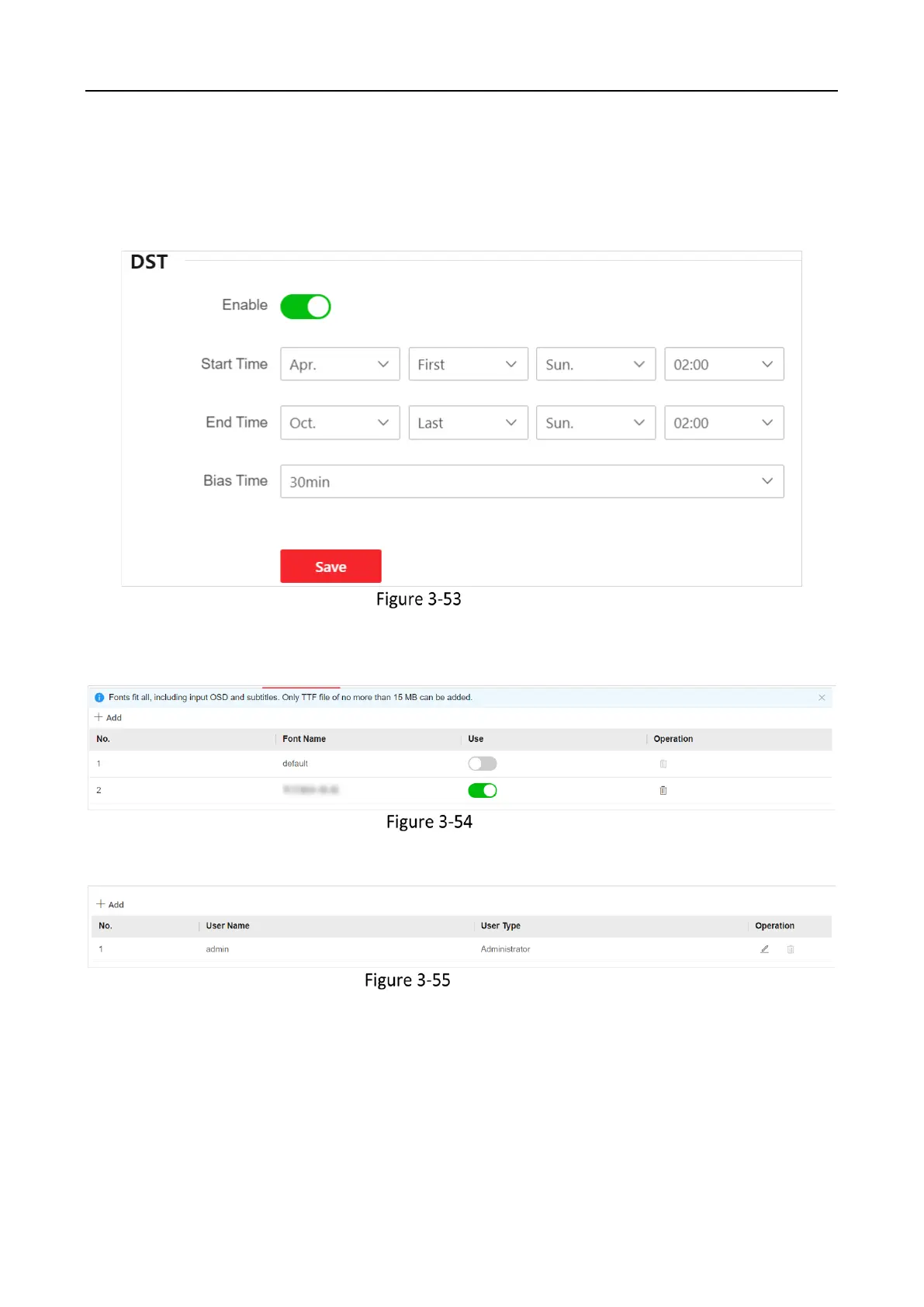

 If you enable DST (Daylight Saving Time), the device clock is set forward a specified time
during the summer months.
− Set the start time and end time.
− Set the bias time.
Enable DST
 Go to System Settings → Font Settings to set the font of OSDs and subtitles. You can use the
default font, or click Add to import a new font.
Set Font
 Go to User Management → User Management to manage users.
Manage Users
 Click Add and enter the related user information.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
