Access Control Terminal·User Manual
6

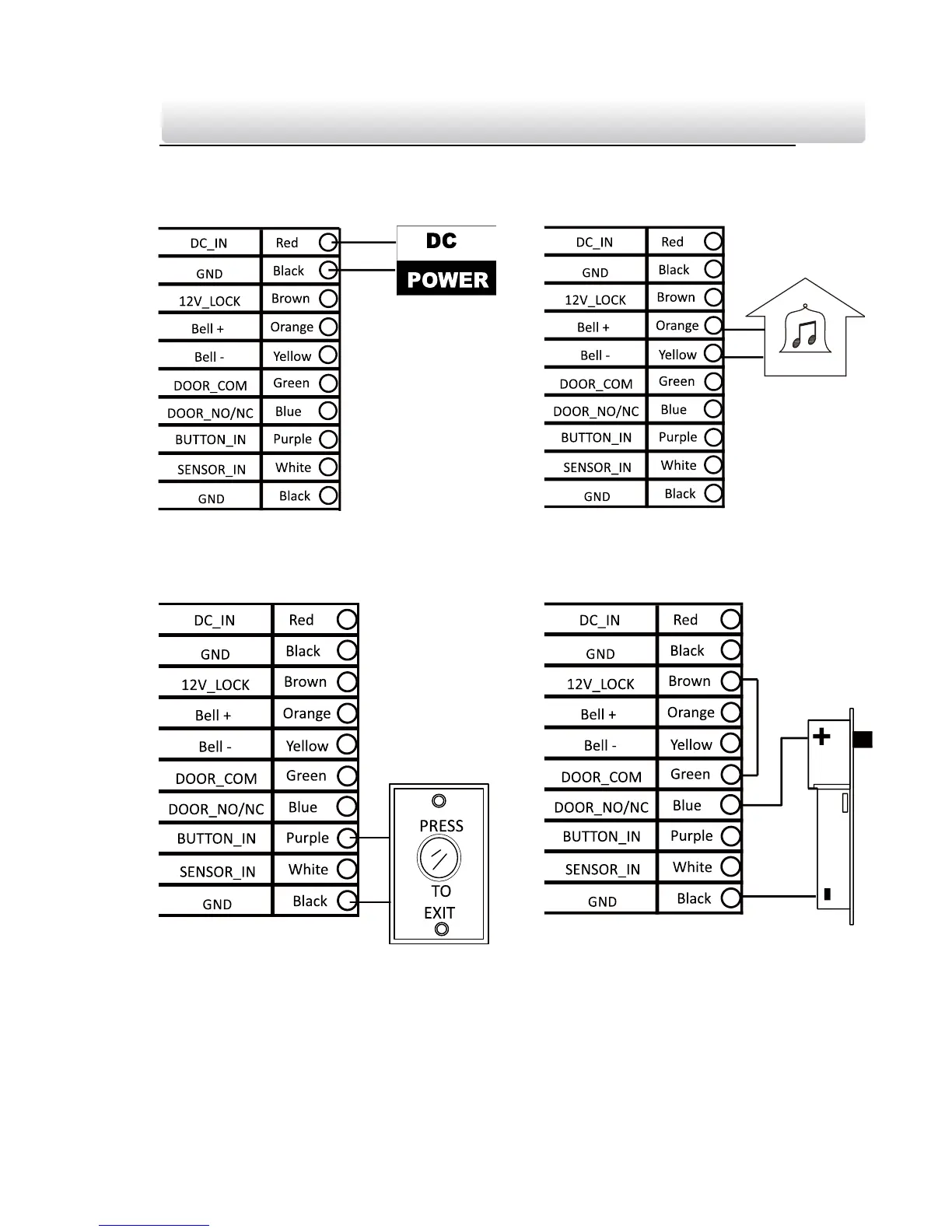

3.2 External Device Wiring
Power Supply Wiring
Doorbell Wiring
Figure 3-1 Power Supply Connection
Diagram
Figure 3-2 Doorbell Wiring Diagram
Door Button Wiring
Door Lock Wiring
Figure 3-3 Door Button Wiring Diagram
Figure 3-4 Door Lock Wiring
Diagram
