HIKVISION DS-KD8003-IME2 Configuration Guide

3) Select network interface as interface type. Enter the elevator controller's IP
address, port No., user name, and password.
4) Enable the elevator control.
Note
•
Up to 4 elevator controllers can be connected to one door staon.
•
Up to 10 negave oors can be added.
•
Make sure the interface types of elevator controllers, which are connected
to the same door staon, are consistent.
1.6.5 I/O Input and Output
Steps
1.
Click I/O Input and Output to enter the I/O input and output sengs page.

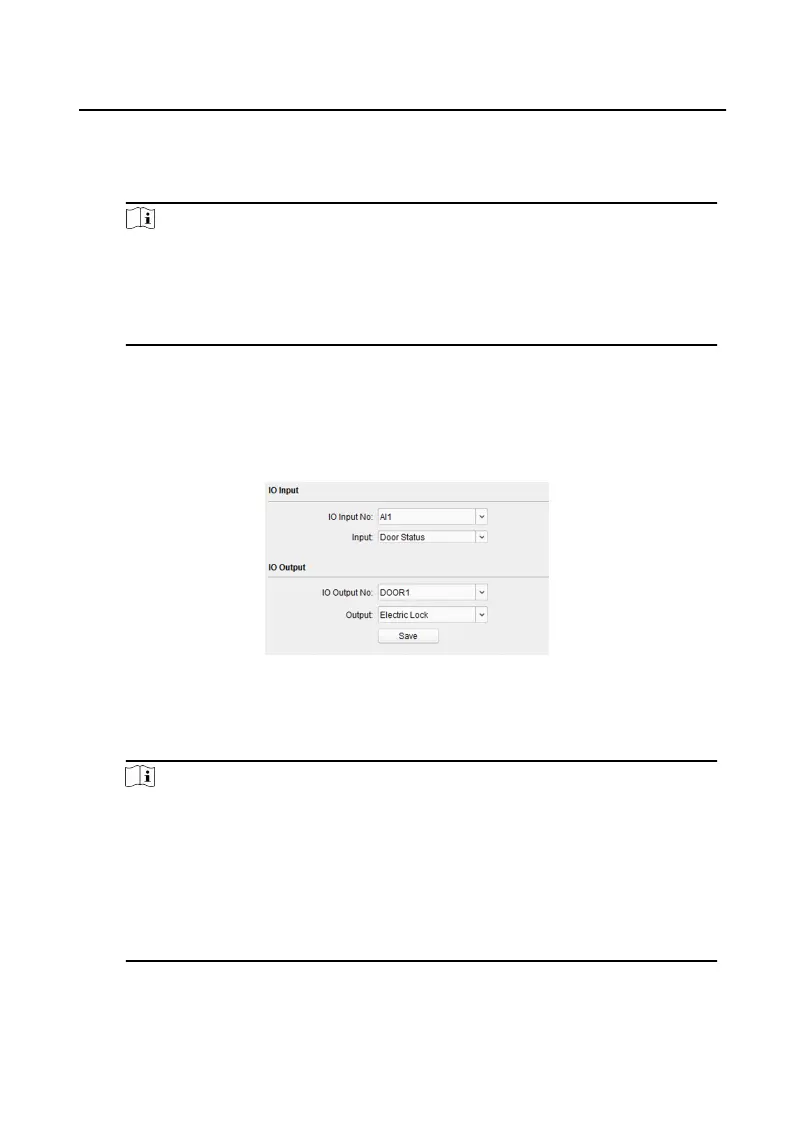

Figure 1-17 I/O Input and Output
2.
Select I/O input No., input mode, output No., and output mode.
3.
Click Save to enable the sengs.
Note
•
For door staon, there are 4 I/O input terminals. By default, Terminal 1 and 2
correspond to Door Status. Terminal 3 and 4 correspond to interfaces of
Door Switch.
•
For door staon, there are 2 I/O Output Terminals. Terminal 1 and 2
correspond to DOOR interfaces (NO1/COM/NC1; NO2/COM/NC2) of door
staon. Door 1 is enabled by default. You can enable/disable IO Out
according to needs.
1.6.6 Volume Input and Output
Module Door Staon Conguraon Guide
13

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
