1#
6#
15#
32#
Controller

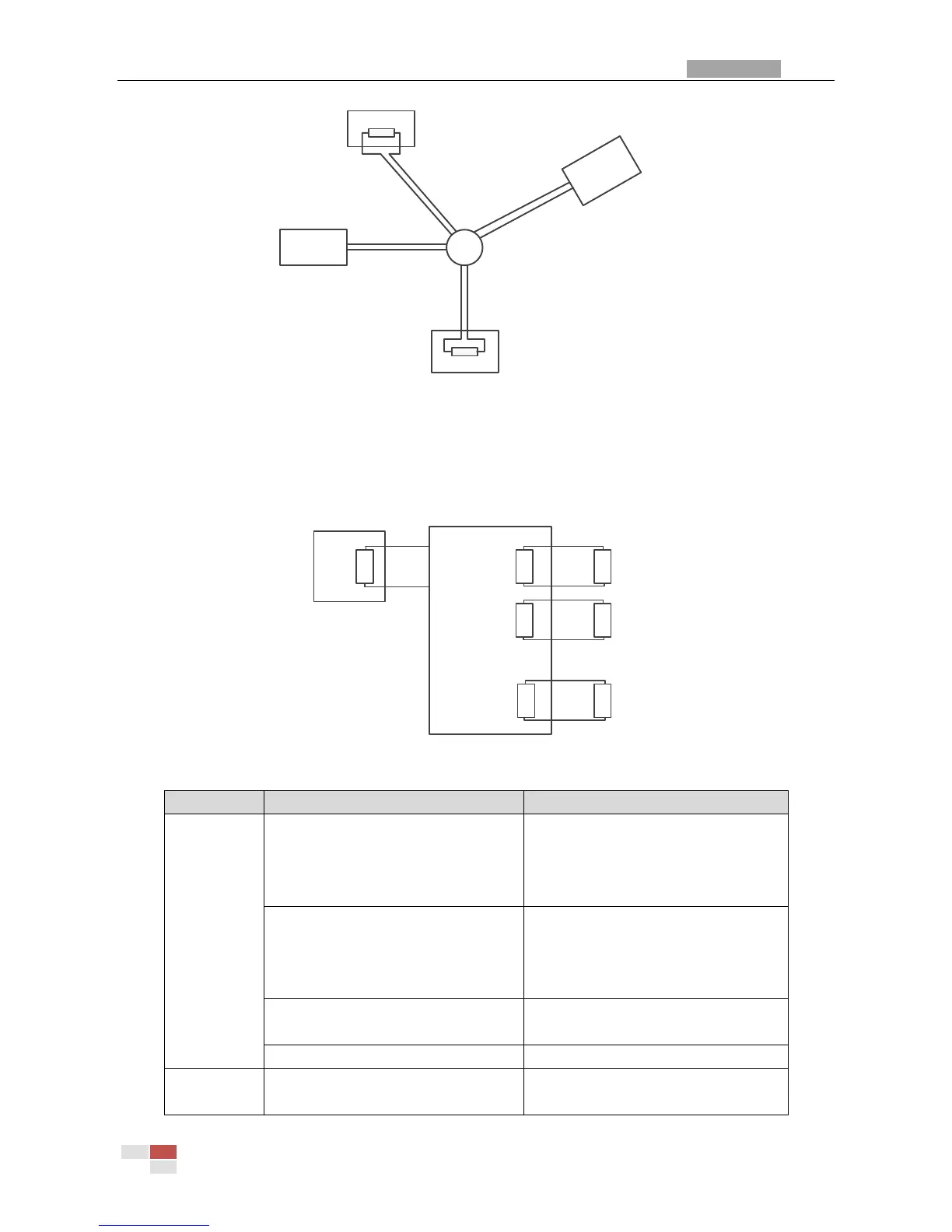

Figure A-9 Star Shape Connection
For such case, the best way is adding a RS485 distributor. This product can effectively change the
star-shape connection to which satisfies the requirement of RS485 industry standard, in order to
avoid those problems and improve the communication reliability. Refer to the following figure.
A+
B-
RS485 Distributor
120Ω
1#
2#
16#
120Ω
120Ω
Figure A-10 RS485 Distributor
 Troubleshooting of RS485 communication
Problem
Possible Reasons
To Solve the Problem
The speed
dome does
the
self-test
action but
cannot be
controlled
remotely.
1. The address or baudrate of the
speed dome does not match with
those of remote control device.
1. Adjust the address and
baudrate of the remote control
device to match with those of the
speed dome.
2. The wire RS485+ connects to
the interface RS485- and wire
RS485- connects to the interface
RS485+.
2. Connect the wire RS485+ to the
interface RS485+ and wire RS485-
to the interface RS485-.
3. The RS485 wire is
disconnected.
3. Reconnect the RS485 wire
tightly.
4. RS485 wire is broken.
4. Change a RS485 wire.
The speed
dome can
1. The connection is loose.
1. Reconnect the RS485 wire
tightly.

HIKVISION Network Speed Dome Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP67
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Automatic gain control	Yes
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Pan speed	210 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Lamp, Manual, Outdoor
Pan preset speed	280 °/sec
Tilt angle range	-20 - 90 °
Tilt preset speed	250 °/sec
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
Preset programs quantity	300
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	36 x
Focal length range	- mm
Detect distance (tele)	1.5 m
Detect distance (wide)	0.01 m
Maximum aperture number	4.5
Minimum aperture number	1.5
Type	IP security camera
PTZ modes	4 Pattern, Auto Scan
PTZ protocols	Pelco-P/D
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Behavior analysis	Intrusion detection, Line crossing detection
LED type	IR
Night vision distance	200 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Number of simultaneous users	20 user(s)
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	256 GB
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	60 W
Power consumption (Power over Ethernet (PoE))	50 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	410 mm
Weight	8000 g
Diameter	266.6 mm
