6.2 CPR Cable Adjustment
Chapter 6: General Procedures
Page 6 - 12 Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed,
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)

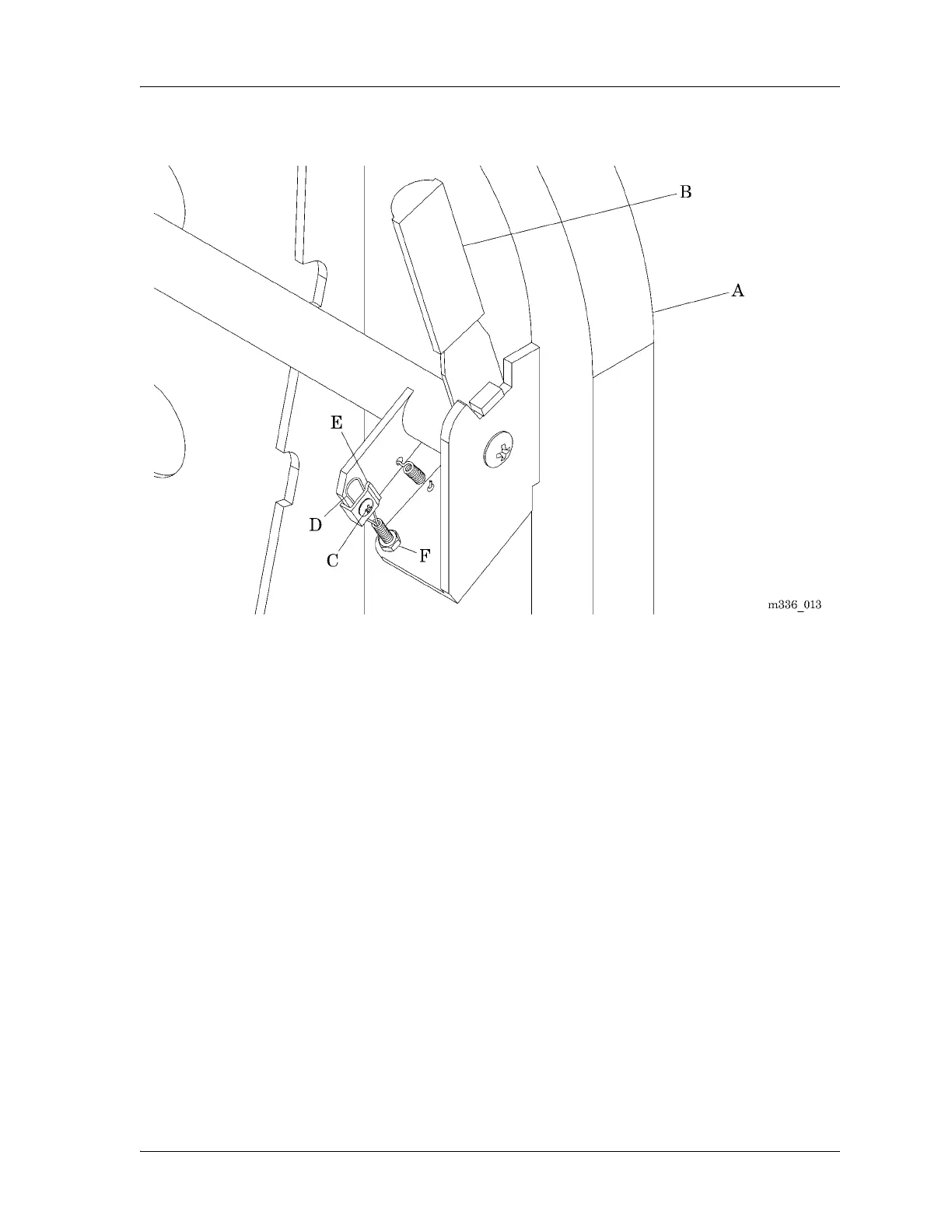

Figure 6-2. CPR Adjustment
2. If the head section (A) lowers too quickly when the CPR handle (B) is
operated, do as follows:
a. Loosen the screw (C) that attaches the CPR wire (D) to the bracket (E).
b. Allow a small part of the CPR wire (D) to go into the cable (F).
c. Hold the CPR wire (D) tightly, tighten the screw (C) to attach the wire
(D) to the bracket (E).
While the CPR wire is held tightly, the head section will lower slowly.
d. Operate the CPR handle (B) to make sure the head section (A) lowers
at the correct rate.
e. If necessary repeat step 1 or step 2 until the head section (A) lowers at
the correct speed.
3. Do the “Function Checks” on page 2-2.
