Symbols on the Control Unit

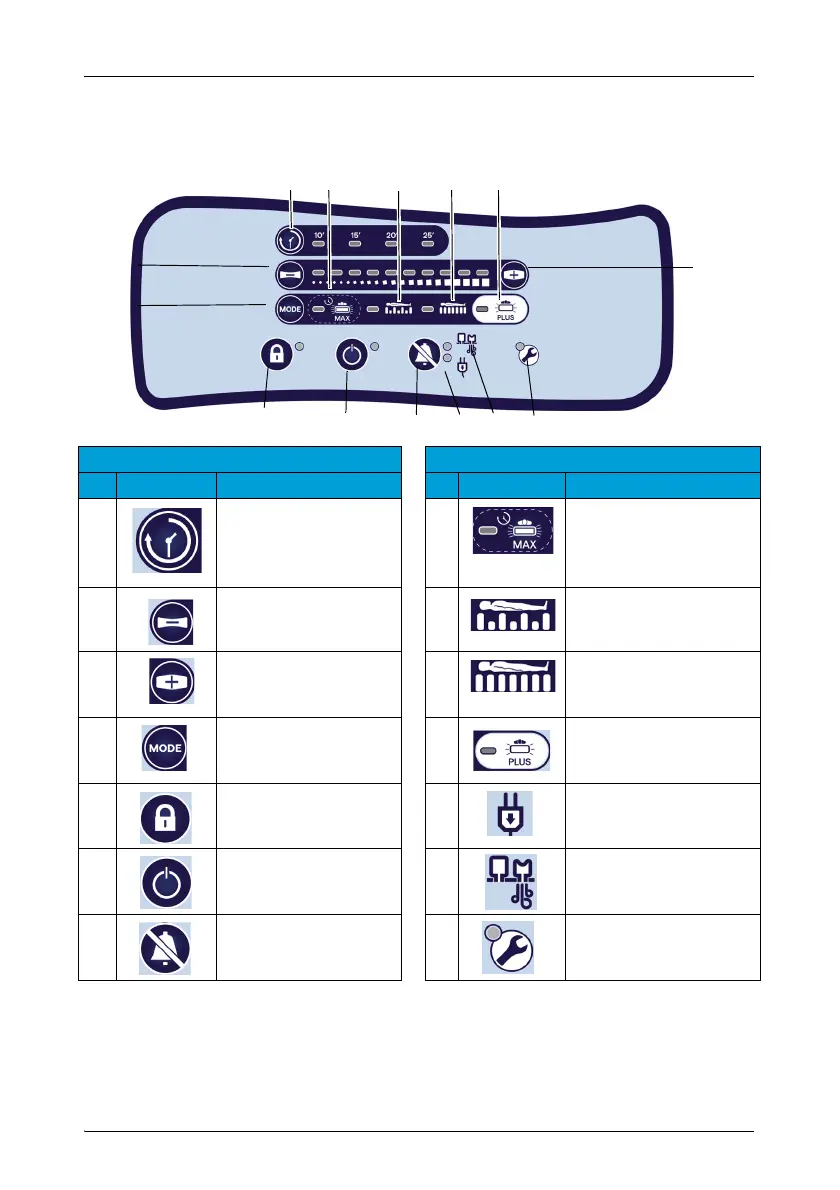

Buttons and Indicator Lights
Buttons Indicator Lights
Symbol Description Symbol Description
A Alternating Pressure
Cycles (every
5 minutes)
1 Maximum Inflation
(P-max)
BComfort Setting:
Reduce the Pressure
2Alternating
Low Pressure Mode
CComfort Setting:
Increase
the Pressure
3Continuous
Low Pressure Mode
D Selection
of the Operating
Mode
4 Mattress Firming
E Security Lock 5 Mains Power Fault
Indicator
F On/Off 6 Low Pressure
Indicator
GAudible Indicator
Silence
7 Malfunction Indicator
