F3 DIO 16/8 01
3 Product Description
HI 800 177 E Rev. 2.00
Page 21 of 60
3.4
Structure
This chapter describe
s the layout and function of
the remote I/Os, and their communication via
safe
ethernet
.
DO
DO
S+
S+
S+
S+
S-
S-
S-
S-
TO

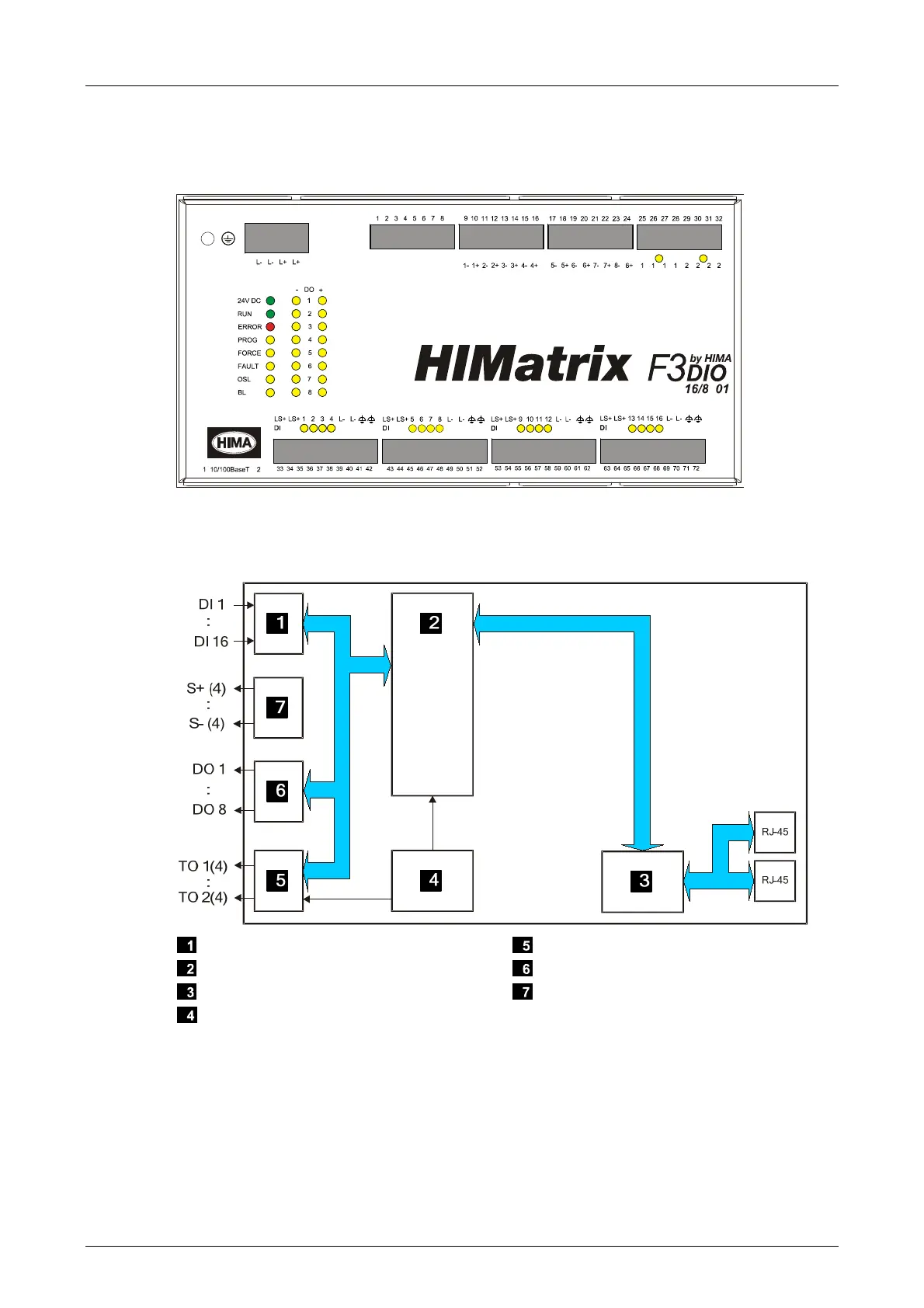

Figure 7:
Front View
16 Digital Inputs
Safety-Related Processor System (CPU)
Switch
Watchdog
2 Pulsed outputs
8 Digital Outputs, 2-Pole (DO+, DO
-)
Ground for Digital Outputs
Figure 8:
Block Diagram
