4 Start-up X-AI 32 01
Page 42 of 58 HI 801 021 E Rev. 4.00
When redundantly wired as specified in Figure 15 and Figure 16, the modules are inserted
in the base plate next to each other and on a common connector board. Connector boards
X-CB 008 02 and X-CB 019 02 (with screw terminals) or X-CB 008 04 and X-CB 019 04
(with cable plug) can be used.
X-AI 32 01
Connector Board
AI-
S-
S+
AI+
AI_R+
X-AI 32 01
AI-
S-
S+
AI+
AI_R+
1
2
1
2
Transmitter Supply Analog Input

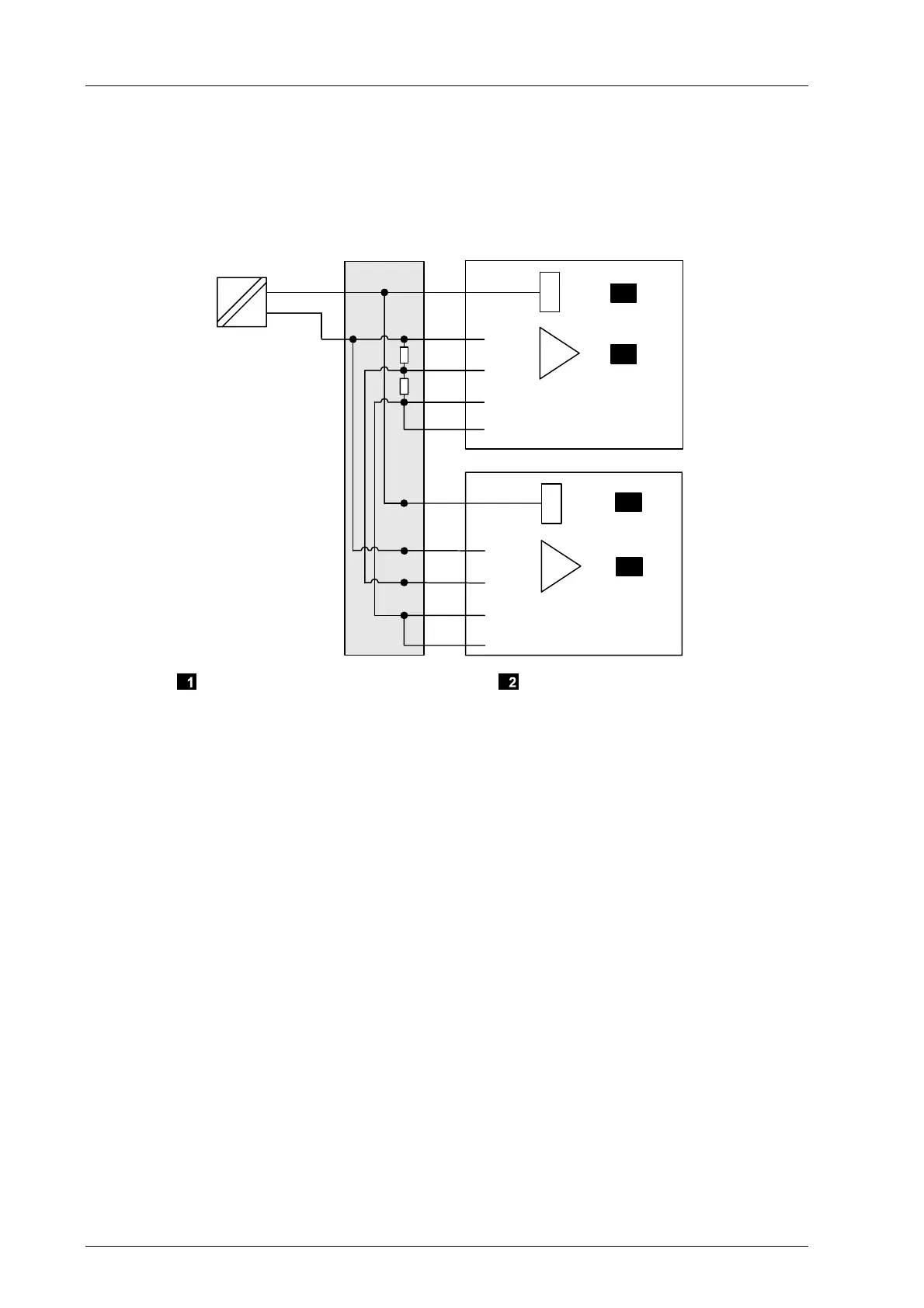

Figure 15: Redundant Connection of a Passive Two-Wire Transmitter
