Hioki PW3336 - Connecting a TYPE1 Current Sensor; Connecting a TYPE2 Current Sensor

3.9 Using a Current Sensor
104

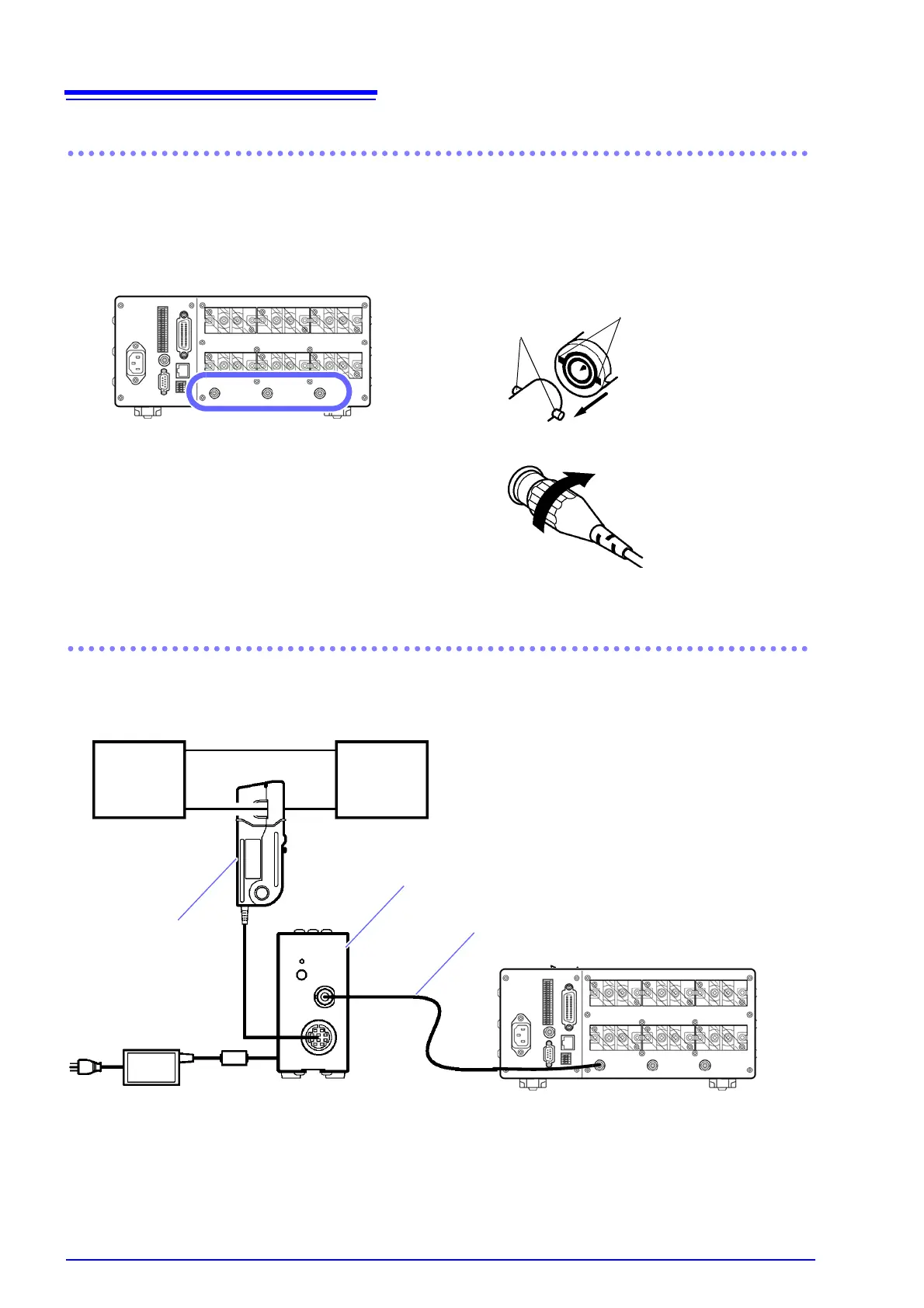

Connecting a TYPE1 current sensor
Connect the current sensor directly to one of the instrument’s external current sensor input terminals.
Connecting a TYPE2 current sensor
Use the 9555-10 Sensor Unit and L9217 Connection Cord to input current sensor output to the instrument.
1
Connect the clamp sensor’s BNC connector to a current input terminal.
Align the groove on the BNC connector with the connector guides on the instrument
and insert.
2
Turn clockwise to lock.
Connector groove on
the clamp sensor
Connector guides on the
instrument’s current input
terminals
Lock
To remove the connector, turn it counterclock-
wise to disengage the lock and then pull out.
Power supply Load
(Example connection)
L9217 Connection cord
Current sensor
9555-10 Sensor unit
1
Verify that the instrument’s power cord as well as the power cord for the AC adapter
that came with the 9555-10 are unplugged.
