Hioki PW3336 - Setting the Rectifier for Analog Output

3.8 Using D/A Output
93

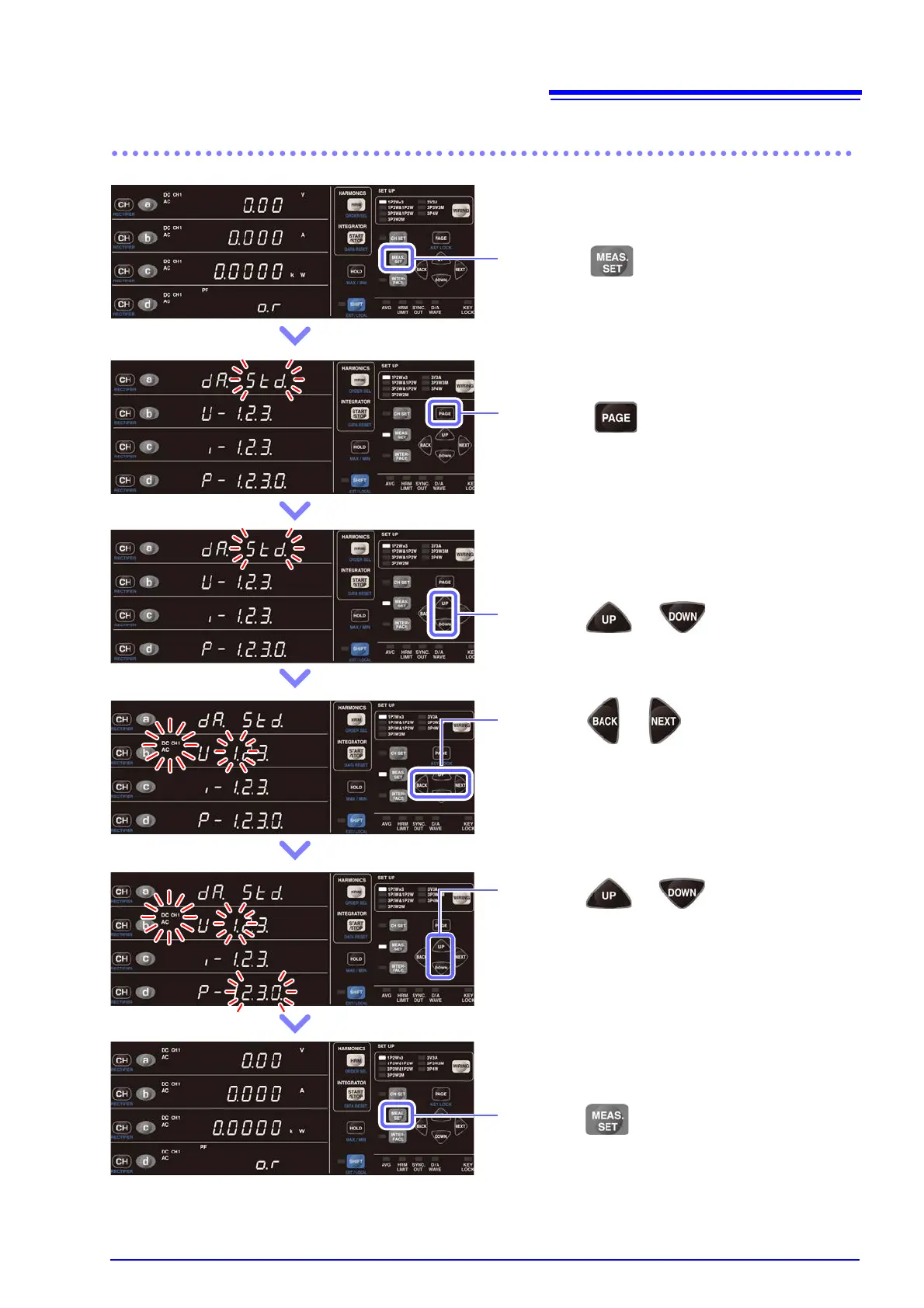

Setting the rectifier for analog output
1 Press .
2 Press to display the settings
screen shown to the left.
3 Press or to select Std.
4 Press or to select the channel
for which you wish to set the rectifier.
Settings: U1 → 2 → 3 → I1 → 2 → 3 → P1 → 2
→ 3 → 0…
(U: voltage; I: current; P: power; 1, 2, 3: chan-
nel number; 0: sum)
5 Press or to set the rectifier.
The rectifier lamp will light up to reflect the set-
ting location.
Settings: AC+DC → AC+DC Umn → DC →
AC → FND…
6 Press to exit the settings.
The instrument will return to the normal mea-
surement state.
