2.1 Installation and Connection Procedures
27
Please read "Operating Precautions" (p.5) carefully before installing or connecting
the instrument.
Measurement
Preparations Chapter 2
2.1 Installation and Connection Procedures
Install the instrument
(p.5)
1
After use, deactivate power
to the measurement lines,
disconnect cables, and
turn off the instrument.
Connect the connection
cables to the voltage input
terminals and current input
terminals. (p.28)
3
Connect the power cord.
(p.34)
5
Turn the power on
(p.35)
6
Activate power to the
measurement lines.
7
Remove the safety
covers.
2
Reattach the safety
covers.
4
1
2
3
4
5
6
7

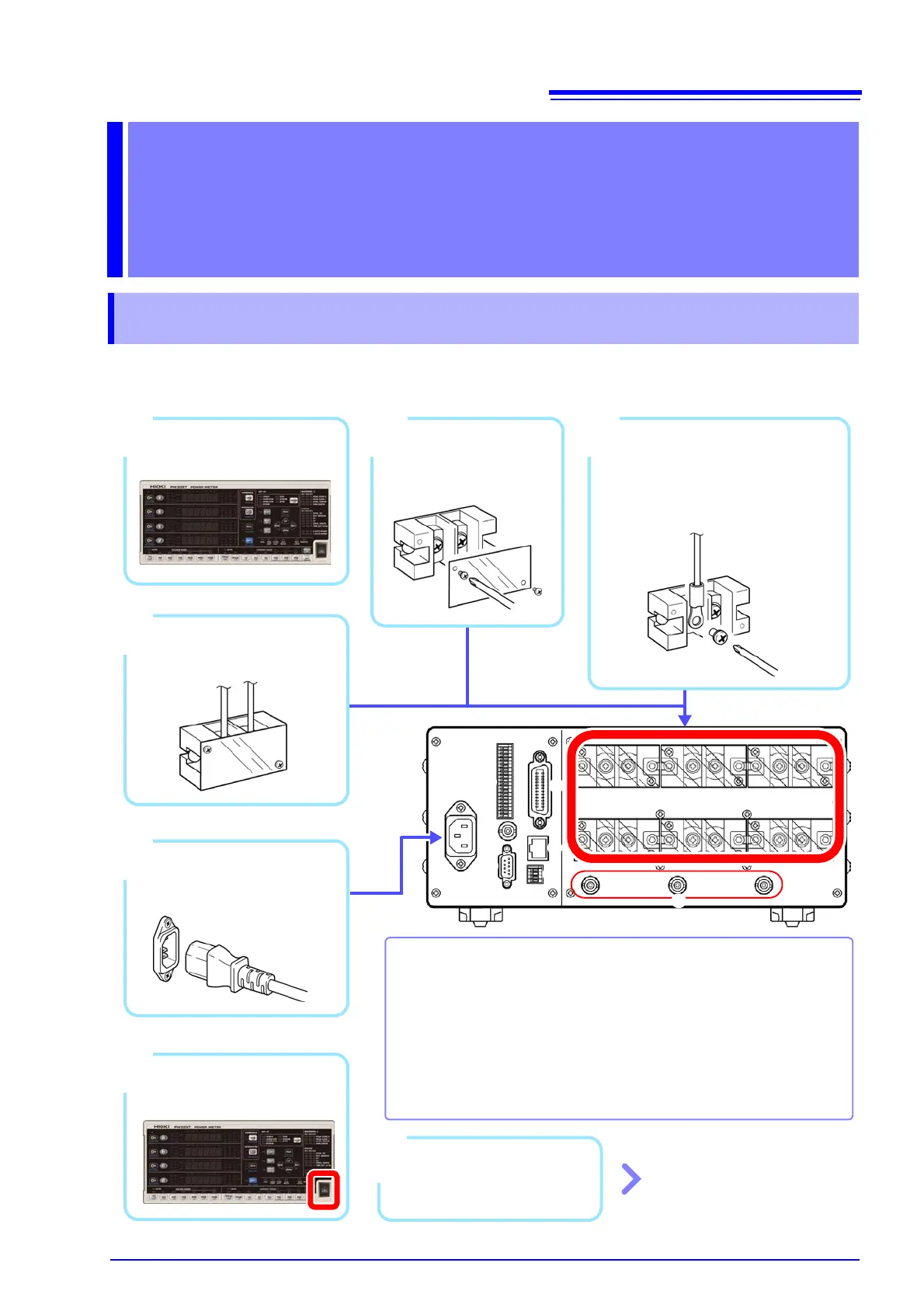

Configure the following settings as desired:
1: When you wish to use D/A output (p.88)
2: When you wish to perform synchronized measurement (p.81)
3: When you wish to use the RS-232C interface (p.118)
4: When you wish to use the GP-IB interface (p.131)
5: When you wish to use the LAN interface (p.122)
6: When you wish to use external control (p.85)
7: When you wish to use an external current sensor (p.102)
