3.6 Performing Synchronized Measurement with Multiple Instruments
(Multiple-instrument Synchronized Measurement)
83
Configuring synchronized measurement
You can set the master and slave by configuring the synchronized control input and output settings.
OFF
Turns off the synchronized control function.
The EXT SYNC terminal setting is [IN], but input signals are ignored. This is the default state. External
synchronized operation is not performed. The
SYNC.OUT lamp is off.
IN
Sets the instrument as the slave.
The EXT SYNC terminal is set to [IN], and dedicated synchronization signals can be input. Synchroniza-
tion signals will be received from the BNC terminal, and processing will be performed accordingly. When
synchronization signals are received from an external source, the
SYNC.OUT lamp will flash.
OUT
Sets the instrument as the master.
The EXT SYNC terminal will be set to [OUT], and dedicated synchronization signals will be output. Syn-
chronization signals will be output from the BNC terminal. The
SYNC.OUT lamp will light up.

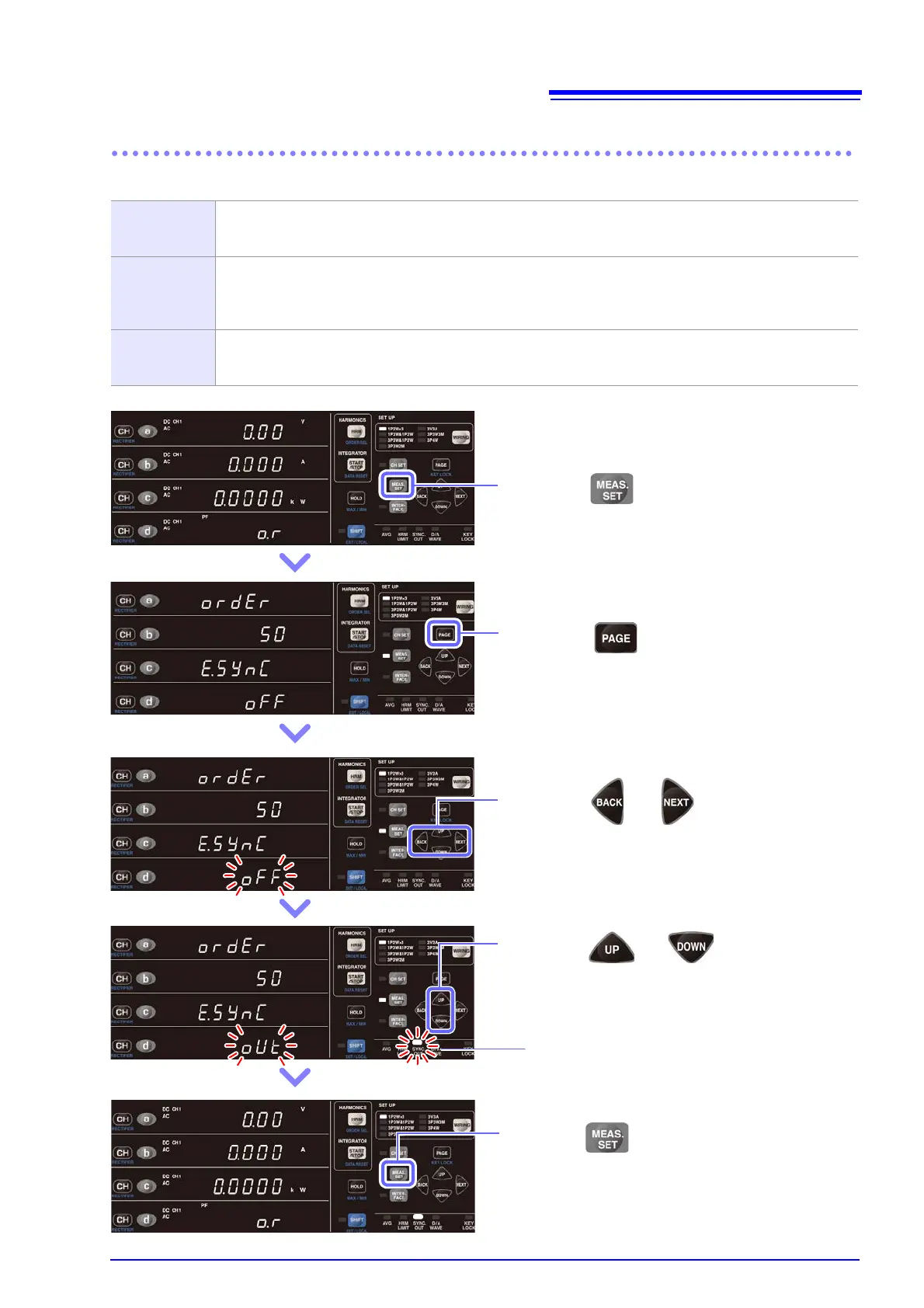

1 Press .
2 Press to display the settings
screen to the left.
3 Press or to select the syn-
chronized control I/O setting.
4 Press or to configure the
synchronized control I/O setting.
Setting: oFF → oUt → in ⋅⋅⋅
The SYNC.OUT lamp will light up when set to oUt.
5 Press to exit the settings.
The instrument will return to the normal measure-
ment state.
