3.2 Configuring Settings
58

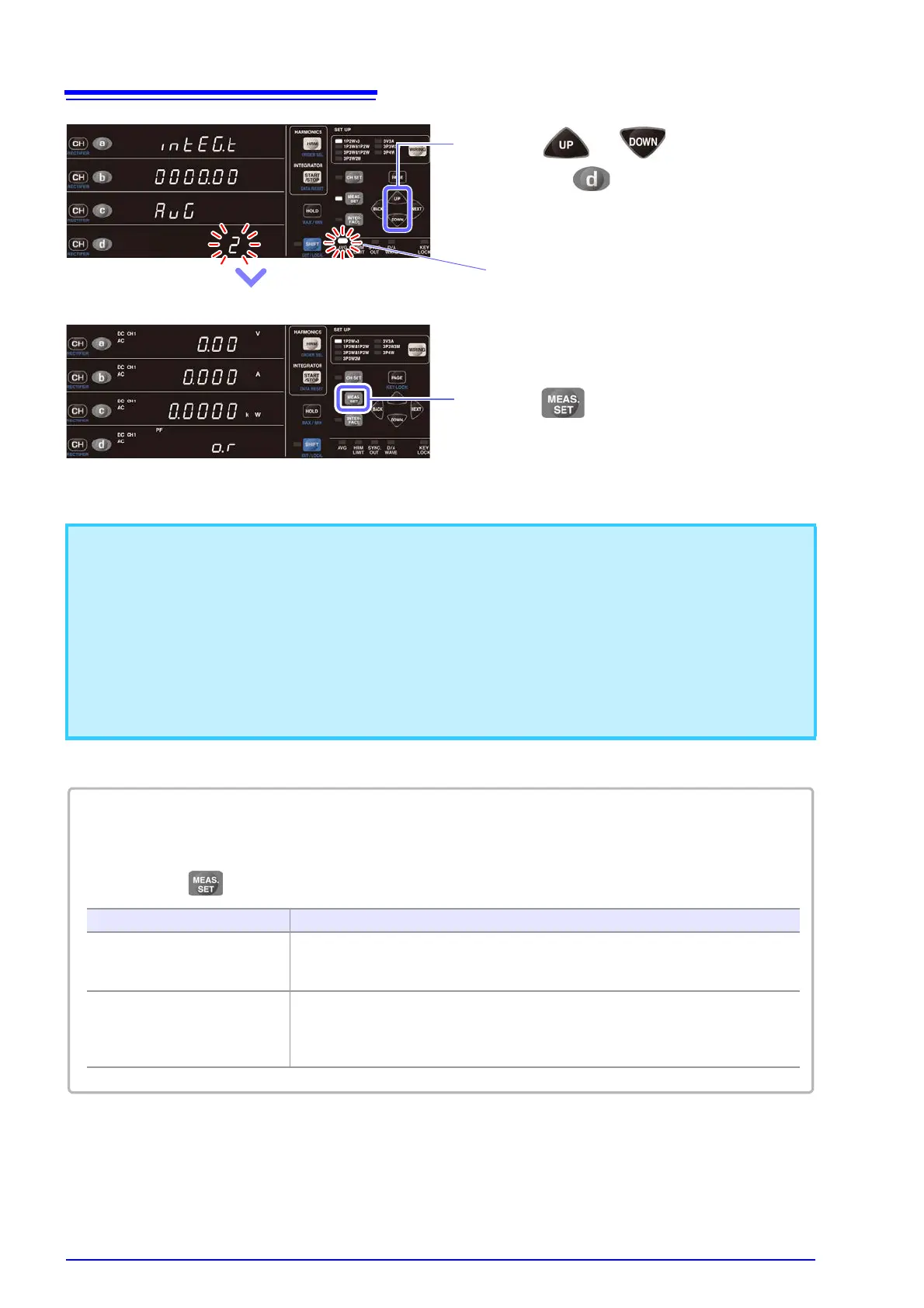

4 Press or and set the num-
ber in the area to 2.
The number 2 will flash, and the
AVG
lamp will light up.
When the setting is changed to a value other than
the default setting of 1, the AVG lamp will light up.
• Averaging will restart when there is a change that affects measured values, for example in the wiring
mode, range, integration reset, or number of averaging iterations. Since no average value exists immedi-
ately after the start of averaging, the invalid data display [- - - - -] will be shown. During this period of time,
the AVG lamp will flash.
• If the instantaneous value changes to [o.r] while average values are being displayed, the display will
change to [o.r].
• The unit may flash during measurement.
See: "3.11.3 When the Unit Indicator Flashes" (p.116)
• Averaging processing is performed for voltage, current, active power, apparent power, and reactive power.
• The power factor and phase angle are calculated from the averaged active power and apparent power.
5 Press to exit the settings.
The instrument will revert to the normal measure-
ment state.
This indicates that the number of averaging iterations cannot be changed.
After pressing to exit the setting, perform the following procedure:
Status Solution and reference for more information
During integration operation
(RUN lamp lit up or flashing)
Averaging cannot be changed until the integrated value is reset (so that the
RUN
lamp turns off).
See: Canceling integration (resetting integrated values) (p.65)
During display hold operation or
maximum value/minimum value
hold operation (HOLD, MIN,
or MAX
lamp lit up)
Averaging cannot be changed until this operation is canceled (so that the HOLD
lamp turns off).
See: Canceling the display hold state (p.108)
Returning to the instantaneous value display (p.109)
If the number of average iterations does not flash
