41

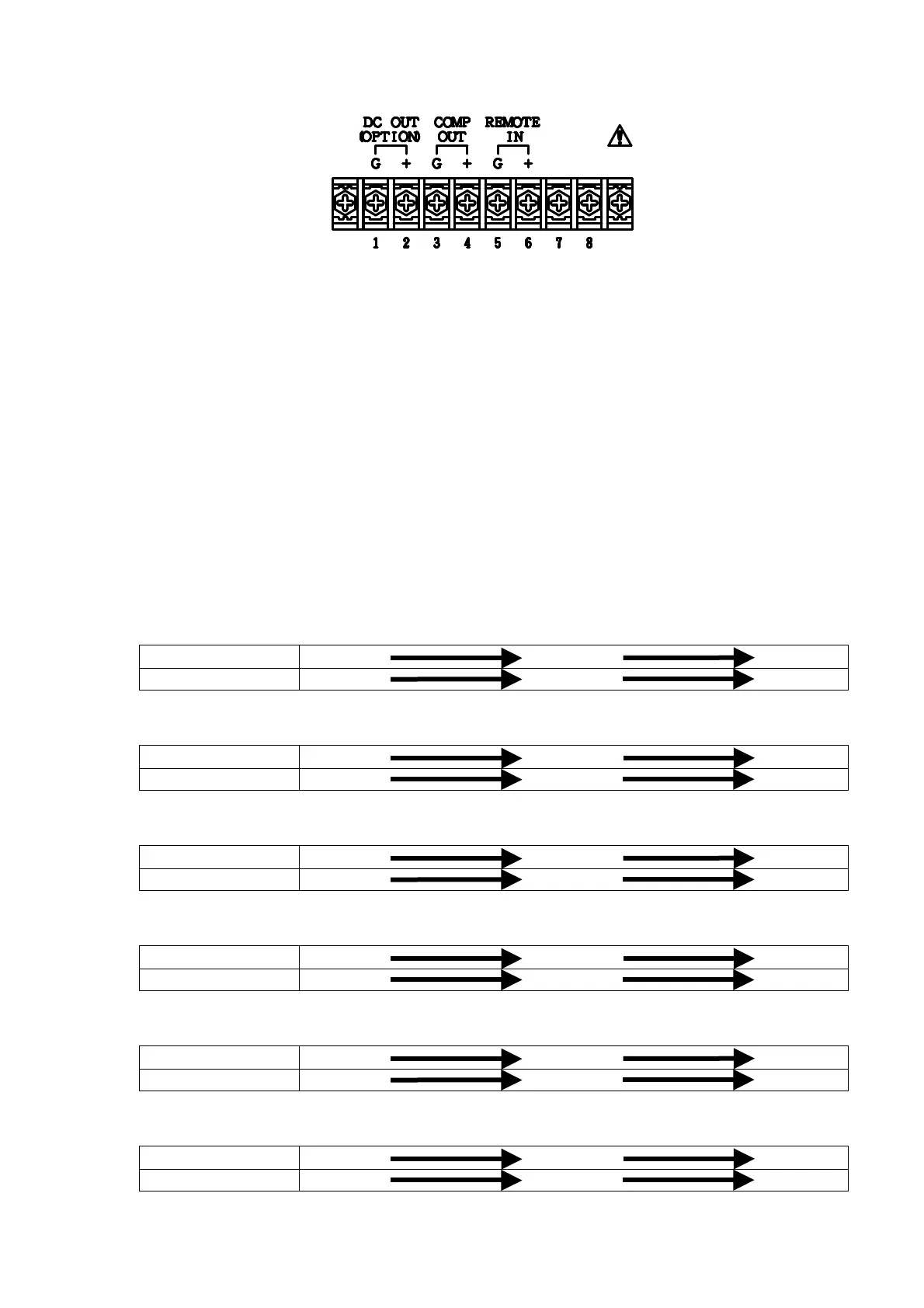

Fig. 9.1.1
Fig. 9.1.1 shows the DC OUT (OPTION) “G”/”+” terminals on the
external input/output terminal block on the rear of the unit.
A DC measuring instrument like a HIOKI chart recorder can be
connected to these terminals. For permanent data recording, a HIOKI
chart recorder is recommended for better technical follow-up, including
a supply of a variety of recording charts and technical service.
3) Output voltage
These tables show the relations between displayed value of super
megohmmeter and output voltage of RP-8000.
Target voltage 5V
Displayed value
0.025 0.125 0.25
Output voltage
1V 5V 10V
Ta
rget voltage 10V
Displayed value
0.05 0.25 0.5
Output voltage
1V 5V 10V
Ta
rget voltage 15V
Displayed value
0.075 0.375 0.75
Output voltage
1V 5V 10V
Ta
rget voltage 25V
Displayed value
0.125 0.625 1.25
Output voltage
1V 5V 10V
Ta
rget voltage 50V
Displayed value
0.25 1.25 2.5
Output voltage
1V 5V 10V
Targe
t voltage 100V
Displayed value
0.5 2.5 5
Output voltage
1V 5V 10V
