52
Installation
BAT
Release
05
03/2013

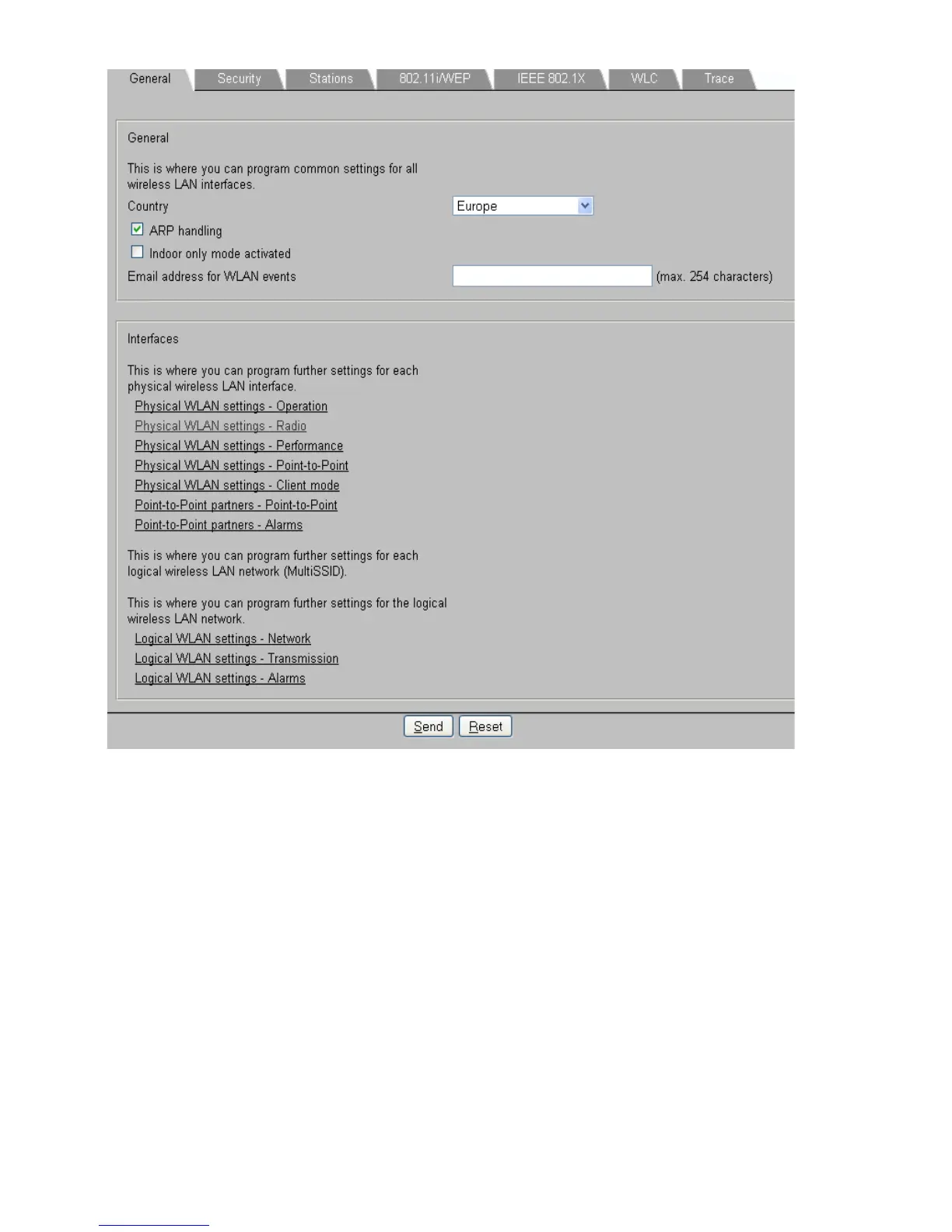

Open the configuration
for the physical interf
ace to which you are
connecting the antenna.
On the Radio tab you w
ill find an entry field
for the antenna gain (s
ee the following figure):
51
53
