Hirschmann GigaLION-24TP - Figure 3-42. LACP Trunk Configuration

Configuring the Switch
3-72
3
Web – Click Port, LACP, Configuration. Select any of the switch ports from the
scroll-down port list and click Add. After you have completed adding ports to the
member list, click Apply.

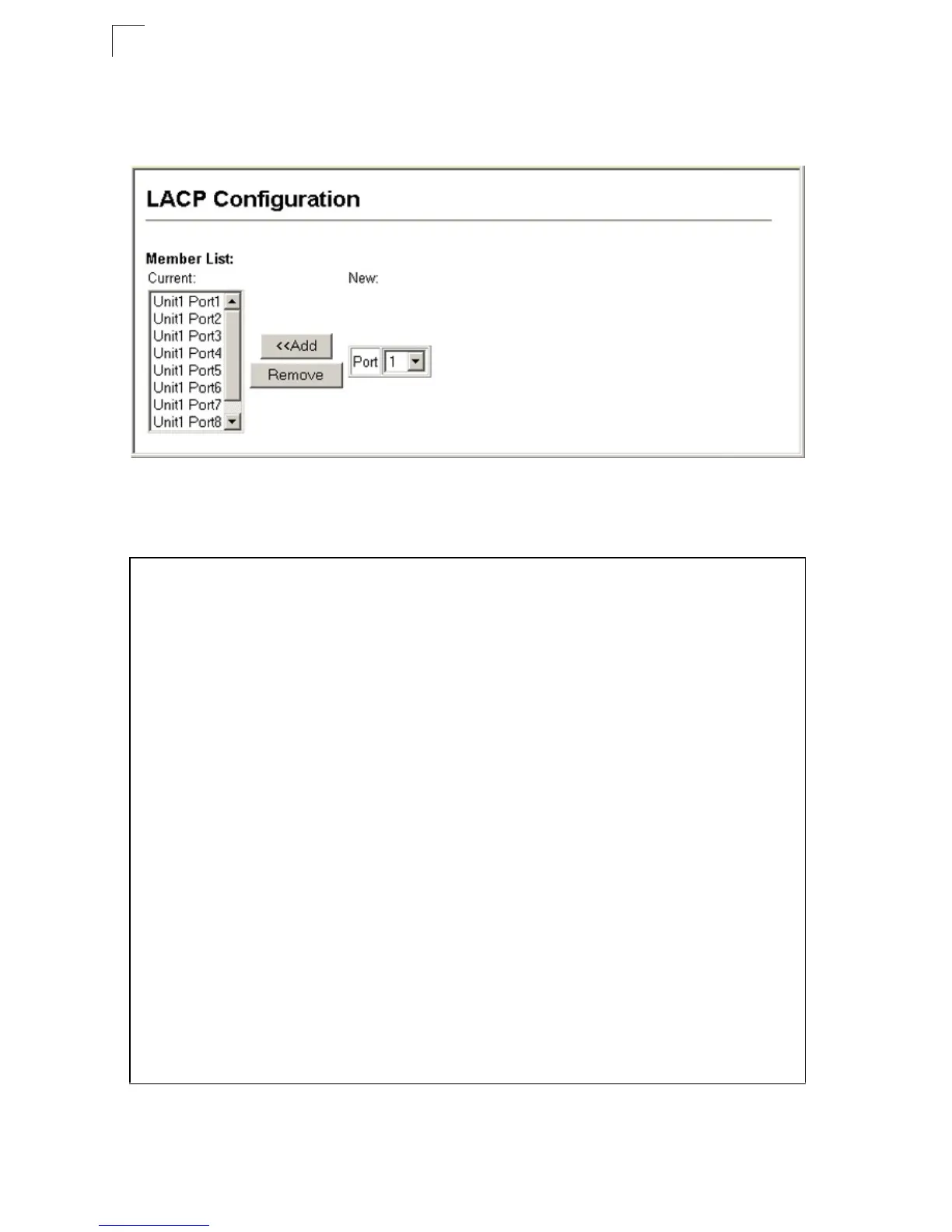

Figure 3-42. LACP Trunk Configuration
CLI – The following example enables LACP for ports 1 to 6. Just connect these ports
to LACP-enabled trunk ports on another switch to form a trunk.
Console(config)#interface ethernet 1/1 4-123
Console(config-if)#lacp 4-139
Console(config-if)#exit
.
.
.
Console(config)#interface ethernet 1/6
Console(config-if)#lacp
Console(config-if)#end
Console#show interfaces status port-channel 1 4-131
Information of Trunk 1
Basic information:
Port type: 1000T
Mac address: 22-22-22-22-22-2d
Configuration:
Name:
Port admin status: Up
Speed-duplex: Auto
Capabilities: 10half, 10full, 100half, 100full, 1000full,
Flow control status: Disabled
Port security: Disabled
Max MAC count: 0
Port security action: None
Combo forced mode: None
Current status:
Created by: Lacp
Link status: Up
Port operation status: Up
Operation speed-duplex: 1000full
Flow control type: None
Member Ports: Eth1/1, Eth1/2, Eth1/3, Eth1/4, Eth1/5, Eth1/6,
Console#
