1.6.2 USB interface
The USB interface allows you to connect the AutoConfiguration Adapter
ACA22 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.

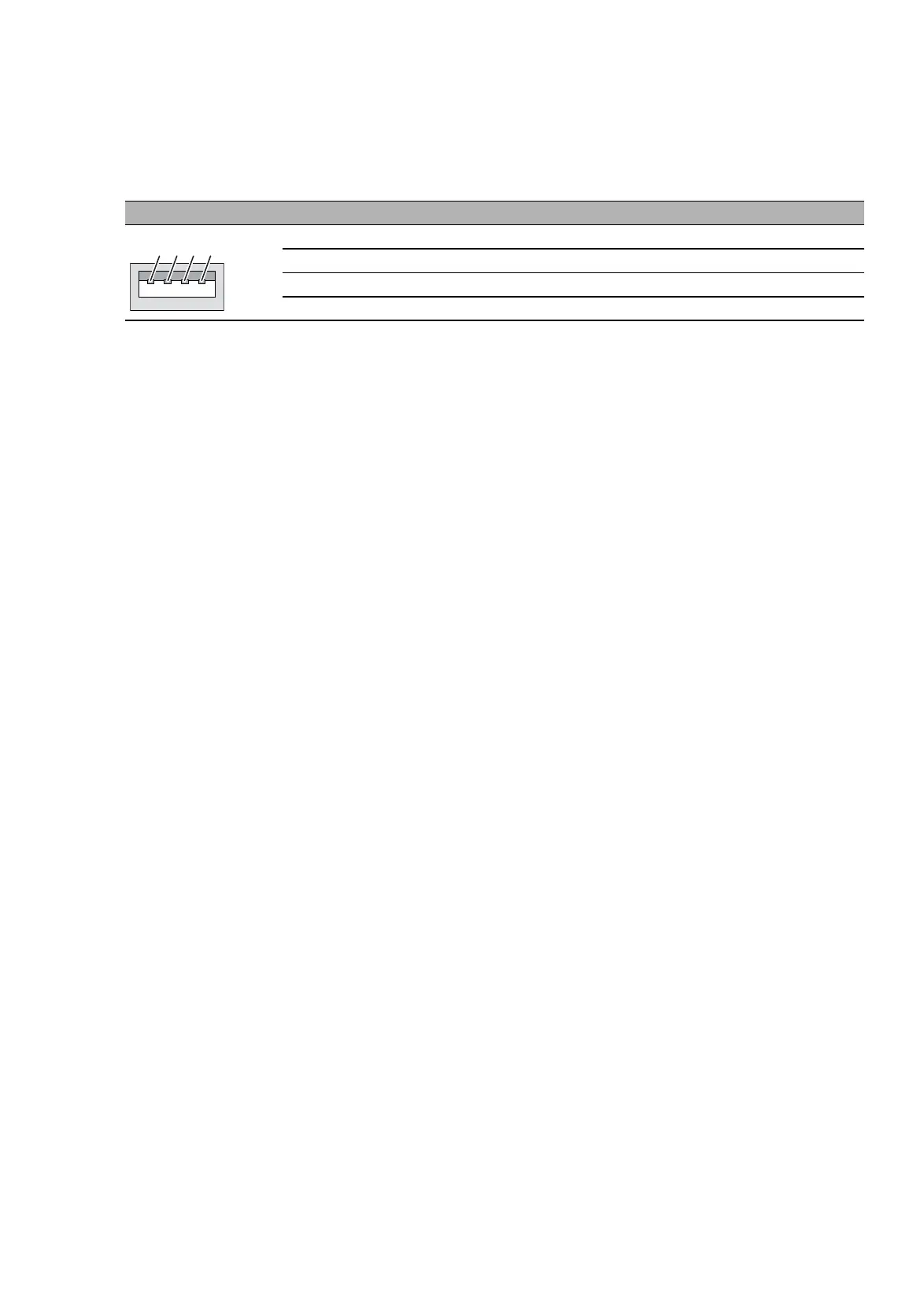

Figure Pin Function
1 VCC (VBus)
2 - Data
3 + Data
4 Ground (GND)
Table 6: Pin assignment of the USB interface
1
2
4
3
