Installation MACH1000
Release
06
03/2021
21
The devices MAR1130-... and MAR1132-... have an additional Fast Ethernet
port on the front of the device that you can use for diagnostic purposes.
The MAR1132-... devices support PoE (Power over Ethernet) according
to IEEE 802.3af. Fast Ethernet-Ports 1 ... 4 are PoE ports.
In the case of the MAR1130-... devices all cable outlets lead to the back,
which means that the ports are arranged on the back of the device.
The MAR1132-... devices support PoE (Power over Ethernet) according
to IEEE 802.3af. Fast Ethernet-Ports 1 ... 4 are PoE ports. In these
devices all cable outlets lead to the back, which means that the ports are
arranged on the back of the device.

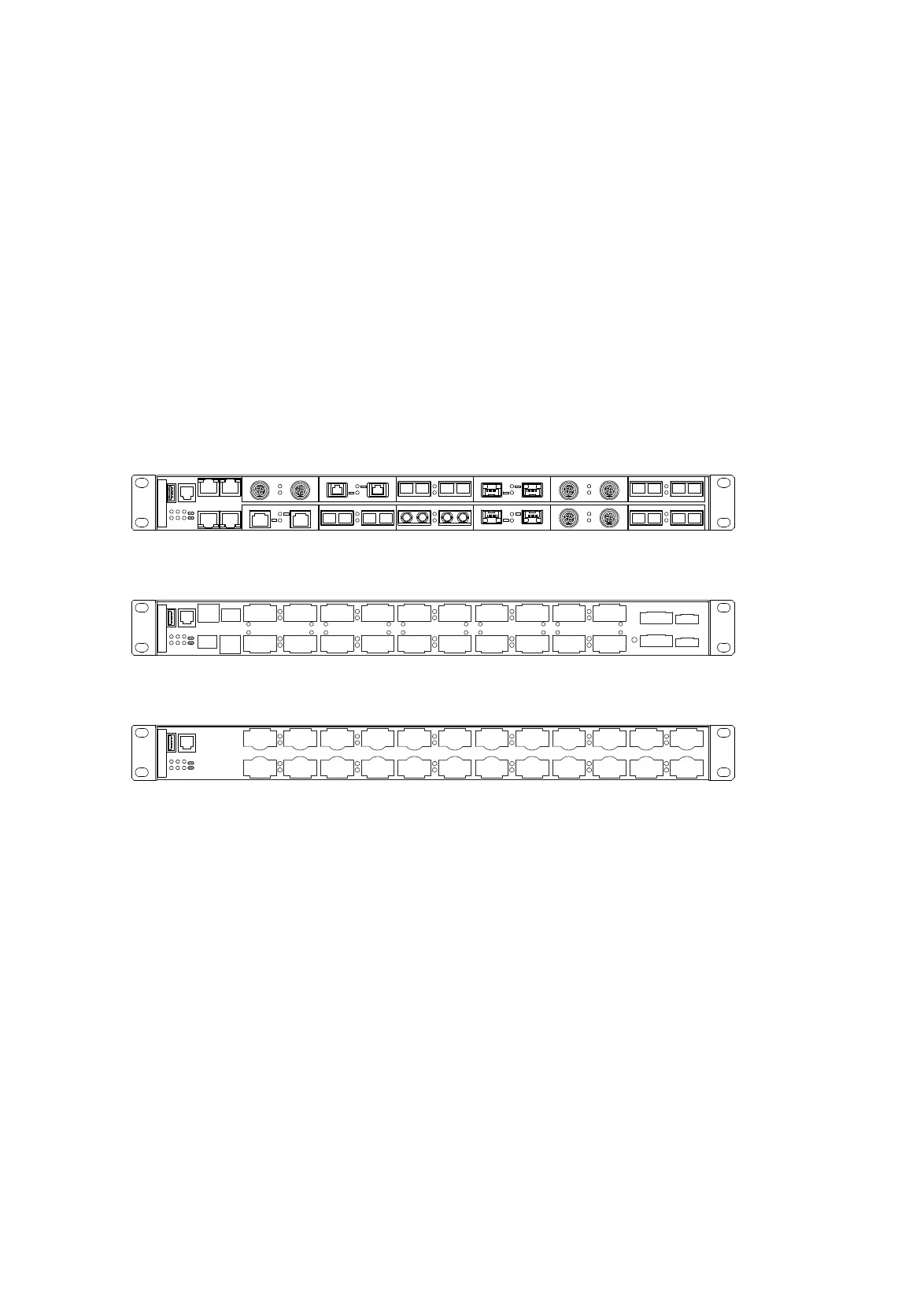

1.3.1 Port assignment
The port assignment pictured is exemplary. The sequence of the port
numbering is identical for every device variant.
Figure 1: Port assignment: Example for port assignment
1 2 5 6 9 10 13 14 17 18 21 22 25 26
3
4 7 8 11 12 15
16 19 20 23 24 27 28
1 2 5
6 9 10 13 14 17 18
21 22
2 3 7
8 11
12 15 16 19
20
23 24
1 3 4 7 8 11 12 15 16
19 20 23 24
2
5 6 9
10 13 14 17
18 21 22
25 26
