22
Installation MACH1000
Release
06
03/2021

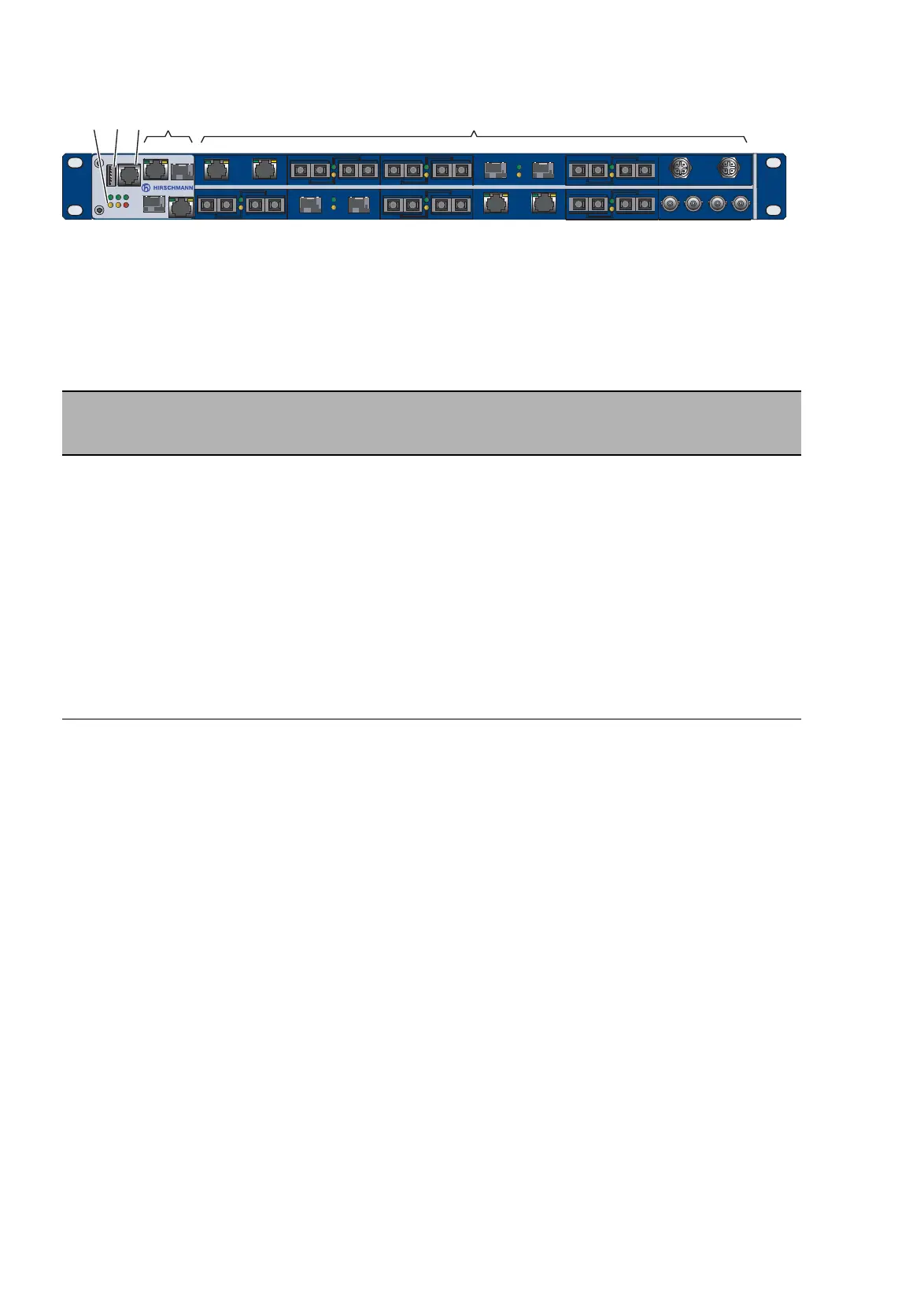

1.3.2 Front view MACH1000 with 2 × Gigabit ports
Figure 2: 1 - LED display elements
2 - USB interface
3 - V.24 connection for external management
4 - See following table, column 1
5 - See following table, column 2
Gigabit Ethernet
GE ports 1 and 2 (combo
ports)
Fast Ethernet
FE ports 1 ... 24, connection as required
100/1000 Mbit/s
Fiber optic, SFP slots
Alternative connections:
10/100/1000 Mbit/s
Twisted pair, RJ45 connections
99:
TT:
MM:
JJ:
NN:
VV:
UU:
LL:
GG:
ZZ:
RR:
FF:
Module position empty
2 × Twisted pair TX, RJ45, 10/100 Mbit/s
2 × Multimode FX DSC, 100 Mbit/s
2 × Multimode FX MTRJ, 100 Mbit/s
2 × Multimode FX ST, 100 Mbit/s
2 × Singlemode FX DSC, 100 Mbit/s
2 × Singlemode FX ST, 100 Mbit/s
2 × Singlemode Long Haul FX DSC, 100 Mbit/s
2 × Singlemode Long Haul FX DSC, 124.27 mi (200 km),
100 Mbit/s
2 × SFP slot, 100 Mbit/s
2 × Twisted pair TX, RJ45, 10/100 Mbit/s
2 × Multimode FL ST, 10 Mbit/s
USB
V.24
MACH 1000
P
StandByRM
FAULT
R1
R2
MACH 1000
12
453
