36
Installation MACH1000
Release
06
03/2021
1.6 Management interfaces
1.6.1 V.24 interface (external management)
The V.24 interface is an RJ11 socket.
The V.24 user interface is serial and allows you to connect the following
devices directly:
External management station (VT100 terminal or PC with appropriate
terminal emulation). With this management station, the Command Line
Interface (CLI) is available to you. Furthermore, the system monitor is
available to you at the system start.
The interface casing is electrically connected to the front panel.
The V.24 interface is not electrically isolated from the supply voltage.

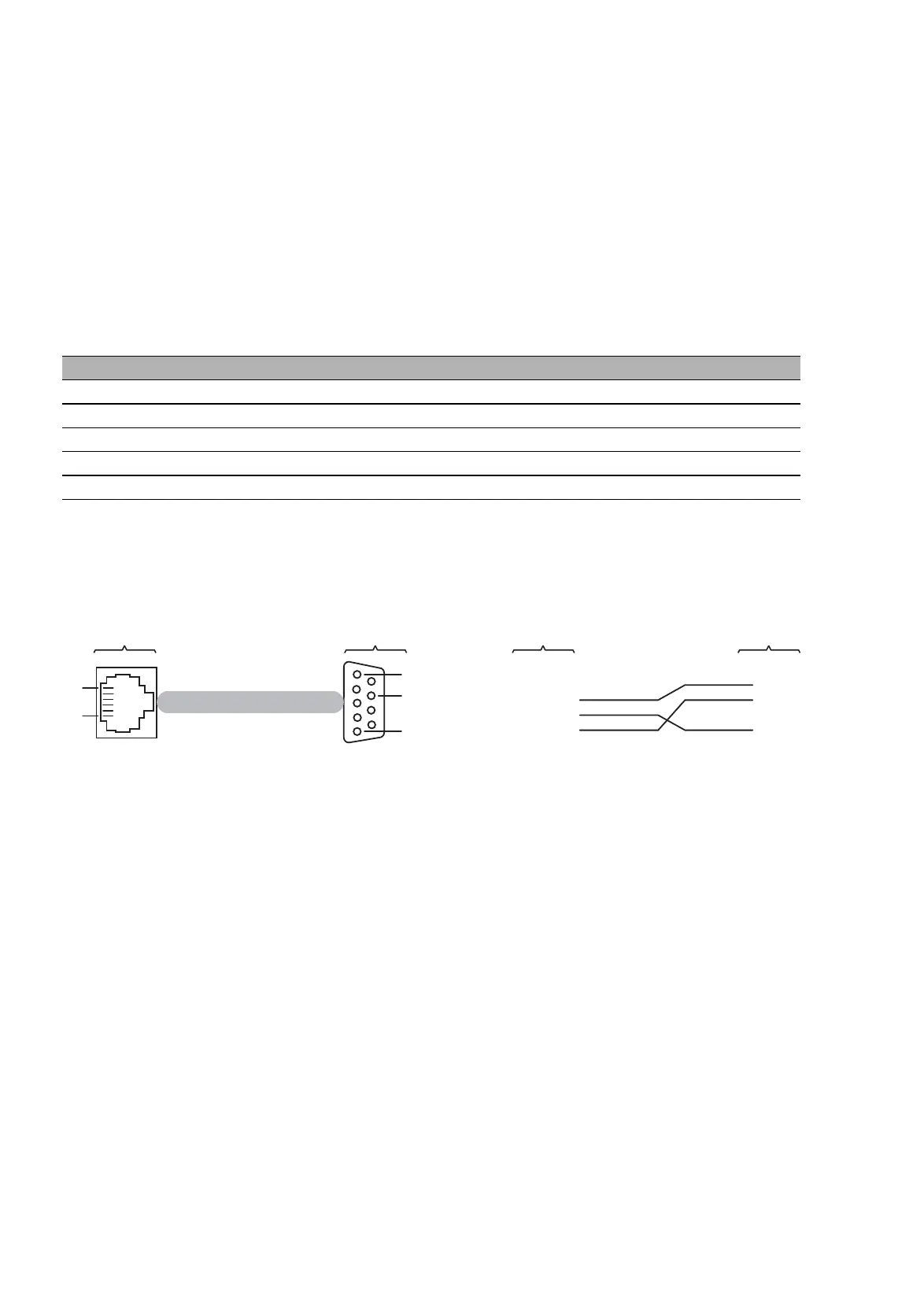

Figure 10: Pin assignment of the V.24 interface and the DB9 plug
Note: You will find the order number for the terminal cable, which is ordered
separately, in the Technical Data section (see on page 54 “Technical data”).
You will find a description of the V.24 interface in the “User Manual Basic
Configuration” document.
You find these manuals as PDF files on the Internet at http://
www.doc.hirschmann.com
VT100 terminal settings
Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
1
1
8
5
6
2
3
5
1
2
3
4
5
6
CTS
n.c.
TX
GND
RX
RTS
RJ11
DB9
RJ11
DB9
