Hirschmann MACH1000 Series User Manual

Installation MACH1000
Release 06 03/2021
39
2Installation
The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
Perform the following steps to install and configure the device:
 Checking the package contents
 Installing an SFP transceiver (optional)
 “Connecting the power unit connections for supply voltage and signal
contact”
 Installing and grounding the device
 Operating the device
 Connecting data cables
2.1 Checking the package contents
 Check whether the package includes all items named in the section
“Scope of delivery” on page 65.
 Check the individual parts for transport damage.
2.2 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 65.

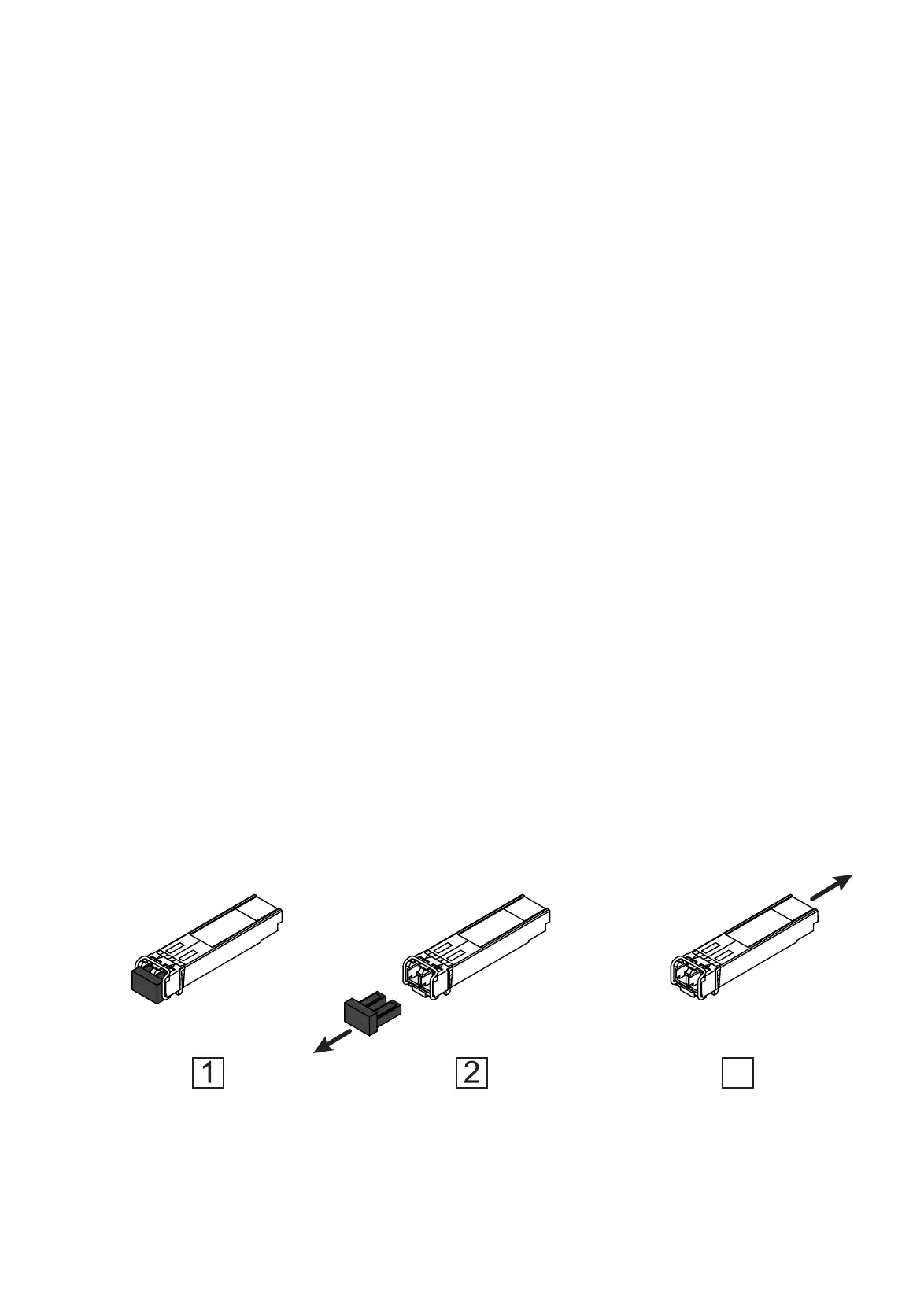

Figure 11: Installing SFP transceivers: Installation sequence
3
