Hirschmann MACH104-20TX-F User Manual

12
Installation MACH104
Release 07 07/2014

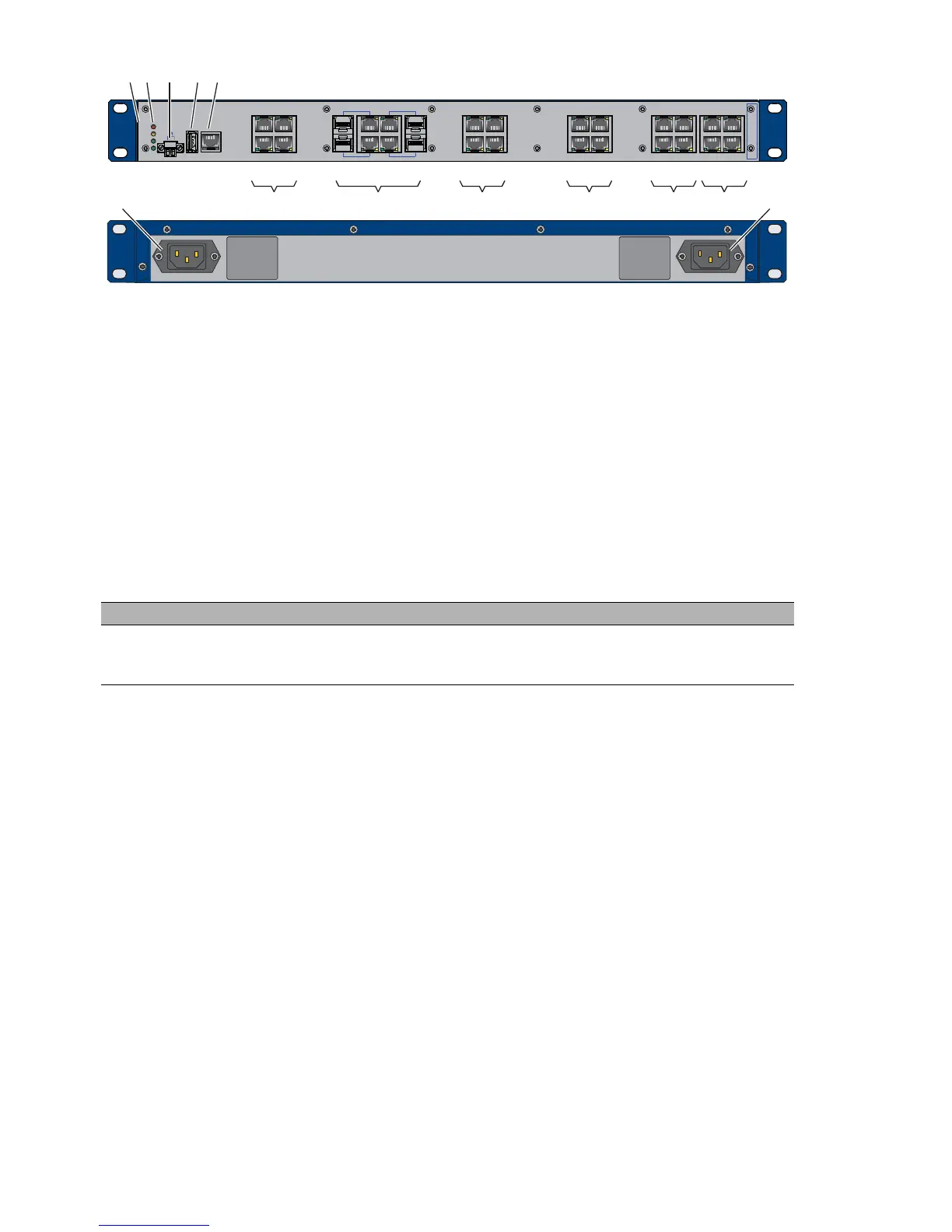

Figure 2: Overview of interfaces and display and control elements
for the MACH104-20TX-FR...
1 - MACH104-20TX-FR... device
2 - LED display elements
3 - Signal contact
4 - USB interface
5 - V.24 access for external management
6 - See the following table, column 1
7 - See the following table, column 2
8 - P1: Connection for voltage supply (back of device)
9 - P2: Connection for redundant voltage supply
(back of device)
1.2.3 MACH104-20TX-F-4PoE...: devices with 24 GB ports, 4
of which are PoE ports
 MACH104-20TX-F-4PoE...
 4 Gigabit Ethernet combo ports
 20 Gigabit Ethernet ports, 4 of which are PoE-capable
 Integrated PoE voltage supply for 4 PoE ports
4 × Gigabit Ethernet ports 4 × Gigabit Ethernet combo ports
10/100/1000 Mbit/s twisted
pair, RJ45 connections
100/1000 Mbit/s F/O, SFP slots
Alternative connections:
10/100/1000 Mbit/s twisted pair, RJ45 connections
6
7
5
13
911
13 15
17 19 21 23
8
6
24
10 12
14 16
18 20 22 24
6 6 6 6
7
V.2 4USB
Aufkleber MAC-Adresse
P
FAULT
FAULT
Sb
RM
5
6
7
8
13
24
911
10 12
13 15
14 16
17 19
18 20
21 23
22 24
MACH104-20TX-FR
9
8
2 3 4 51
