Hirschmann MACH104-20TX-F User Manual

Installation MACH104
Release 07 07/2014
31

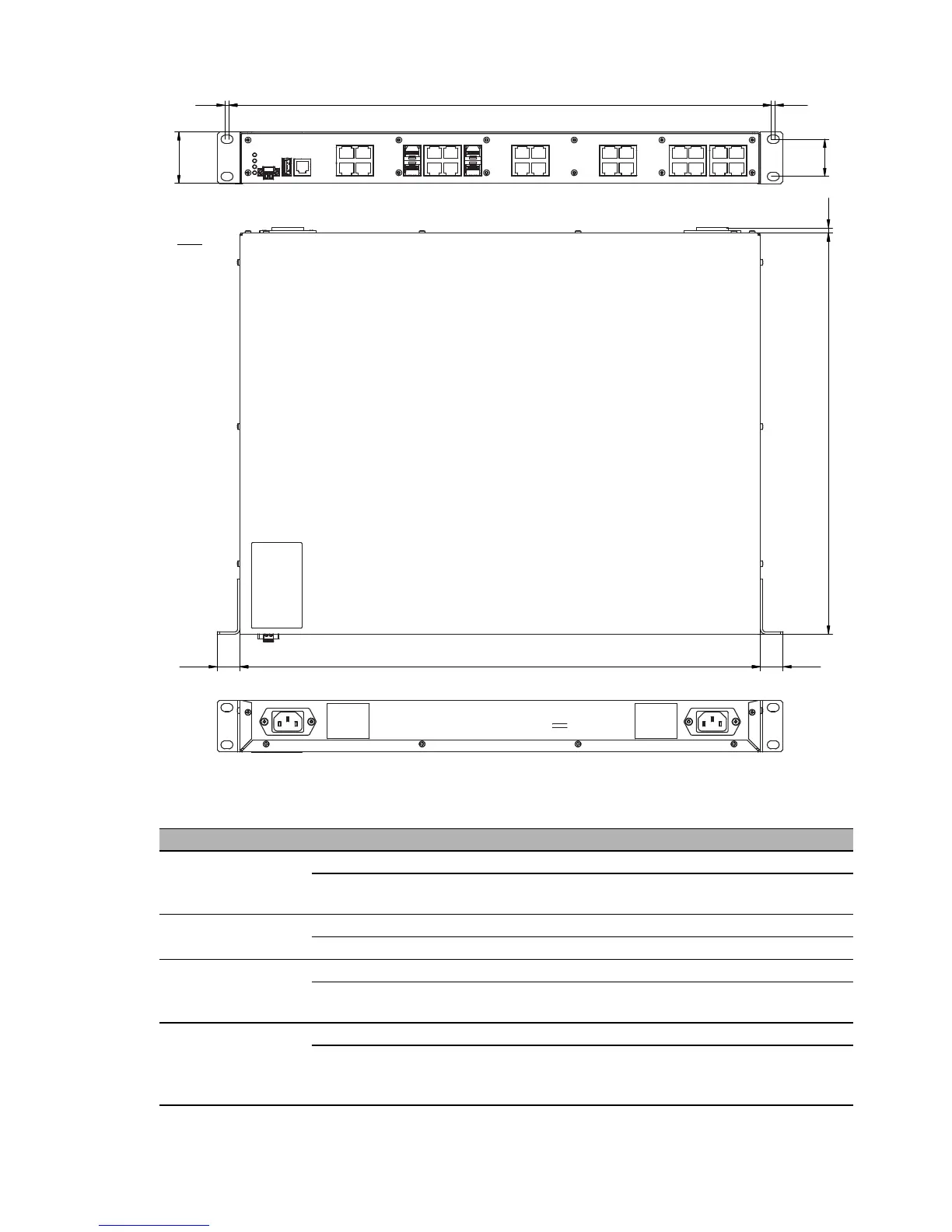

 Dimension drawings
 EMC and immunity
EMC interference immunity
IEC/EN 61000-4-2 Electrostatic discharge
Contact discharge
Air discharge
6 kV
8 kV
IEC/EN 61000-4-3 Electromagnetic field
80 MHz ... 3000 MHz 20 V/m
IEC/EN 61000-4-4 Fast transients (burst)
Power line
Data line
2kV
4kV
IEC/EN 61000-4-5 Voltage surges
Power line, line / line
Power line, line / ground
Data line
1 kV
2kV
4kV
mm
inch
31,75
1.25
462,6
18.21
43,9 1.73
3,3
0.13
3,3
0.13
4,5
0.18
342
13.46
19,3
0.76
19,3
0.76
444
17.48
