1.4 Ethernet ports
You can connect terminal devices and other segments on the ports of the
device via twisted pair cables or F/O cables.
1.4.1 10/100/1000 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE-
TX/1000BASE-T standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing (if autonegotiation is activated)
1000 Mbit/s full duplex
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Note: Some of these ports also support Power over Ethernet (PoE).
See “PoE ports” on page 16.
Delivery state: autonegotiation active.
The socket housing is electrically connected with the front panel.
The pin assignment corresponds to MDI-X.
1.4.2 100 Mbit/s F/O port
This port is an SFP slot.
Figure Pin Function Ports with PoE support:
PoE voltage feed
1 BI_DB+ Minus terminal of the working voltage
2BI_DB− Minus terminal of the working voltage
3 BI_DA+ Plus terminal of the working voltage
4BI_DD+
5BI_DD−
6BI_DA− Plus terminal of the working voltage
7BI_DC+
8BI_DC−

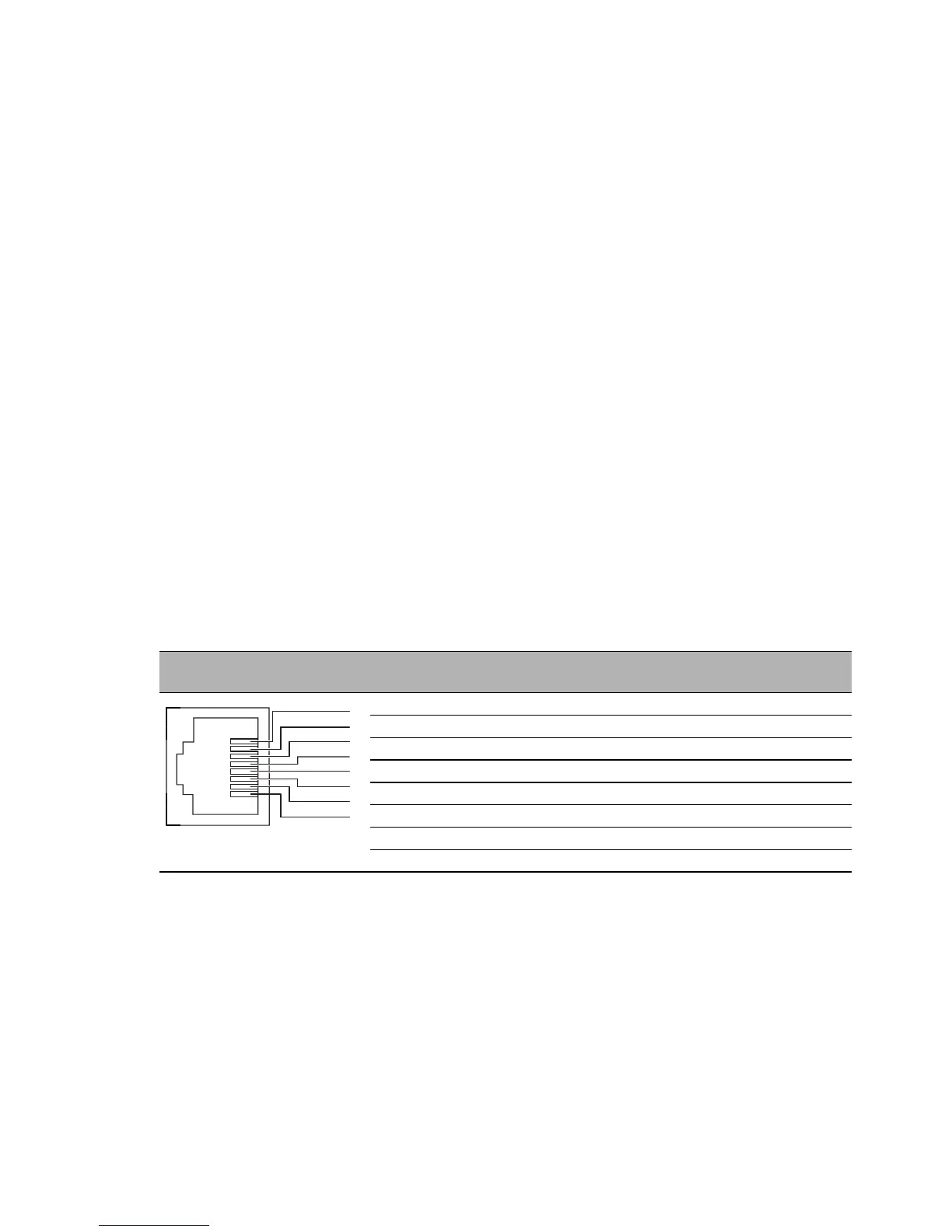

Table 1: Pin assignment of a 1000 MBit/s TP interface in MDI-X mode, RJ45
socket - for PoE with the power supplied via the wire pairs transmitting the
signal
