Installation MACH104
Release
07
07/2014
25

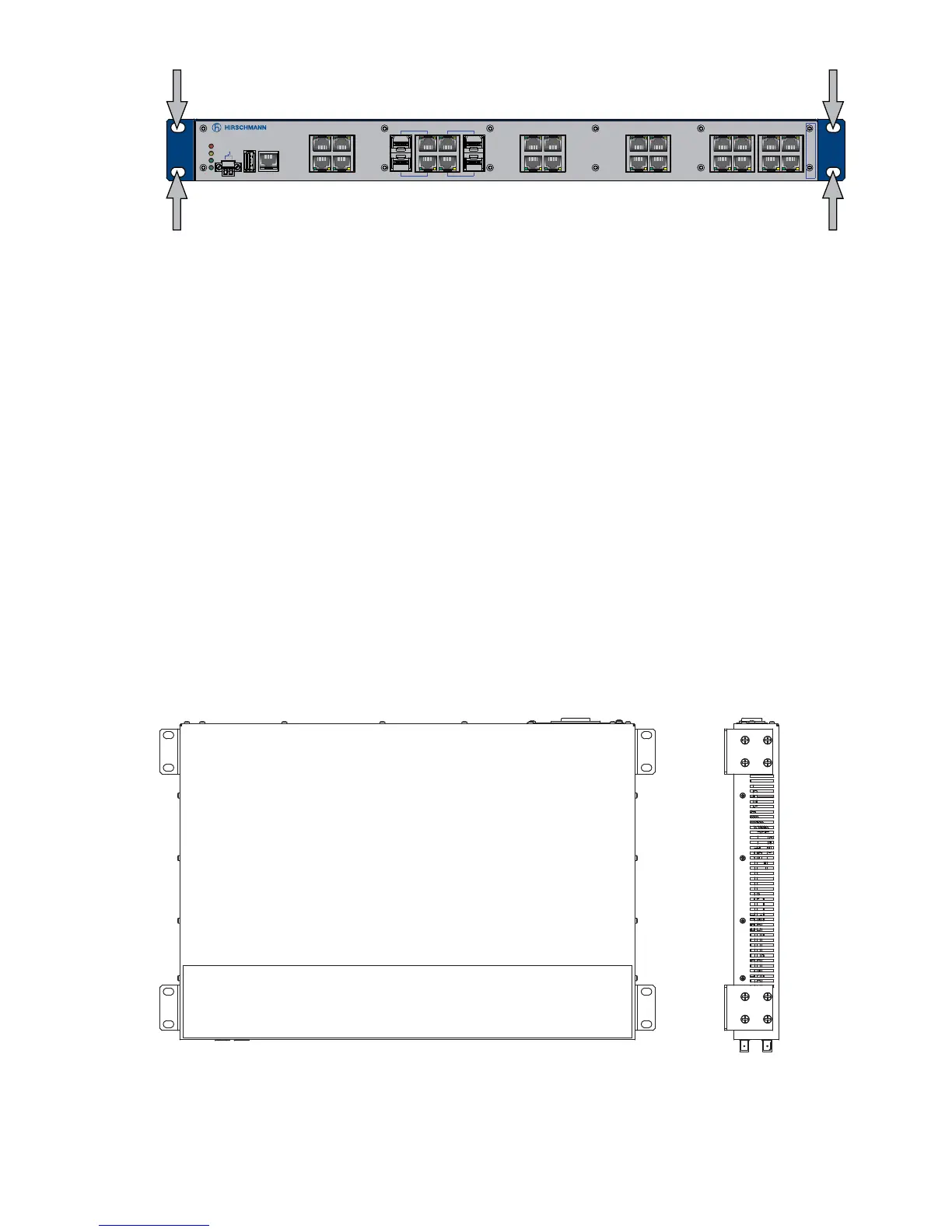

Figure 14: Mounting the MACH104 in the 19" cabinet
Fasten the device by screwing the brackets to the switch cabinet.
Note: When operating the device in an environment with strong vibrations,
you have the option to additionally fasten the back of the device to the switch
cabinet using two brackets.
You can obtain additional brackets as accessories (see on page 34 “Acces-
sories”).
2.4.4 Mounting on the wall
Use the pre-mounted brackets included in the delivery.
See figure 15 on page 25.
Additionally attach two brackets to the back of the device.
See figure 15 on page 25.
You can obtain additional brackets as accessories (see on page 34
“Accessories”).
Fasten the device by screwing the brackets to the wall.
Figure 15: Vertical mounting on the wall
