Hirschmann MACH1040 User Manual

20
Installation MACH1040
Release 05 03/2021

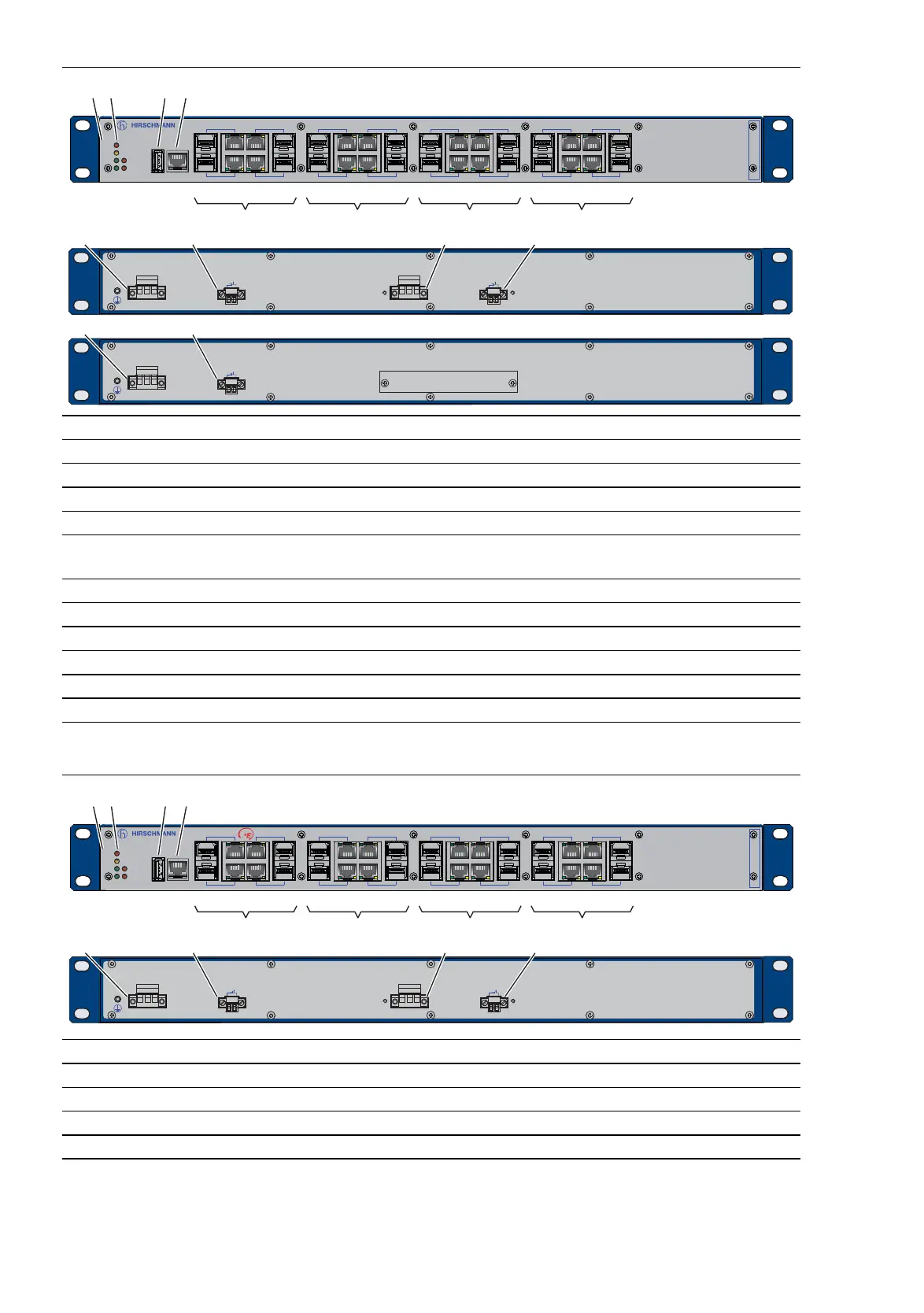

Front side of the device:
1 MAR1040 device
2 LED display elements
3 USB interface
4 V.24 interface (external management)
5 Gigabit Ethernet combo ports: 100/1000 Mbit/s SFP slots or alternatively 10/100/
1000 Mbit/s twisted pair sockets (RJ45)
Rear side of the device:
6 P1: Supply voltage connection
7 Relay 1: Signal contact
Rear side of device variants with 2 power supply units:
8 P2: Redundant supply voltage connection
9 Relay 2: Signal contact
Table 2: Description of the device variants: MAR1040-... with 16 × 1GE ports
Front side of the device:
1 MAR1042 device
2 LED display elements
3 USB interface
4 V.24 interface (external management)
Table 3: Description of the device variants: MAR1042-... with 16 × 1GE portsand
PoE
Aufkleber MAC-Adresse
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
V.24USB
P
FAULT
Sb R1
R2
RM
MAR1040
R2R1
P1
P2
Relay
Relay
R2R1
U:24/48VDC I:x.x/x.x A
X
- +
P1
P2
Relay
Relay
13 57 911 1315
2 4 6 8 10 12 14 16
6 7 8 9
6 7
2 3 41
55 5 5
Aufkleber MAC-Adresse
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
V.24USB
P
FAULT
Sb R1
R2
RM
MAR1042
P
R2R1
P1
P2
Relay
Relay
13 57 911 1315
2 4 6 8 10 12 14 16
7
8 9 10
2 3 41
65 6 6
