Hirschmann MACH1040 User Manual

Installation MACH1040
Release 05 03/2021
25
1.4.2 100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
Delivery state:
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver

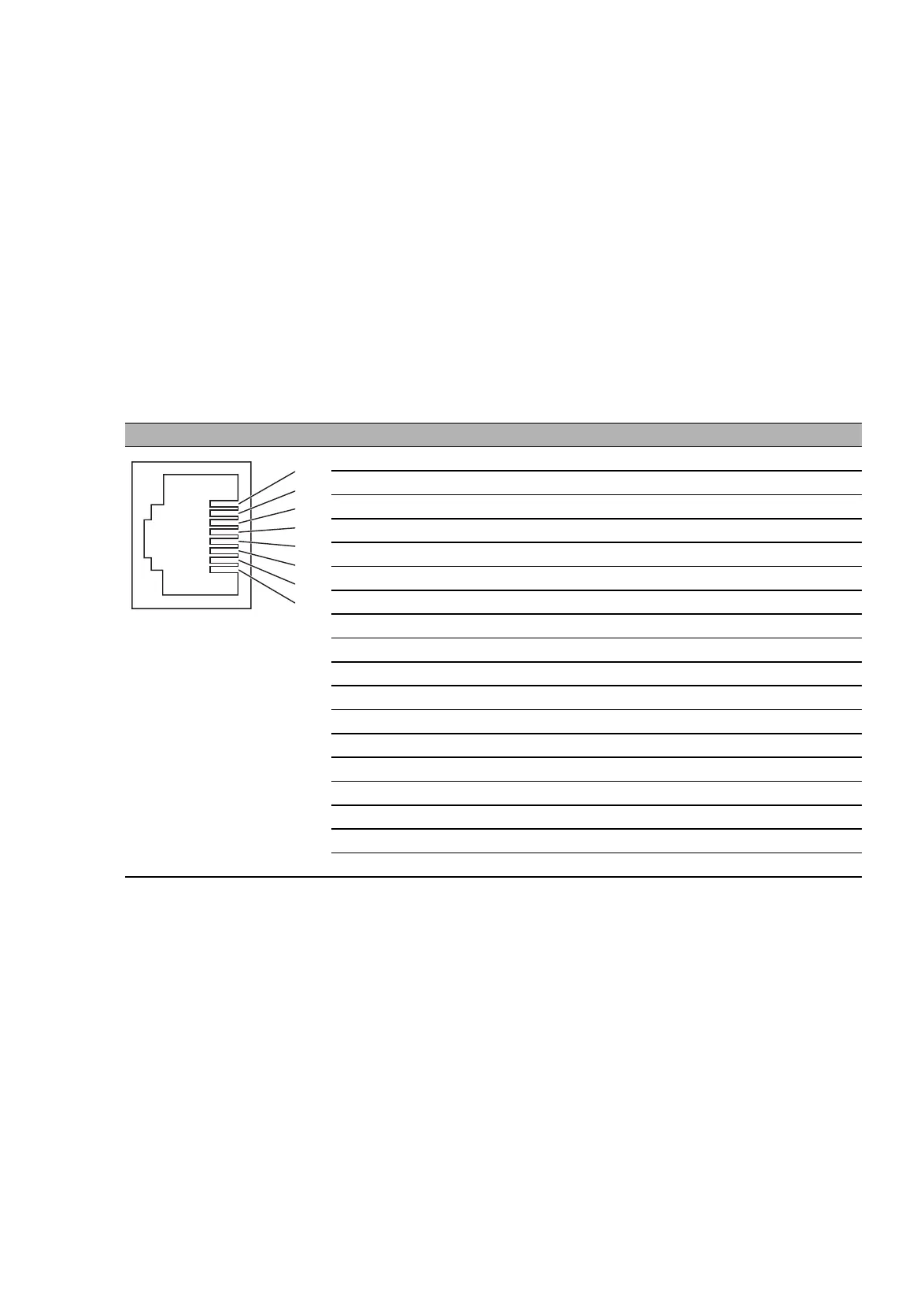

1.4.3 Pin assignments
1.5 Display elements
After the supply voltage is set up, the Software starts and initializes the
device. Afterwards, the device performs a self-test. During this process,
various LEDs light up.
RJ45 Pin 10/100 Mbit/s 1000 Mbit/s PoE
MDI mode
1 TX+ BI_DA+ Positive V
PSE
a
a. Phantom supply
2TX− BI_DA− Positive V
PSE
a
3 RX+ BI_DB+ Negative V
PSE
a
4 — BI_DC+ Positive V
PSE
b
b. Spare pair supply
5— BI_DC− Positive V
PSE
b
6RX− BI_DB− Negative V
PSE
a
7 — BI_DD+ Negative V
PSE
b
8— BI_DD− Negative V
PSE
b
MDI-X mode
1 RX+ BI_DB+ Negative V
PSE
a
2RX− BI_DB− Negative V
PSE
a
3 TX+ BI_DA+ Positive V
PSE
a
4 — BI_DD+ Positive V
PSE
b
5— BI_DD− Positive V
PSE
b
6TX− BI_DA− Positive V
PSE
a
7 — BI_DC+ Negative V
PSE
b
8— BI_DC− Negative V
PSE
b
1
2
3
4
5
6
7
8
