30
Installation MACH1040
Release
05
03/2021
1.6 Management interfaces
1.6.1 V.24 interface (external management)
The V.24 interface is an RJ11 socket.
A serial interface is provided on the V.24 interface for the local connection of
an external management station (VT100 terminal or PC with corresponding
terminal emulation). This enables you to set up a connection to the
Command Line Interface (CLI) and to the system monitor.
The interface casing is electrically connected to the front panel.
The V.24 interface is not electrically insulated from the supply voltage.

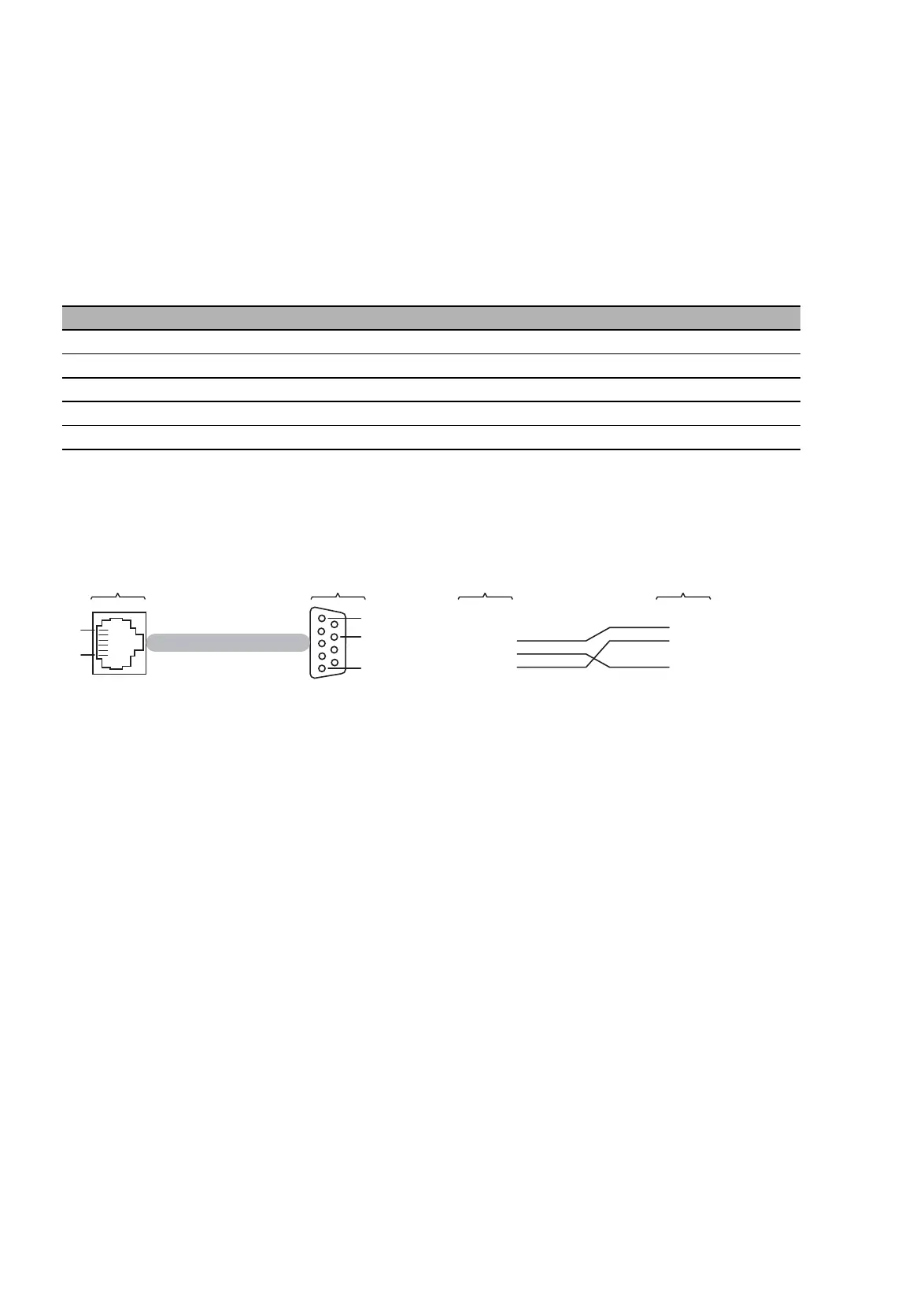

Figure 1: Pin assignment of the V.24 interface and the DB9 plug
Note: You will find the order number for the terminal cable, which is ordered
separately, in the Technical Data section (see on page 45 “Technical data”).
You will find more information in the “Basic Configuration User Manual”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
1.6.2 USB interface
The USB interface allows you to connect the AutoConfiguration Adapter
ACA22 storage medium. This is used for saving/loading the configuration
data and diagnostic information, and for loading the software.
VT100 terminal settings
Speed 9600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
1
1
8
5
6
2
3
5
1
2
3
4
5
6
CTS
n.c.
TX
GND
RX
RTS
RJ11
DB9
RJ11
DB9
