Installation MACH1040
Release 05 03/2021
6 Disassembly
6.1 Removing the device
Proceed as follows:
 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the grounding.
 To detach the device from the switch cabinet or the wall, remove the
screws from the brackets on the device.
6.2 Removing an SFP transceiver (optional)

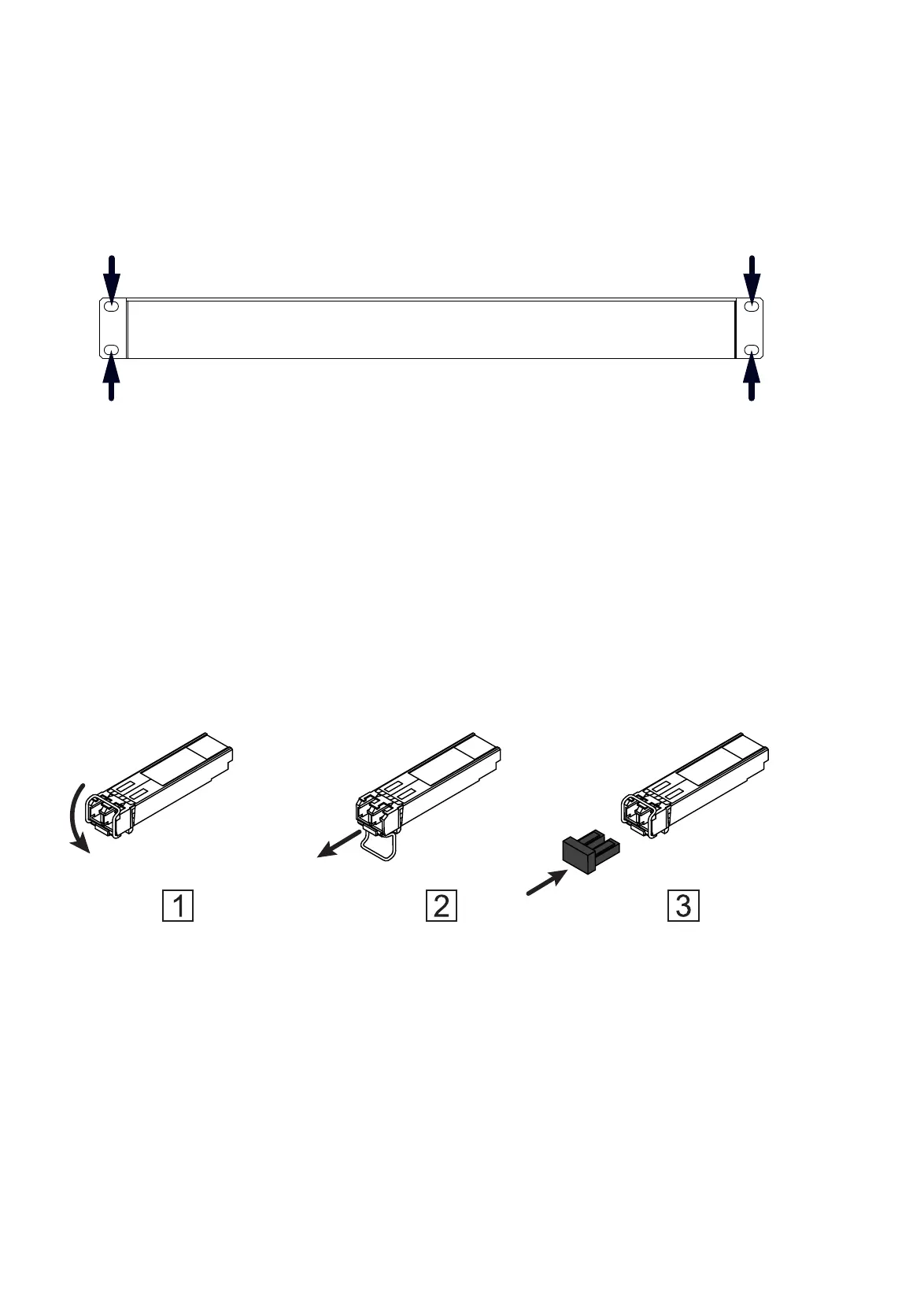

Figure 7: De-installing SFP transceivers: De-installation sequence
Proceed as follows:
 Open the locking mechanism of the SFP transceiver (1).
 Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
 Close the SFP transceiver with the protection cap (3).
