Installation MACH1040
Release
05
03/2021
2 Installation
The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
Perform the following steps to install and configure the device:
Checking the package contents
Installing an SFP transceiver (optional)
Wiring of the terminal blocks for supply voltage and signal contact
Installing and grounding the device
Operating the device
Connecting data cables
2.1 Checking the package contents
Check whether the package includes all items named in the section
“Scope of delivery” on page 56.
Check the individual parts for transport damage.
2.2 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 57.

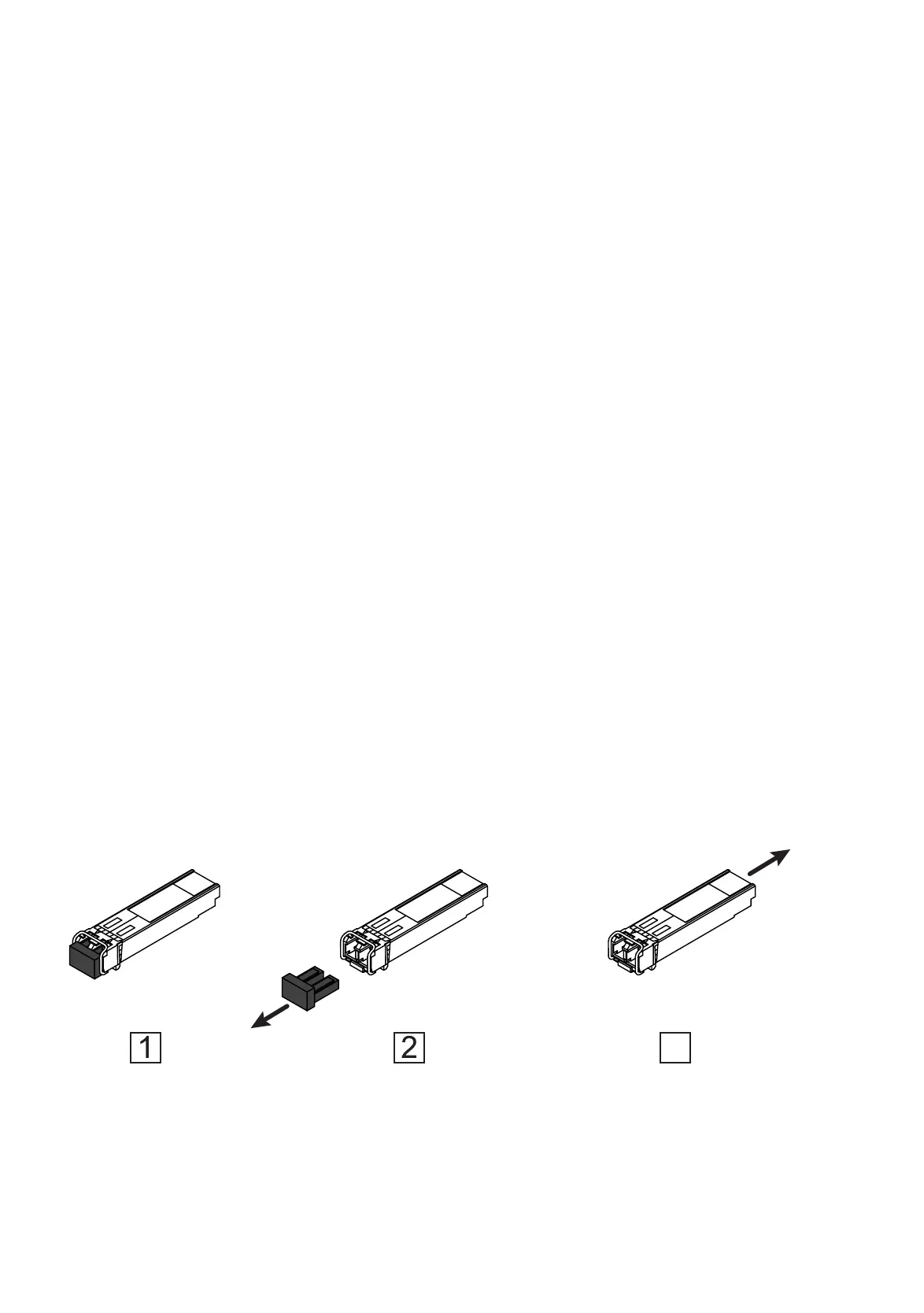

Figure 2: Installing SFP transceivers: Installation sequence
