Installation MACH1040
Release
05
03/2021
37

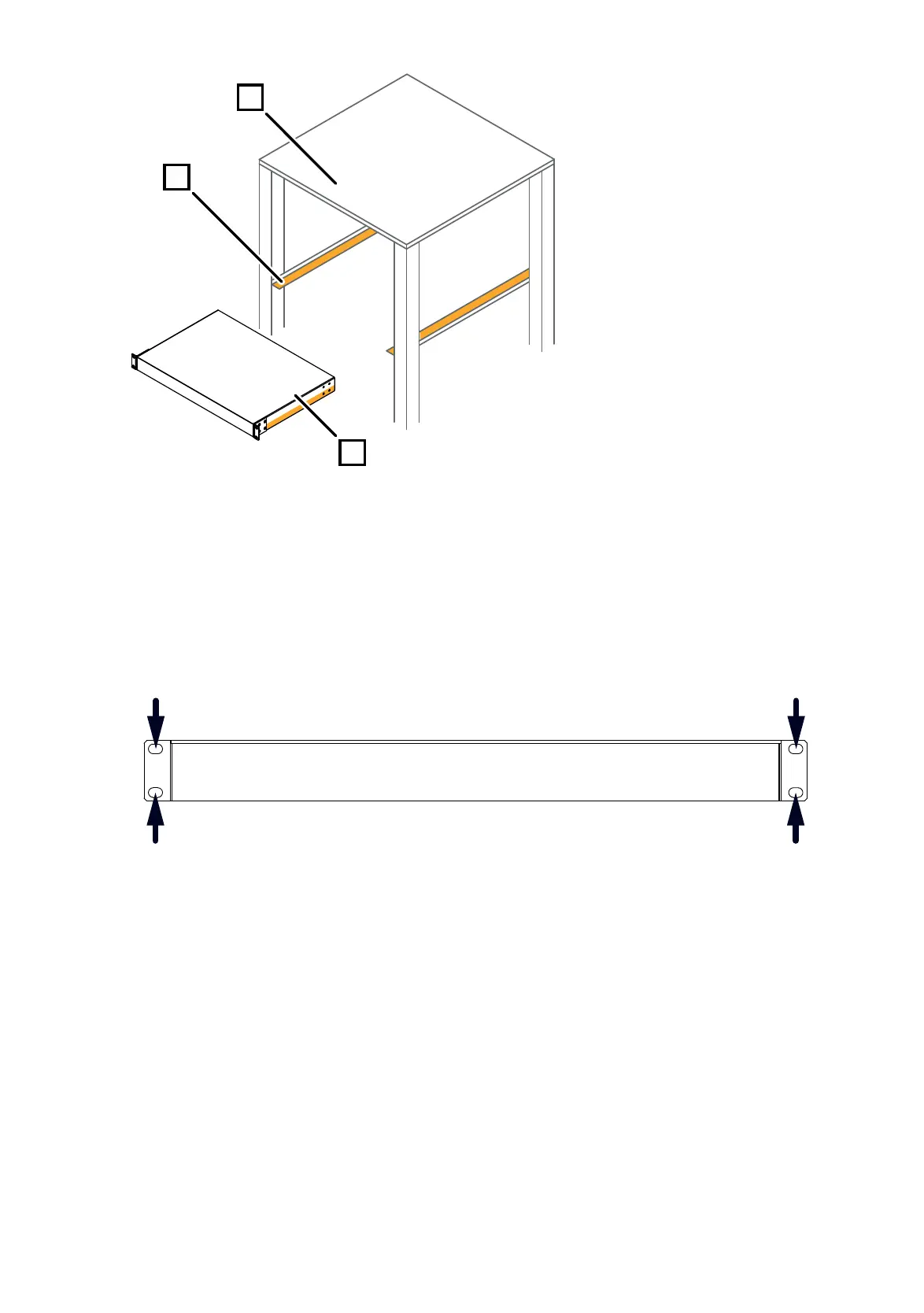

Figure 5: Assembly in a switch cabinet with sliding/mounting rails
1 - MACH1040 device
2 - sliding/mounting rail
3 - 19" switch cabinet
On delivery, 2 mounting brackets are mounted to the sides of the device (see
figure below).
Figure 6: Mounting in the switch cabinet
Fasten the device in the switch cabinet by screwing it in with the mounting
brackets.
Note: When operating the device in an environment with strong vibrations,
you have the option to additionally fasten the device to the switch cabinet
using 2 holding brackets on the back of the device.
You obtain the additional brackets as accessories.
See “Accessories” on page 57.
1
3
2
