Hirschmann MACH1040

48
Installation MACH1040
Release 05 03/2021

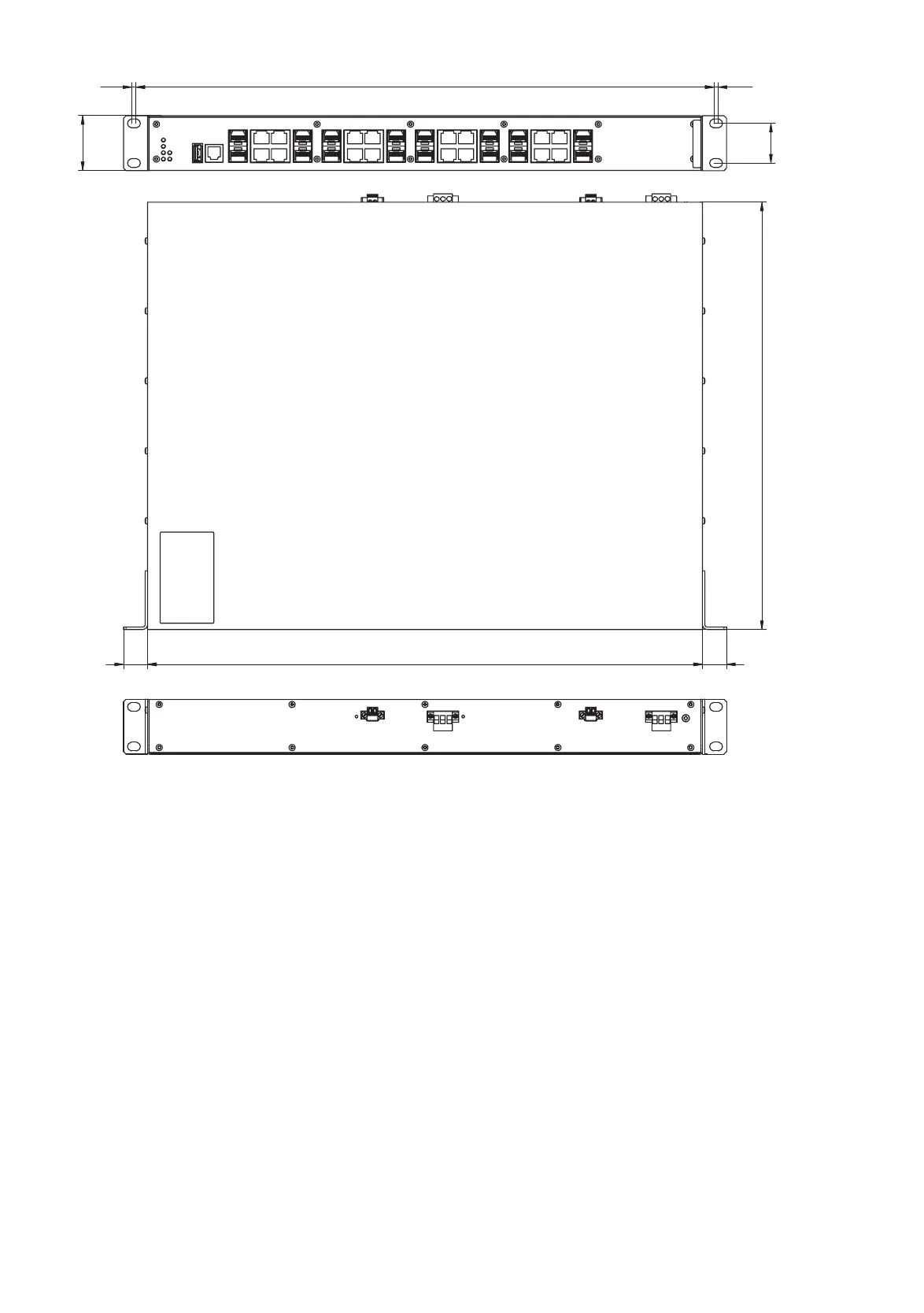

Figure 9: Dimensions for mounting in a switch cabinet
mm
inch
3,3
0.13
3,3
0.13
462,6
17.38
43,9 1.73
31,75
1.25
19,3
0.76
19,3
0.76
444
17.48
342
13.46
