 MM3 media modules

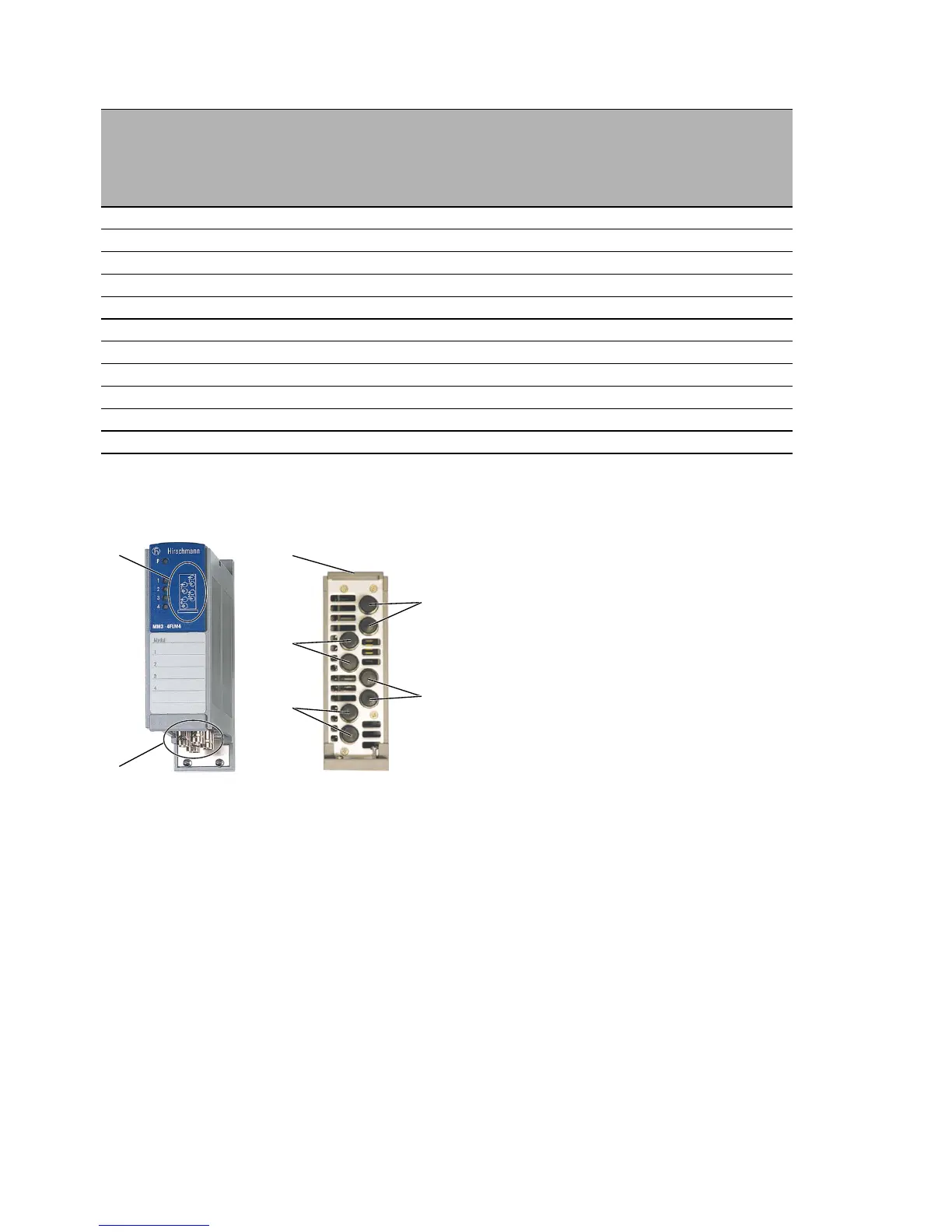

Figure 6: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM3 media modules
Module type
TP ports 10/
100 Mbit/s
F/O port
multi-mode
10 Mbit/s
F/O port
multi-mode
100 Mbit/s
F/O port
single-
mode 1300
nm, 100
Mbit/s
F/O port
single-
mode 1550
nm, 100
Mbit/s
MM3-4TX5 4, M12 – – – –
MM3-4FLM4 – 4, ST – – –
MM3-1FXM2/3TX1 3, RJ45 – 1, DSC – –
MM3-2FXM2/2TX1(-EEC) 2, RJ45 – 2, DSC – –
MM3-2FXM4/2TX1 2, RJ45 – 2, ST – –
MM3-4FXM2 – – 4, DSC – –
MM3-4FXM4 – – 4, ST – –
MM3-1FXS2/3TX1(-EEC) 3, RJ45 – – 1, DSC –
MM3-2FXS2/2TX1 2, RJ45 – – 2, DSC –
MM3-4FXS2 –––4, DSC–
MM3-1FXL2/3TX1 3, RJ45 – – – 1, DSC
Table 2: Media connections per MM3 media modules (number and type)
2
5
6
4
1
3
6
