time ,spring coil produce spring signal ,provided to SCR as the
turnon spring signal ,when reaching the ignition timing,SCR
turnon capacitance began to discharge at the elementary coil
L1 caused instant lower pressure ,while at the secondary coil
caused induce pressure.its instant pressure up to
10000V,sparkover at the clearance of sparkplug(0.6mm).so the
engine ignited
charge system

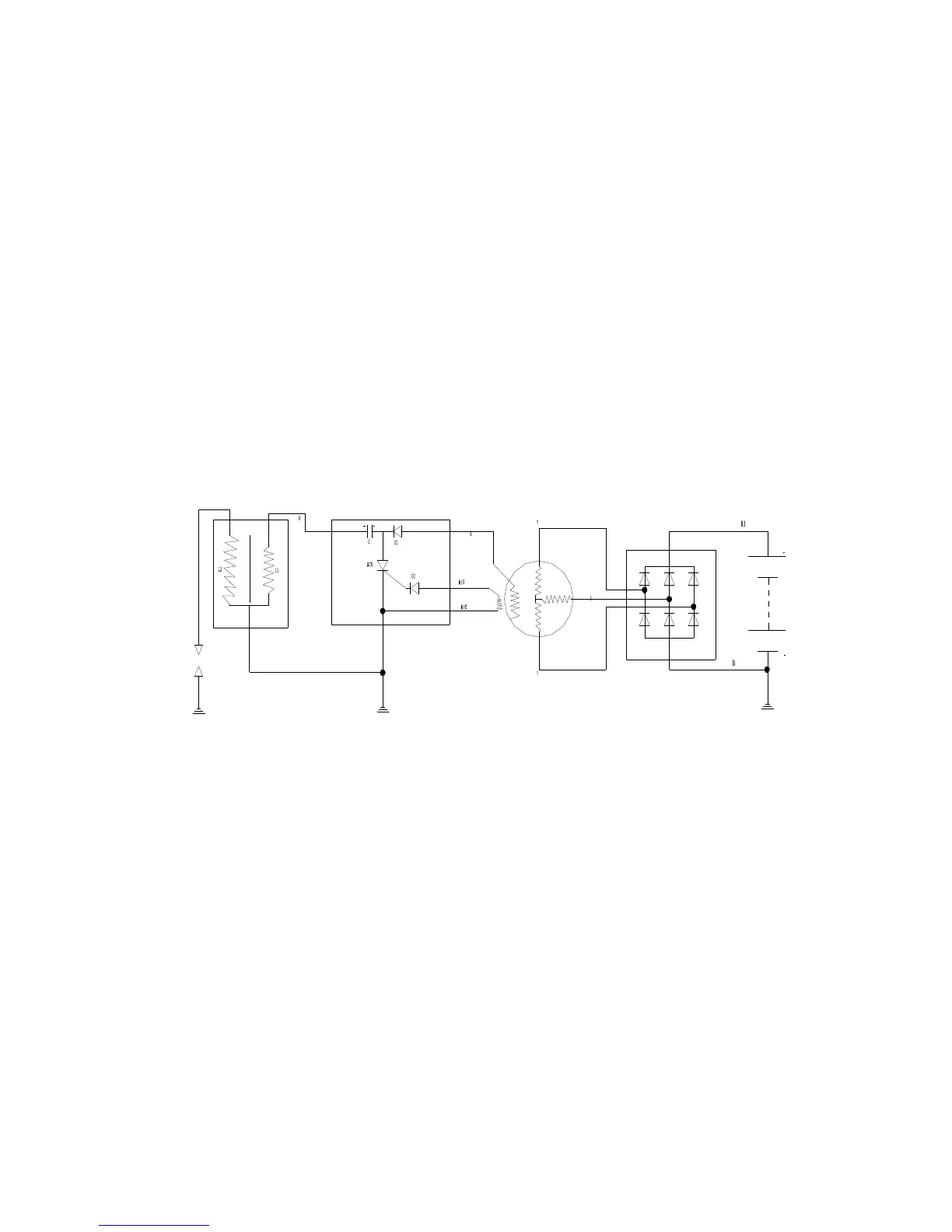

The key diagram of charge elements
5.2 magneto and charge system
the elements of charge:
When the engine running,driven magnet rotor
circumgyrate,so on the stator coil produce alternating current
then induce electromotive force come into to being the
pressure.Through 3 lines Y(yelloe ) output into the
rectifier ,through rectifier into direct current pressure and
