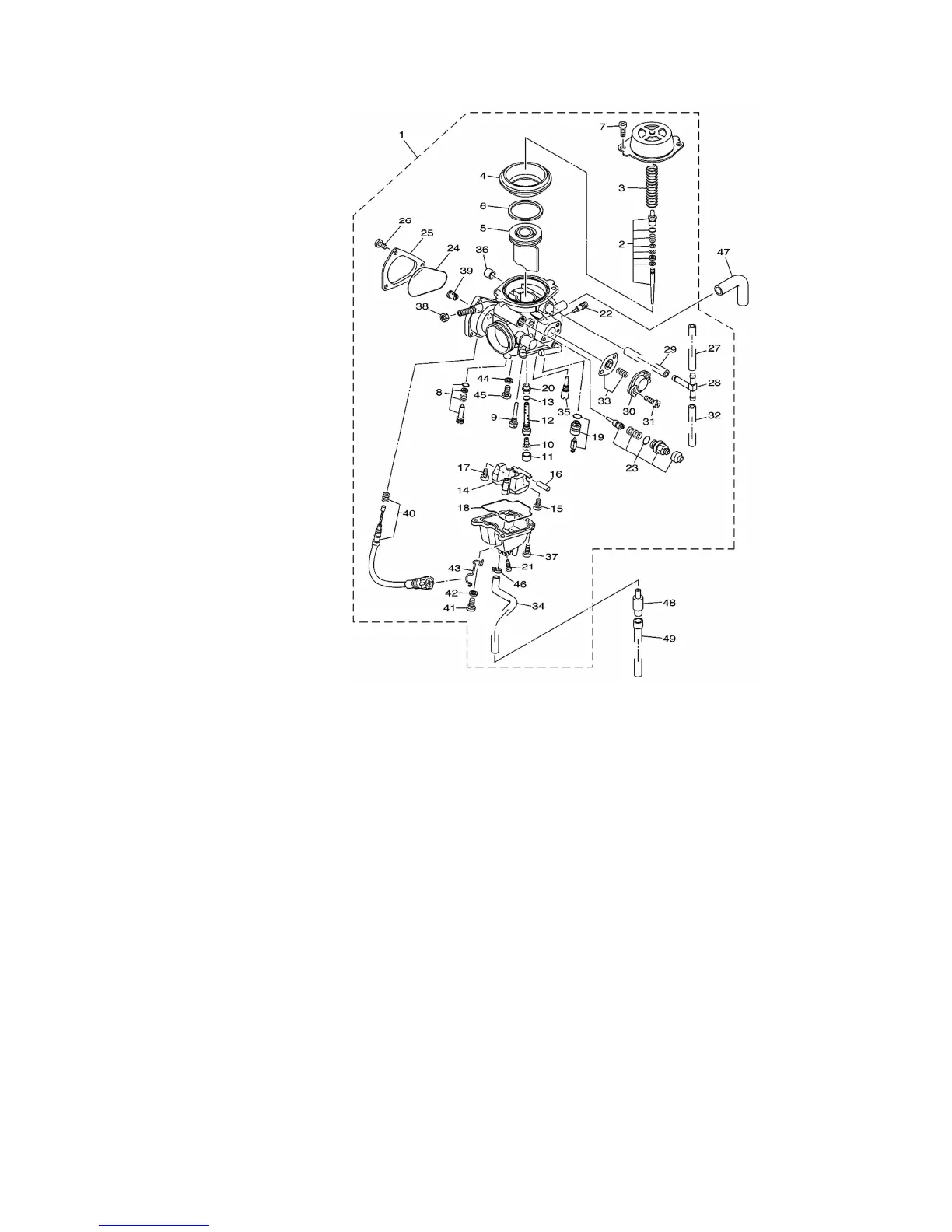

1．carburetor assembly 2.oil needle component 3.Plunger spring 4. Big diaphragm
5.Plunger 6.Diaphragm circlip7.Screw on upper cover 8.Mixture ratio adjusting
screw component。9 .idle metering jet 10.High speed jet 11.Liner 12.Foam pipe
13.0-ring of foam pipe 14.Float 15。Screw M4×816。Float pin 17.Big screw
18.Float seal ring 19.Fuel inlet valve component 20.High speed jet 21.Drain screw
22.idle metering air jet 23.Enriching Plunger component 24.Seal ring of
external shaft cover 25.External shaft cover 26.Screw M4×8 27.Suction pipe A
28.T- plastic pipe 29.Suction pipe B 30.ACV valve diaphragm cover 31.Screw
M4×12 32。Suction pipe C 33.ACV valve diaphragm component 34.Fuel inlet
pipe 35.Starting jet 36.Dust-proof cover 37.Screw 38.Nut 39.acceelerator pull
cablelocating dowel loop 40.adjusting screw component 41.Screw
42．Washer 43.Fixing clamp 44.Washer 45。Screw 46。clip 47.Robber pipe
48.Non-return valve 49.Flood pipe
3.9.2
2 2
2 Inspection and adjusting he
carburetor
