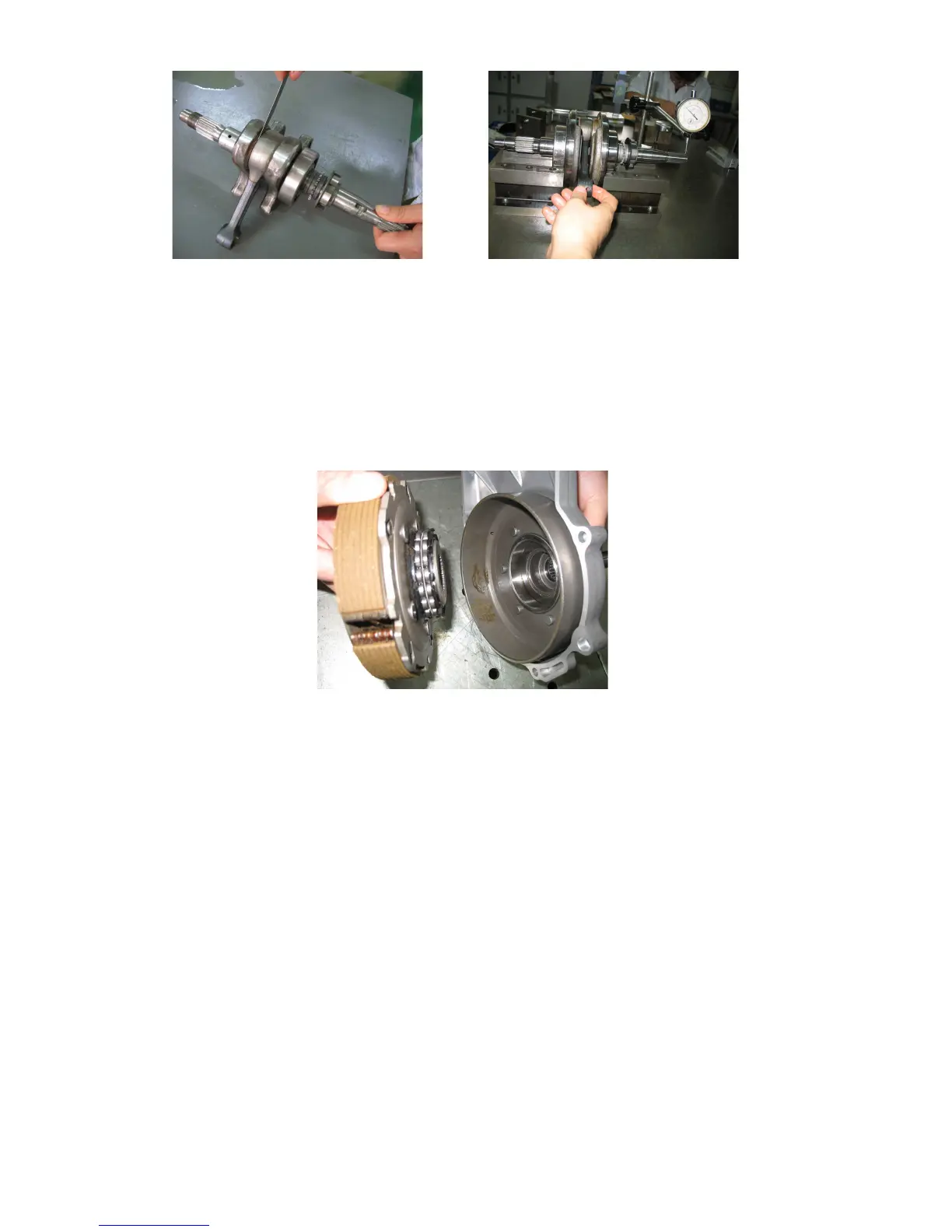

Figure 2-12-1 Figure 2-12-2
2.5
2.52.5
2.5
Inspection of clutch
The wear condition of shoe block and friction plate: See
figure 2-13
Figure 2-13
2.6 Inspection of carburetor
1、Inspect the idle of carburetor
The engine speed should be 1500±150r/min 10 minutes after
starting at normal idle and will not misfire when briskly
accelerate.If not so, rotate the carburetor idle adjusting
screw clockwise to rise the idle , anti- clockwise to lower.When
adjusting is unavailable,check
