r/min 1000 2000 3000
L/min 3.78 7.43 10.89
measure clearance of the top of internal external rotor
Limit value: 0.20mm
2.10
2.10 2.10
2.10 Lubrication of engine

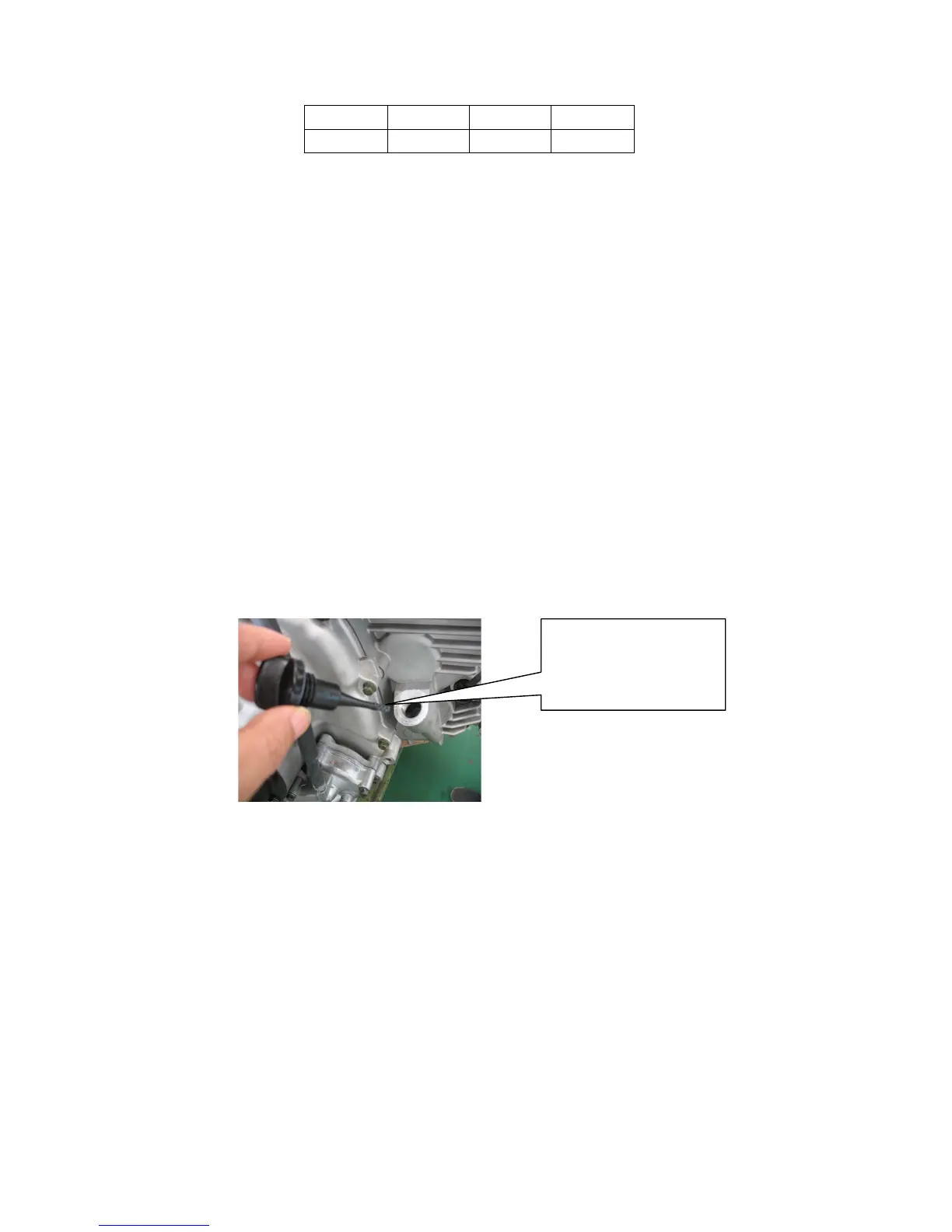

Check the oil level,start the engine and let it running for
a fow minutes to make it heated and lubricated completely ,then
misfire.Unplug the dip stick to do cleaning and dip it into the
oil case again.Then unplug the dip stick and look whether oil
level is lower than the indicator. See figure 2-18
Note:Ensure that the engine is landed by both four wheel
in flat ground.
Figure 2-18
2.
2.2.
2.11
1111
11 Inspection of cylinder head
1. Check whether the spark plug and valve seat is cracked and
whether the cylinder head is out of shape.Examine the
flatness of cylinder head by flat or knife edge gauge and
clearance gauge .
Repairing limit value:
Indicator of oil
