Periodic Service
10-15
Reinstall the drain plug.
4. Add the prescribed amount of oil to the engine
5. After running the engine for a few minutes,
stop the engine and check the oil level again.
Add oil to the prescribed level.
Oil capacity [Filter exchanged] 1L (1.05U.S. qts.)

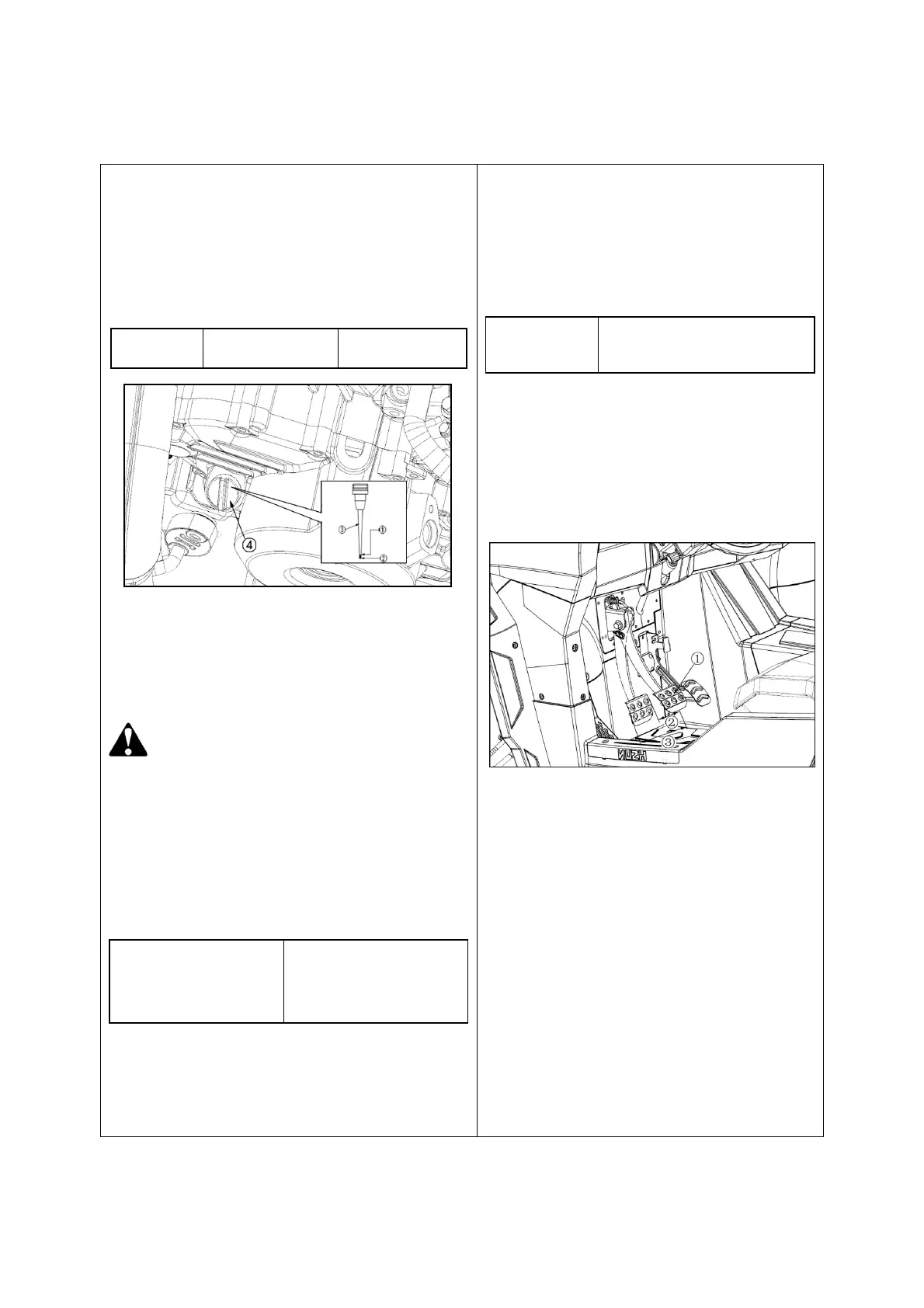

~①② Oil level is acceptable within this range
③ Dipstick④ dipstick location
Checking Brake Pedal
CAUTION
Stop the engine and chock the wheels before
checking brake pedal.
If the free travel is outside of the specifications
contact your local dealer for adjusting the
brake.
◆Checking the brake pedal free travel
Proper brake pedal
free travel
7 to 14mm
(0.3 to 0.6 in.)On the
pedal
1. Release the parking brake.
2. Slightly depress the brake pedal and measure
free travel at the top of the pedal stroke.
3. If brake pedal free travel is outside of the
specifications, contact your local dealer for
adjusting the brake.
◆
Checking the brake pedal stroke
Pedal stroke
Less than 120mm(4.7in.)
On the pedal
1. Release the parking brake.
2. Step on the pedal and measure the pedal
stroke.
If brake pedal stroke is outside of the
specifications, contact your local dealer for
adjusting the brake.
① Brake pedal
② “FREE TRAVEL”③ “PEDAL STROKE”
■Checking Brake Hoses and Lines
1. Check to see that brake hoses and Lines
are not swollen, hardened or cracked.
2. Check the brake hose and brake line
joints for brake fluid leaks.
3. If there is any abnormality, consult your
local dealer for this service.
■Checking Brake Light Switch
1. Park the vehicle on a flat surface and
raise the cargo bed.
To Next Page
