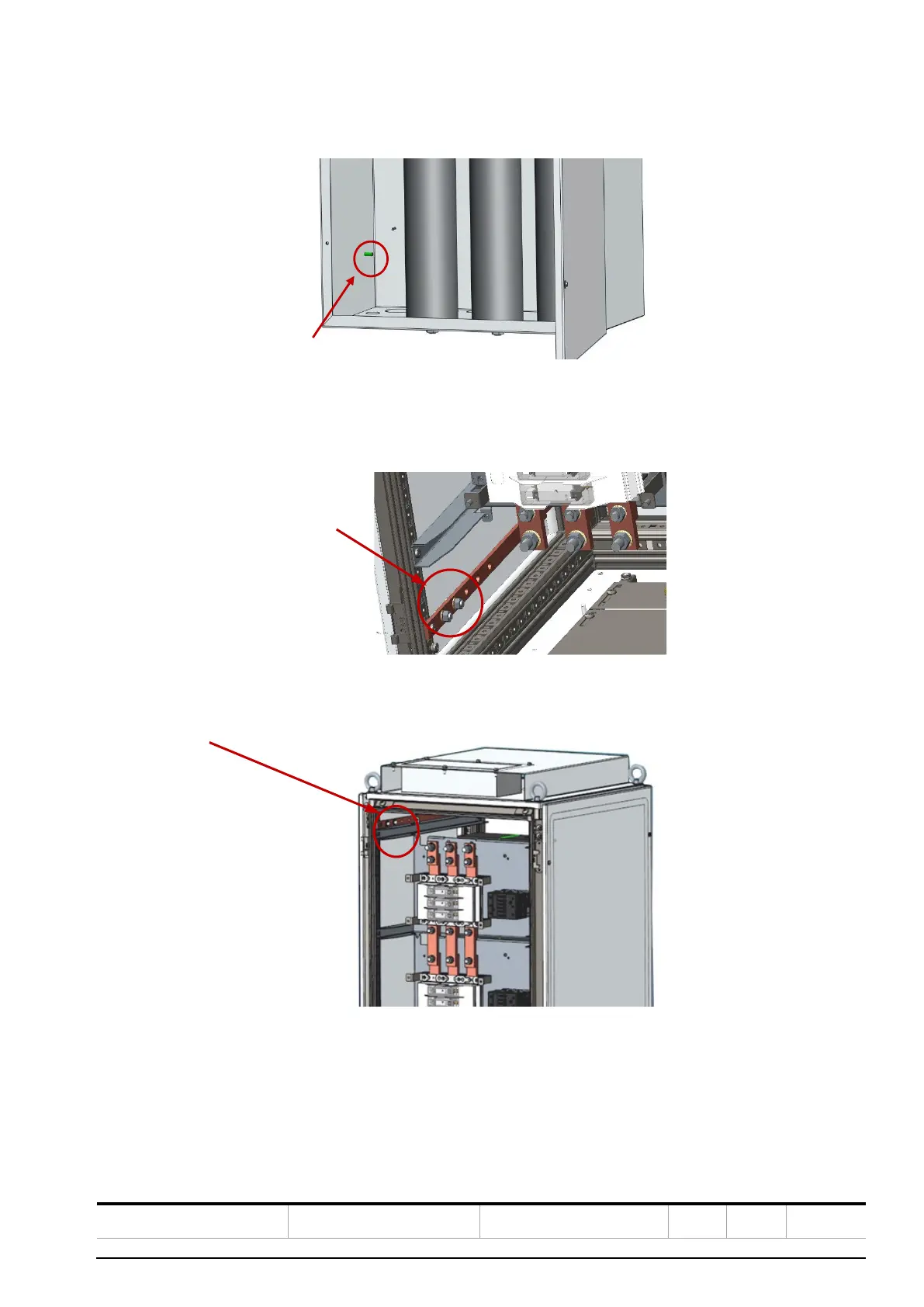

5.4.3. Earth connection
– APCQ-L capacitor bank earth connection: one M6 stud located inside the bank plate next to the lower left corner.
Figure 17: Earth connection in APCQ-L
– APCQ-M and APCQ-R capacitor bank earth connections: two M8 screws located on an earthing bar (either lo-
cated on top or bottom according to top or bottom cable entry).
Figure 18: Earth connection in APCQ-M and APCQ-R for bottom cable entry
Figure 19: Earth connection in APCQ-M and APCQ-R for top cable entry
