6.12. Optional internal lamp
The internal lamp is located top of the cabinet and provides lights to maintenance operator. This option is especially
appreciated within dark technical room.
The lamp can be switched on / off manually with a switch located to the right lateral side

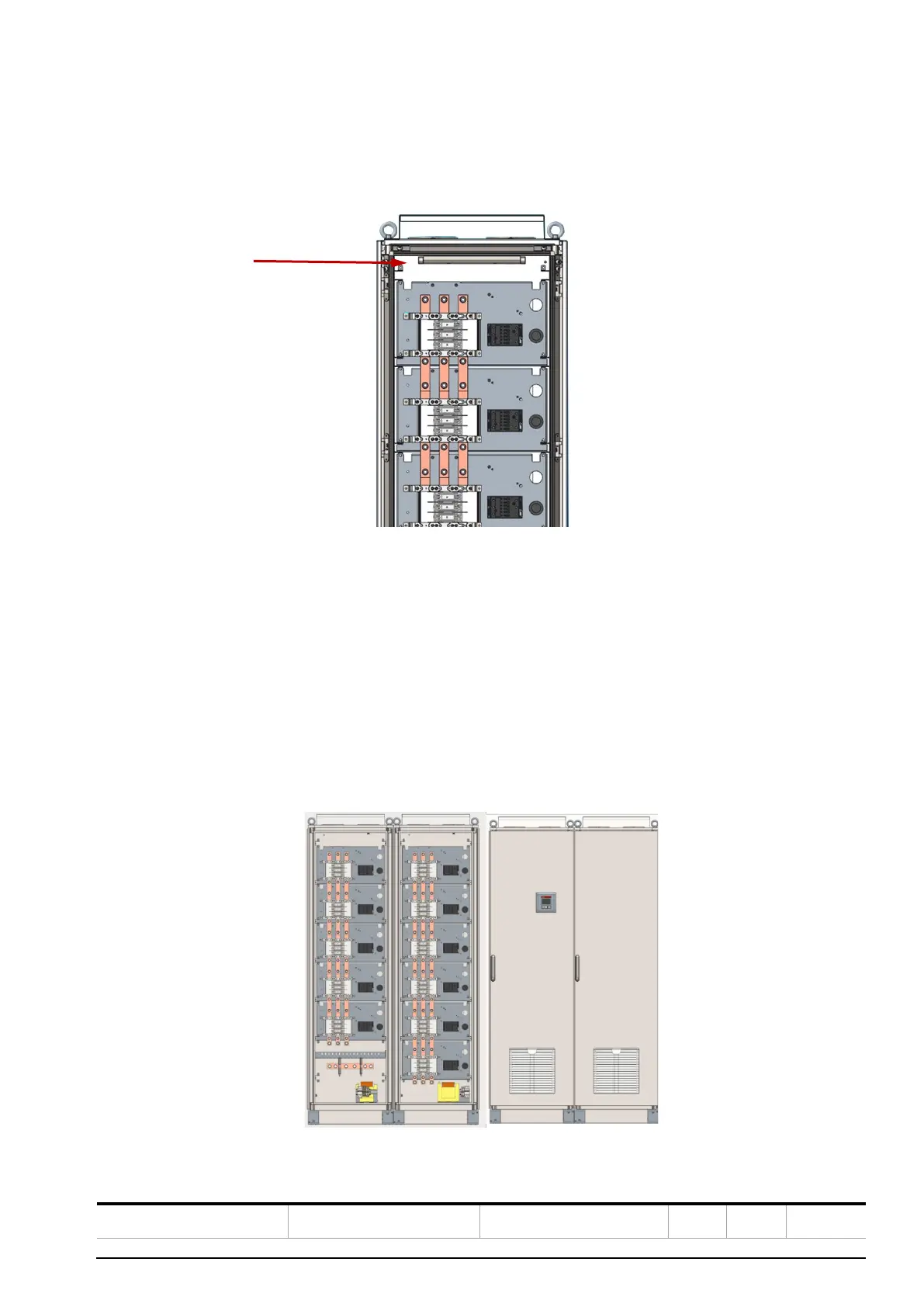

Figure 41 Internal lamp
6.13. APCQ from 350 to 550 kvar (master + slave with one connexion point)
Such optional design is made of one master + one slave cabinet, with one single point of connection in the master
cabinet. There is no need for cable entry cabinet.
Each of the 2 cabinets will be delivery separately and must be mechanically and electrically interconnected on site –
refer to upper § for mechanical connection. All power cables and control cables in between the 2 cabinets are pro-
vided.
Top or bottom entry are possible. We can also add a OT switch or circuit breaker as option.
Figure 43: Master slave configuration
