11. Dimensions and weight
11.1. IP23 standard design
Type
H (mm)
W (mm)
D (mm)
Weight (kg)
APCQ
-L
820
500
290
Max 30 kg
APCQ
-M
2185
610
650
Max 260 kg
APCQ
-R
2185
610
650
Max 550 kg
Cable entry cubicle
2165
410/610
650
Max 180 kg

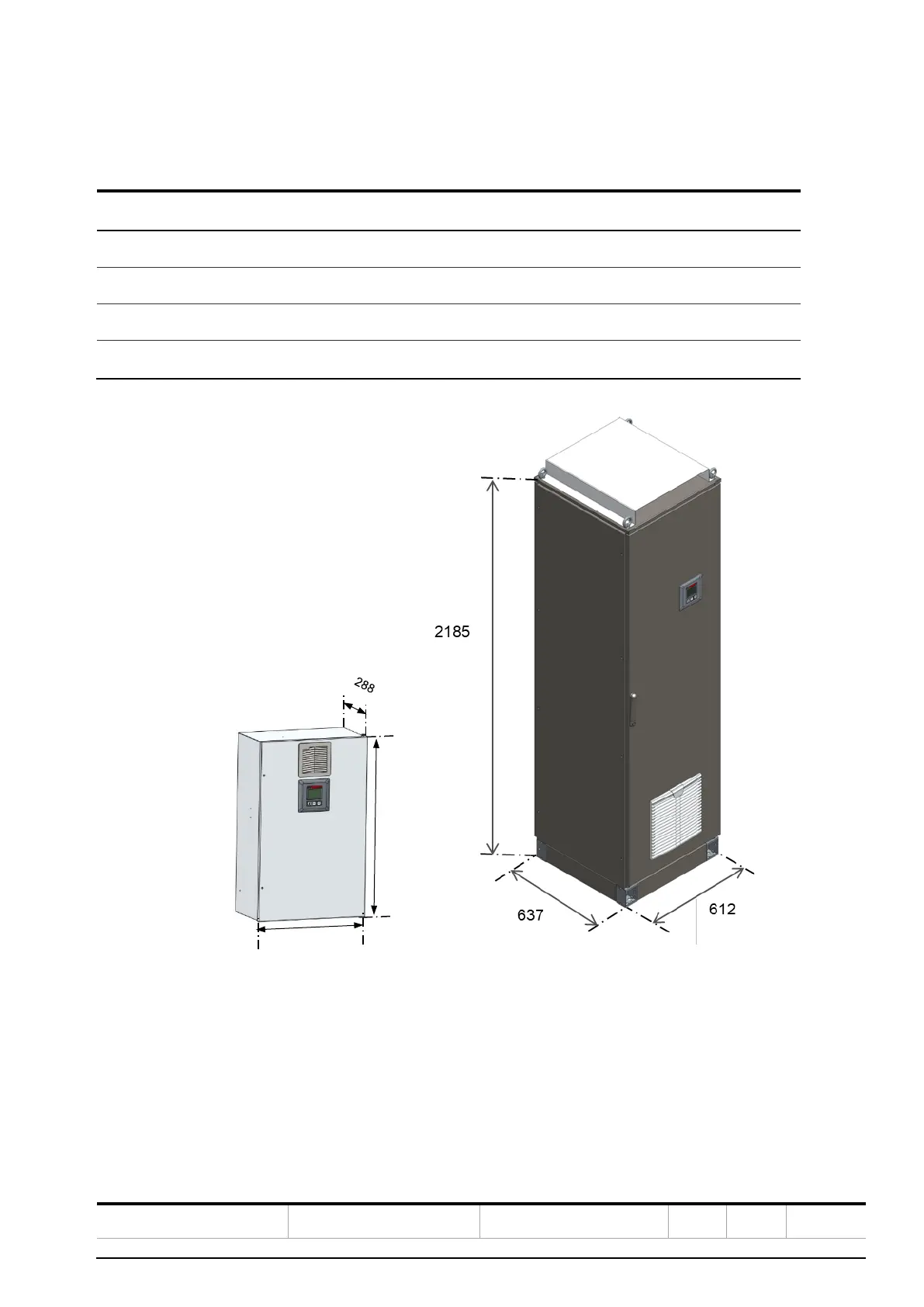

Figure 50: APCQ IP23 dimensions
APCQ-M & APCQ-R
APCQ-L
819
500
