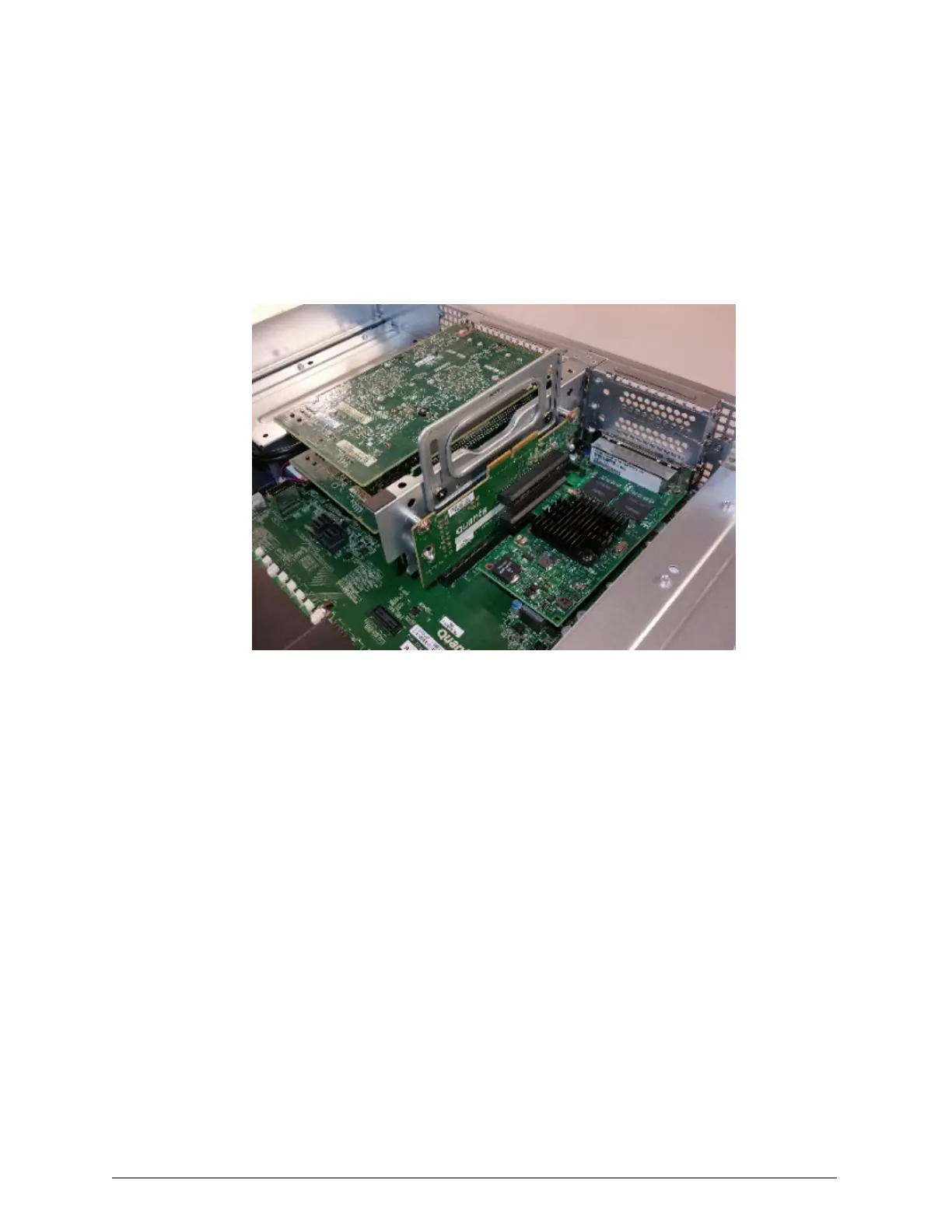

To remove the riser card from the server module:
1. Release the two locking thumbscrews on the rear of the server module.
To release a thumbscrew, while pulling the thumbscrew toward you as
far as it goes, turn it slightly in either direction until it stays in the
extended position.
2. Pull up the handle in the riser card.
3. Using the handle, pull the riser card straight up out of the server
module.
90
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
