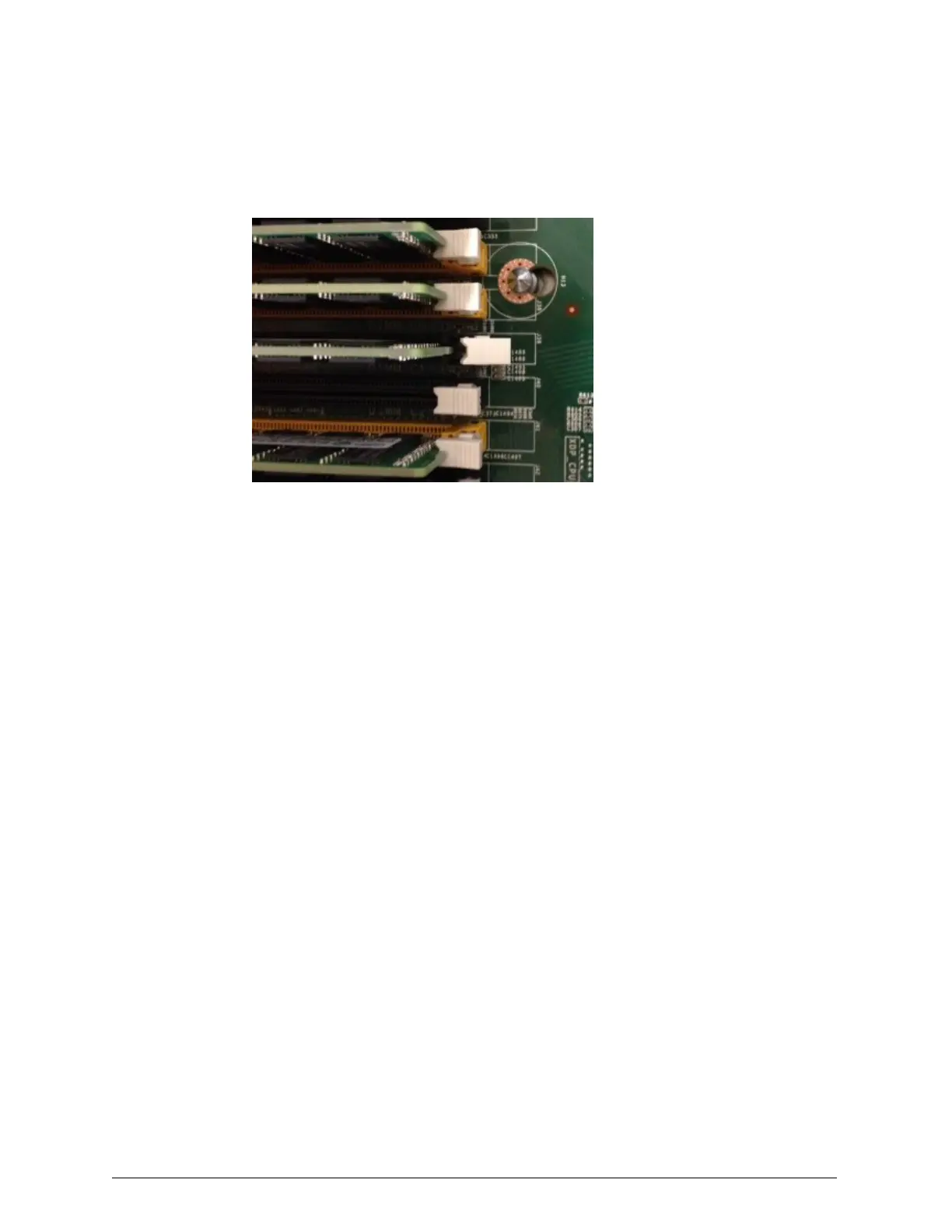

To remove a memory card:
1. In the server module, pull the white tabs at both ends of the memory
card away from the card to release the card.
2. While holding the memory card by the side edges, gently but firmly pull
it straight up out of its slot.
3. Pack the memory card in the applicable packaging.
Step 17n: Remove the heat sinks from the server module
The server module has two heat sinks. The heat sinks sit on top of the CPUs.
You need to remove both heat sinks from the server module.
104
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
