Step 17q: Put the cover back on the server module
To put the cover back on the server module:

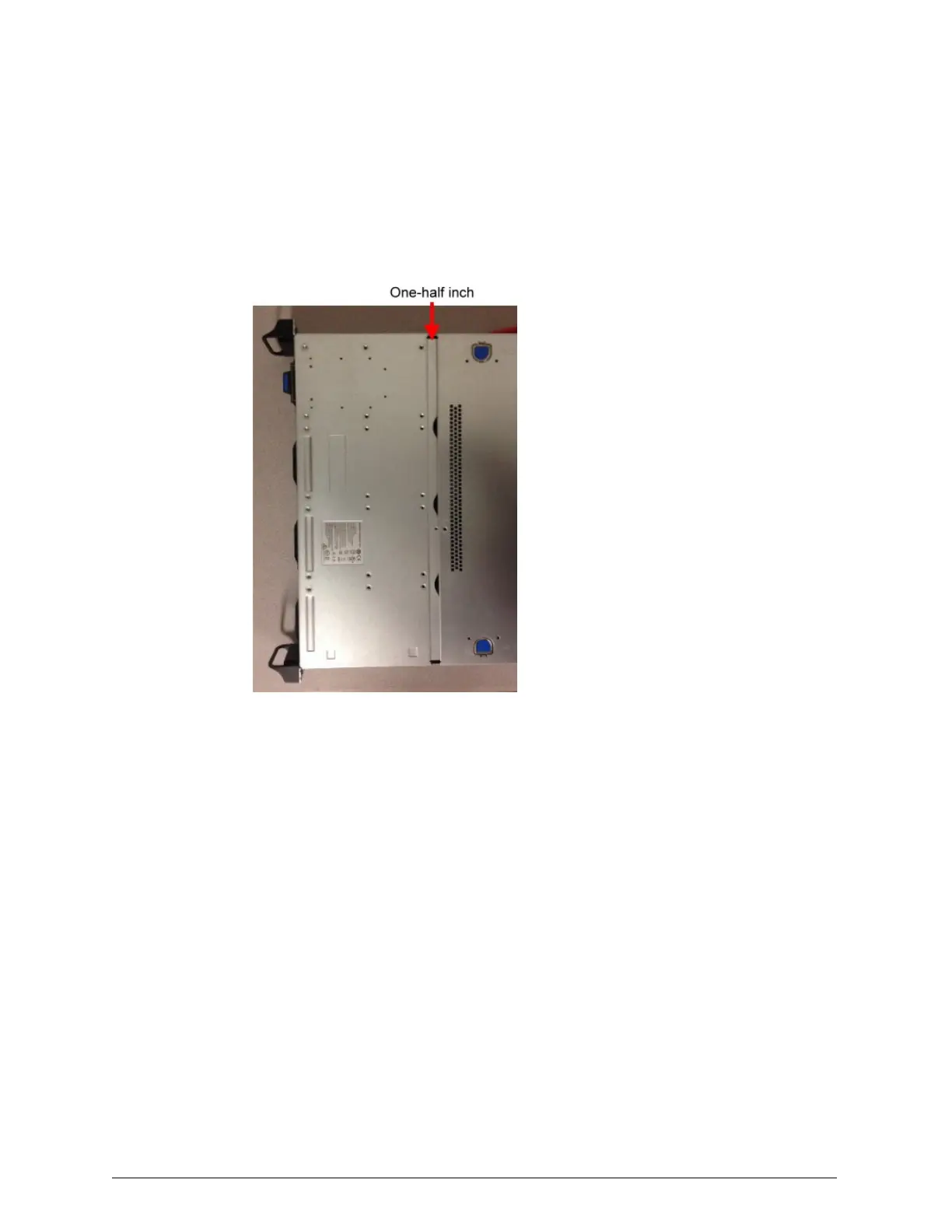

1. Place the server module cover on the server module such that the front
edge of the cover is one-half inch away from the back edge of the cover
plate.
2. Slide the cover forward until it clicks into place.
3. Using the #1 Phillips screwdriver, screw the small silver screw back into
the hole at the center front of the cover.
Step 17r: Pack the server module
To pack the server module:
1. Put the foam packing pieces that came with the server module back on
the server module.
2. Place the server module in the server module carton.
3. Put these items in the server module carton:
¡
The box containing the server module mounting rails
Chapter 4: Refurbishing an HCP S30 Node
113
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
