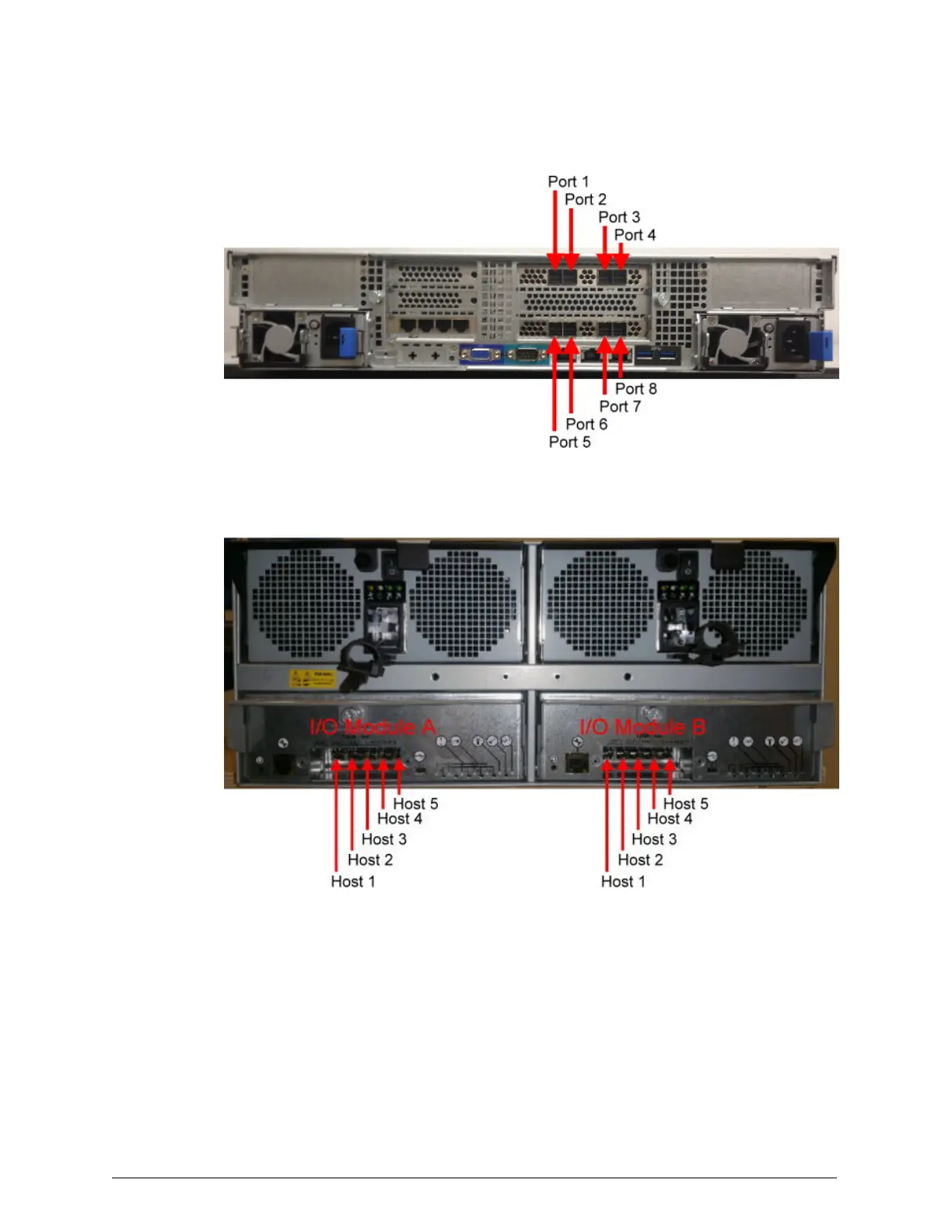

The figure below shows the locations and numbers of the SAS ports on a
server module.
The figure below shows the locations and numbers of the SAS host ports on
an enclosure.
Enclosure numbers matter for SASîcable connections. In an S30 Node that's
returned completely or partially racked, the enclosure numbers are 1
through 4, counting from the bottom up in the rack that contains the server
modules. The enclosure numbers are 9 through 12, counting the enclosures
from the bottom up in the second rack. You can assign any unused
enclosure numbers to any unracked enclosures.
70
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 5: Cable the enclosures
