To remove the server from the rack:

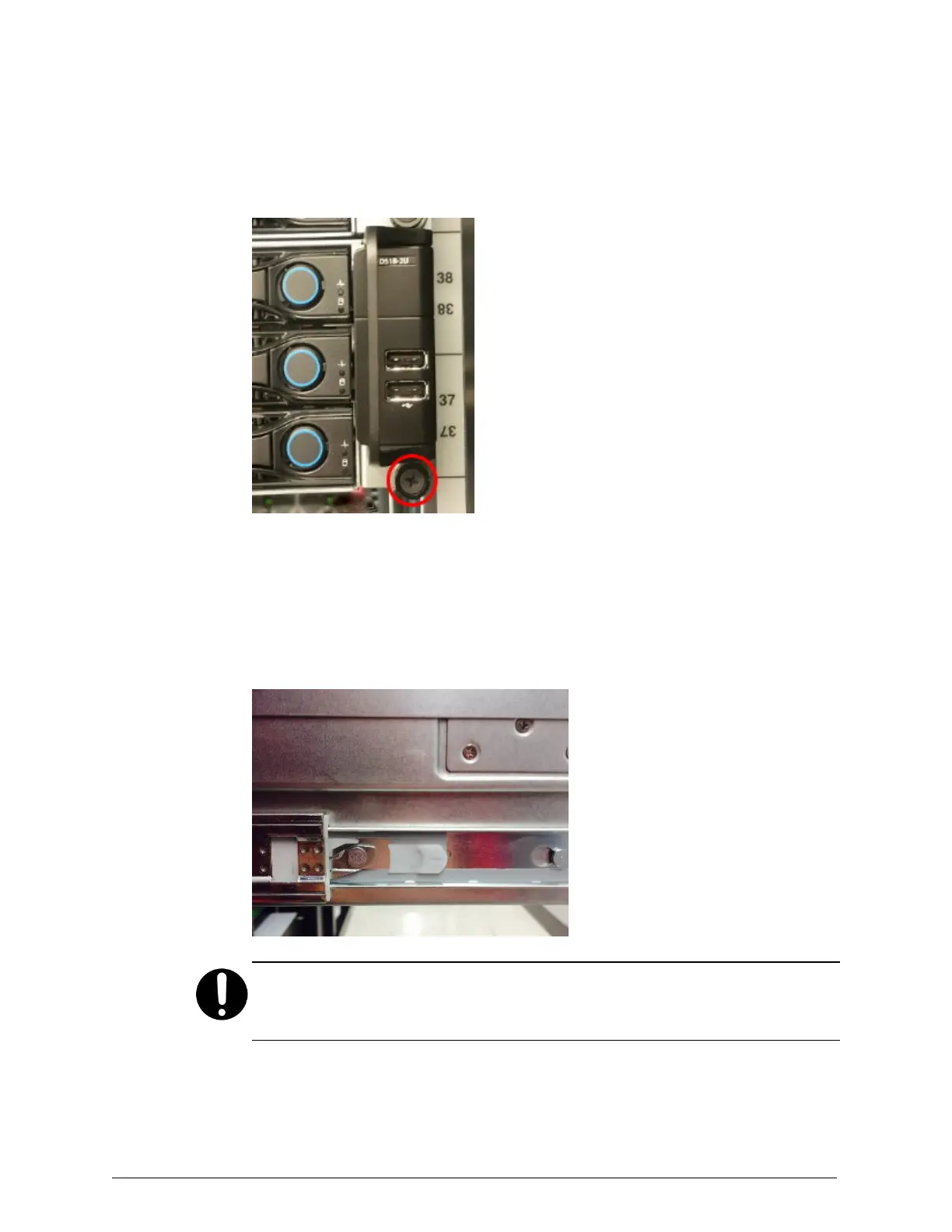

1. Using the #1 Phillips screwdriver, unscrew the black locking screw below
the handle on each side of the front of the server module.
2. Using the handles on both sides of the front of the server module, slide
the module out of the rack as far as the module goes.
3. While pulling forward the white tabs on the inner rails on both sides of
the server module, pull the module forward to release it from the rack.
Then slide the module completely out of the rack.
Important: Be sure to support the full weight of the server module
when you slide the module out of the rack. The server module is too
heavy to be held from the front only.
