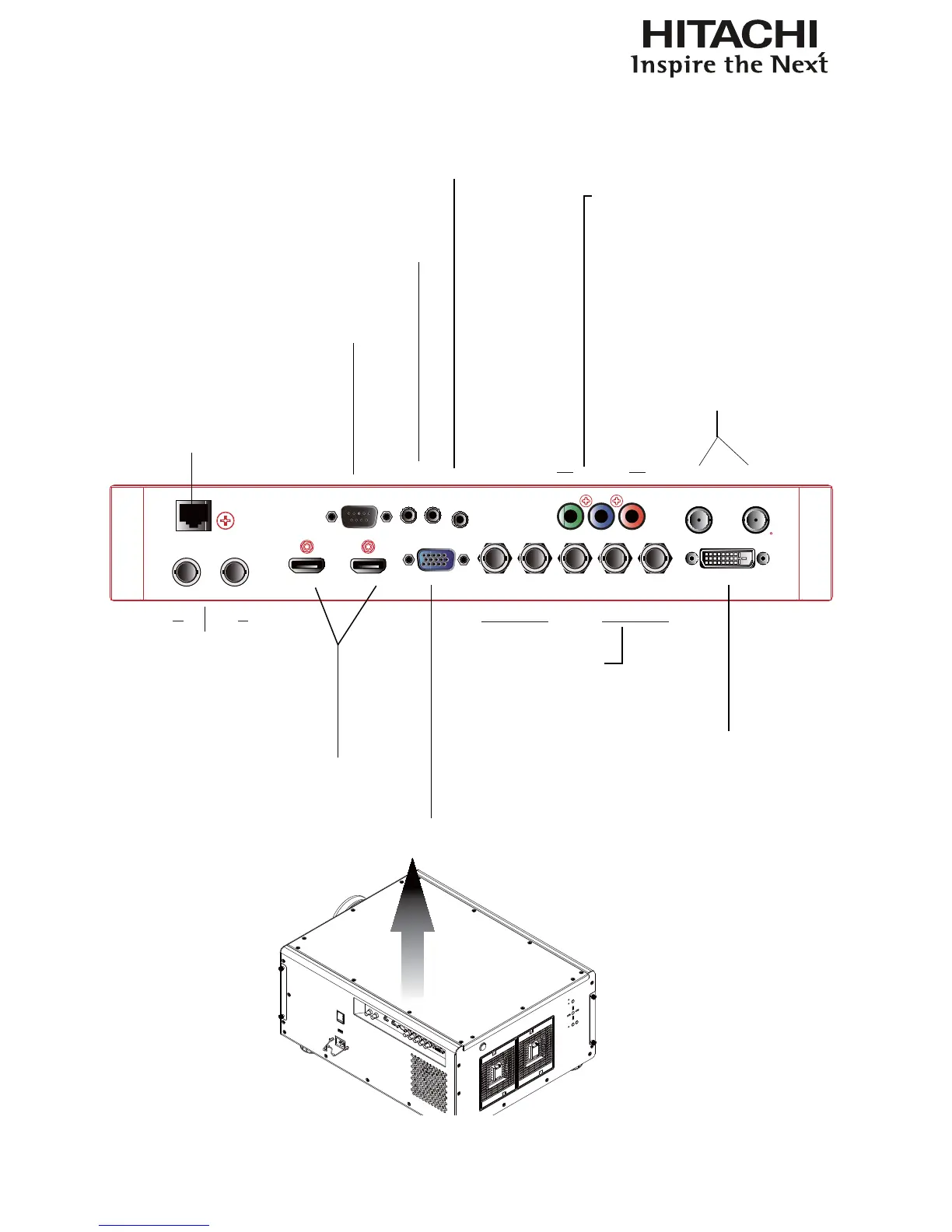

Projector parts and functions
10/100 BASE-T
Connects the projector to
your PC via network to enable
direct control of the projector
on your PC.
COMPONENT 1
YPb Pr
10/100 BASE-T RS-232 wired remote
12V TRIGGER
III
350mA
SYNC IN SYNC OUT
IN OUT
SDI / HDSDI / 3G
COMPONENT 2
G/Y B/Pb R/Pr H VVGA
HDMI
HDMI
STEREO DVI
RS-232
9-pin D-sub socket. Connects your PC or
automatic home theater /control system.
HDMI 1 & 2
HDCP compatible digital image input; connects
to sources using HDMI or DVI.
SDI/HDSDI/3G
IN/OUT
Serial digital interface, use
BNC connects input or output
the image.
SYNC IN
From source equipment for informing which
SYNC OUT
From projector and be connected to the 3D
SYNC wireless transmitter for synchronizing
the projected image with the 3D glasses.
12V TRIGGER
(3.5-mm, mini phone jack)
Offers 12 (+/- 1.5) V of output for 350mA monitor relay
with short circuit protection.
VGA
Standard 15-pin VGA connection socket to connect to RGB, high-
detect the resolution of the input signal.
WIRED REMOTE
Receives input signal from compatible Niles or Xantech IR
repeater systems.
COMPONENT 1
576i/576p/720p/1080i/1080p) component input,
connects to DVD/HD-DVD/BD player, HD set-
top-box or other SD/HD input source.
COMPONENT2
component (YPbPr) image source and
channel (Hs, Vs) source.
IO Control
(Input / Input control panel)
STEREO DVI
Use this DVI dual link to connect to a stereo 3D
source – it is usually a computer with 3D Graphics
card, and 3D applications.
